- Page 1 Part No. MAN465 rev: 000706 by SR Instruments, Inc. Model SR465 In-Floor Platform Scale System OWNERS MANUAL SR Instruments, Inc. 600 Young Street, Tonawanda, NY, 14150 Tel: 888 WEIGH ME Fax: (716)693-5854...
- Page 2 Part No. MAN465 rev: 000706 Table of Contents SECTION I OPERATION and MAINTENANCE System Description and Specifications Page 1 System Operation and button Functions Page 2 SECTION II TECHNICAL SERVICE INFORMATION Calibration and Maintenance Page 4 Care and Cleaning Page 5 Schematic Diagram Page 6 Part List and Component Layout...

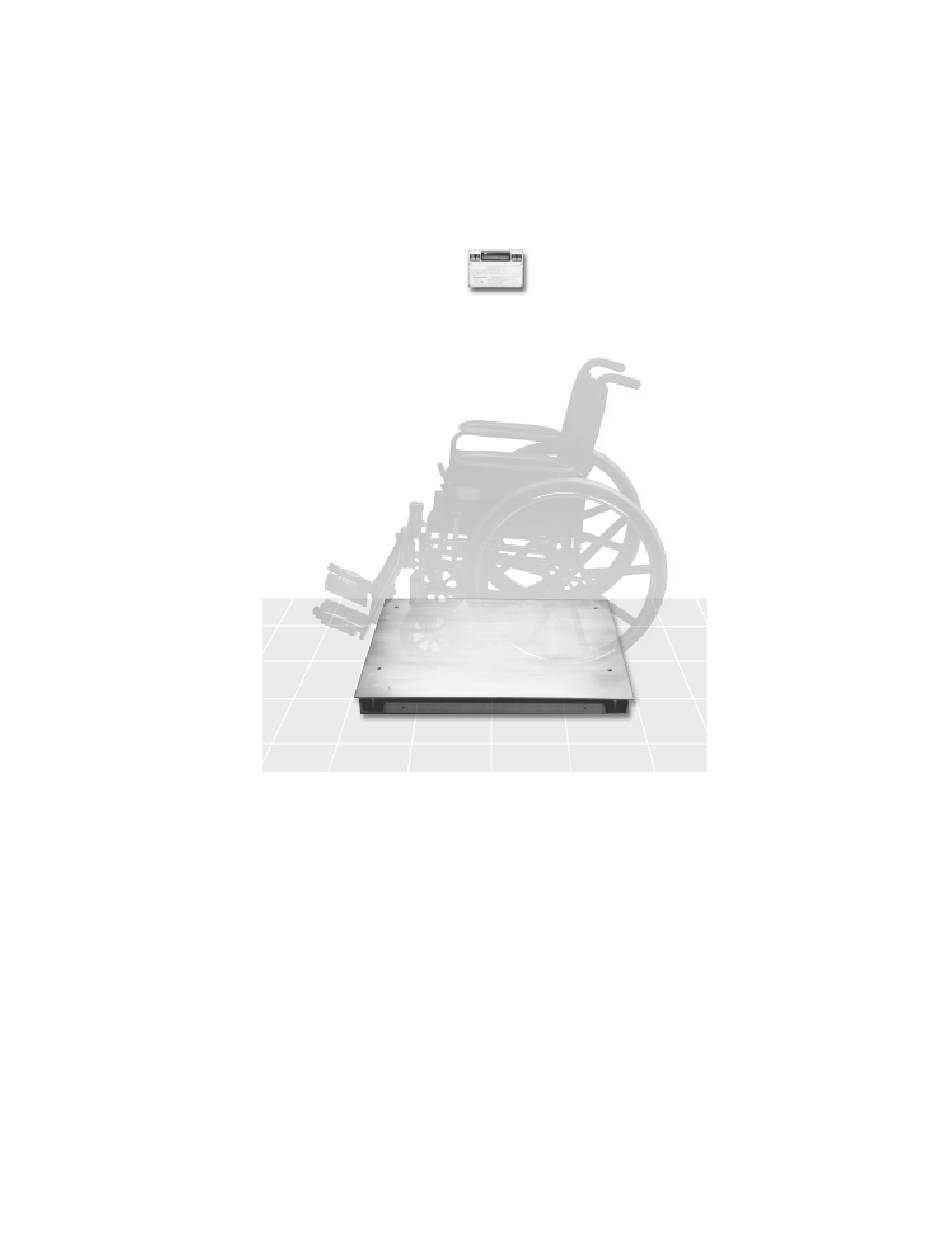

- Page 3 Part No. MAN465 rev: 000706 MODEL SR465 FLOOR SCALE SYSTEM The SR465 is a Precision Digital Scale System specifically designed to be installed in the floor so that the weighing surface is flush. The multi-purpose design offers the versatility of being used as a Stand-On scale for weighing ambulatory patients as well as a Wheelchair / Chair / Walker Scale for semi or non-ambulatory applications.
- Page 4 Part No. MAN465 rev: 000706 MODEL SR465 FLOOR SCALE SYSTEM OPERATION INITIALIZING THE SYSTEM ZERO: Before the patient is positioned on to the scale system you must first set the system zero. This is done as follows; 1. Press the "O" button. The displayed message will indicate " HANDS OFF ". Make sure that nothing is in contact with the scale system while zeroing.
- Page 5 Part No. MAN465 rev: 000706 SECTION II TECHNICAL SERVICE INFORMATION For Sales, Product Information and Technical Assistance Please Call: 1(800)654-6360...
- Page 6 ZERO WEIGH HOLD MODE by SR Instruments, Inc. NOTE: Make sure that nothing is in contact with the scale system during this procedure. Be sure to remove your hands from the system when noting the displayed calibration results. 1. Press and Hold both buttons simultaneously.
- Page 7 Part No. MAN465 rev: 000706 SYSTEM CARE and CLEANING CLEANING and DISINFECTING: The readout housing for the SR465 Scale Systems is primarily made of aluminum. You need only exercise caution when cleaning the display window of the electronics as this is made of clear polyester .
- Page 8 Part No. MAN465 rev: 000706 SCHEMATIC and COMPONENT LAYOUT...
- Page 9 Part No. MAN465 rev: 000706 PARTS LIST Parent Item No_ No_ Description Quantity per Position Position 2 Position 3 SE1857D255 EPCB1857D P.C.BOARD 1857 REVISION "D" SE1857D255 EC347RM .0047MFD #167472J400A(MALLORY) SE1857D255 EC510RF 0.1MFD #SR205C104KAA (AVX) C10,C11, C12,C13, SE1857D255 EC747RE016 47MFD #UVX1V470MPA(NICHICON) SE1857D255 EC710RE016 10MFD #UVX1C100MAA (NICHICON) SE1857D255...
- Page 10 rev: 000706 Part No. MAN465 Model SR465 Platform Installation Procedure NOTE: PIT FRAME OUTSIDE DIMENSIONS- 3" HIGH 38" WIDE 42" LONG Carefully unpackage the scale platform and inspect to ensure there has been no shipping damage. Prepare the pit area to accept the scale platform and readout as described in fig. 1, below. Mount the readout on the wall and run the connector cable down the conduit to the pit as described in fig.
- Page 11 Part No. MAN465 rev: 000706...
- Page 12 Part No. MAN465 rev: 000706...
