Model: SR615i Infant Scale
Operating and Service Manual
Part No.: MAN615i_200629
Page 1 of 18
S
by SInstruments, Inc.

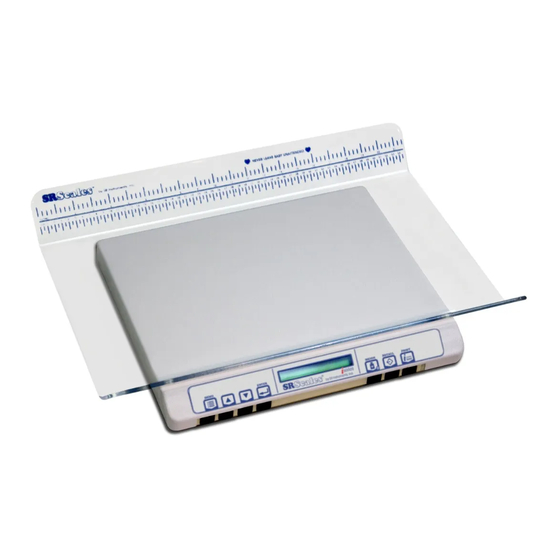

Infant Scale
Operating and Service
Manual
,
SInstruments, Inc.
600 Young Street, Tonawanda, NY 14150
Tel: 716-693-5977
Fax: 716-693-5854 URL:
www.srscales.com
Copyright 2020 SInstruments, Inc.
email:
sri@srinstruments.com
Advertisement
Table of Contents
Related Manuals for SR Instruments SR Scales SR615i
Summary of Contents for SR Instruments SR Scales SR615i
- Page 1 Model: SR615i Infant Scale Operating and Service Manual Part No.: MAN615i_200629 Page 1 of 18 by SInstruments, Inc. Infant Scale Operating and Service Manual SInstruments, Inc. 600 Young Street, Tonawanda, NY 14150 Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com Copyright 2020 SInstruments, Inc. email: sri@srinstruments.com...
-
Page 2: Table Of Contents
Model: SR615i Infant Scale Operating and Service Manual Part No.: MAN615i_200629 Page 2 of 18 TABLE OF CONTENTS TABLE OF FIGURES ........................2 PACKING CHECKLIST - MODEL SR615I .................3 ASSEMBLY............................4 REPLACEMENT PARTS AND ACCESSORIES ................5 SYSTEM DESCRIPTION AND INTENDED USE ...............5 MAINTENANCE AND CLEANING ....................6 STORAGE AND TRANSPORTATION ..................7 SPECIFICATIONS...........................7... -
Page 3: Packing Checklist - Model Sr615I
Model: SR615i Infant Scale Operating and Service Manual Part No.: MAN615i_200629 Page 3 of 18 PACKING CHECKLIST - Model SR615i Infant Scale DESCRIPTION QUANTITY SCALE BASE 1 ea SCALE BASE COVER 1 ea (One of the following cradle choices included.) CRADLE - CLEAR ACRYLIC OPEN END 22”... -
Page 4: Assembly
Model: SR615i Infant Scale Operating and Service Manual Part No.: MAN615i_200629 Page 4 of 18 ASSEMBLY STEP 1: Unpack the scale system and check parts PART NAME against the PACKING CHECKLIST. If there are any Scale Base Cover missing or damaged parts, please call the Service Clear Acrylic Cradle Hotline 1-800-654-6360. -
Page 5: Replacement Parts And Accessories
Model: SR615i Infant Scale Operating and Service Manual Part No.: MAN615i_200629 Page 5 of 18 REPLACEMENT PARTS and ACCESSORIES Part # Description 22” Open End Cradle PF1051-1 PF1051-2 30” Open End Cradle SRC-100 Stainless Steel Mobile Cart with two (2) Locking Wheel Casters FB142058FN 1/4-20 x 5/8 Flat Nylon White Screw SR8327... -
Page 6: Maintenance And Cleaning
Model: SR615i Infant Scale Operating and Service Manual Part No.: MAN615i_200629 Page 6 of 18 MAINTENANCE and CLEANING Exercise caution when cleaning the display window and pediatric cradle as both can be scratched by abrasive cleaners. Mild soap and water is recommended for general cleaning. CLEANING To clean the pediatric cradle and display / user interface: ... -
Page 7: Storage And Transportation
Model: SR615i Infant Scale Operating and Service Manual Part No.: MAN615i_200629 Page 7 of 18 STORAGE and TRANSPORTATION If storing this equipment for periods longer than three (3) months, remove the batteries. To maintain proper operation of this instrument, storage and transport conditions should not vary outside the following conditions: Relative Humidity 0% to 85%, Ambient Temperature 14°F to 122°F (-10°C to +50°C). -
Page 8: Button Functions
Model: SR615i Infant Scale Operating and Service Manual Part No.: MAN615i_200629 Page 8 of 18 BUTTON FUNCTIONS Figure 4: Button Display ZERO / WEIGH Press and hold to zero. The display will read “WT = 0.00 Lb”. This is used to zero the system before placing the patient on the scale system. - Page 9 Model: SR615i Infant Scale Operating and Service Manual Part No.: MAN615i_200629 Page 9 of 18 BUTTON FUNCTIONS (Cont’d) MENU Press Menu to edit setup. Setting the UNITS: Use UP or DOWN arrow buttons to select “Lb”, “Kg” “Lb/oz” or “g” Press ENTER to save changes. Setting ON TIME: Use UP or DOWN arrow buttons to adjust the “ON TIME”.
-
Page 10: Battery Replacement
Model: SR615i Infant Scale Operating and Service Manual Part No.: MAN615i_200629 Page 10 of 18 BASIC SYSTEM OPERATION (Cont’d) WEIGHING Position the patient on the scale. Press the ZERO/WEIGH button. The weight stable indicator “ ” flashes on the display. When the weight is stable, the weight stable indicator remains solid. -
Page 11: Theory Of Operation
Page 11 of 18 THEORY OF OPERATION SR Instruments patient weighing systems are digital scales. Strain-gauge force cells convert the force of an applied weight into an analog signal. This signal is amplified by an operational amplifier and converted to a digital signal by an analog to digital converter. The digital signal is transferred to a micro-controller where it is filtered, converted to appropriate units and displayed on a liquid crystal display. -
Page 12: Calibration
Model: SR615i Infant Scale Operating and Service Manual Part No.: MAN615i_200629 Page 12 of 18 CALIBRATION NOTE: Ensure that nothing is in contact with the scale system during this procedure. Remove hands from the system when noting the displayed calibration results. CHECKING CALIBRATION STEP 1: Select two (2) known calibrated weights, traceable to NIST. -
Page 13: Figure 7: Calibration Switch Location
Model: SR615i Infant Scale Operating and Service Manual Part No.: MAN615i_200629 Page 13 of 18 CALIBRATION (Cont’d) IMPORTANT CALIBRATION CHECK - Qualified service personnel only should perform this procedure. Load cells have no user serviceable components and should not be tampered with for any reason. - Page 14 Model: SR615i Infant Scale Operating and Service Manual Part No.: MAN615i_200629 Page 14 of 18 CALIBRATION (Cont’d) STEP 3: Select two (2) known calibrated weights, traceable to NIST. NOTE: The first weight should be at least 20.00 pounds (half of the maximum scale capacity). The second weight should be less than half of the first weight.
-
Page 15: Configuring Send Button
Electronic Medical Records (EMR) / Electronic Health Records (EHR) technology is supported by the i-series scales from SR Instruments. The EMR/ EHR software is not included with scale. There are many different EMR/ EHR software available and the connectivity of the scale to the software requires the services of a professional. -
Page 16: Warranty
SR Instruments, Inc.’s part, and it neither assumes nor authorizes any other person to assume for SR Instruments, Inc. any other liabilities in connection with the sale of said articles. In no event shall SR Instruments, Inc. -
Page 17: Notes
Model: SR615i Infant Scale Operating and Service Manual Part No.: MAN615i_200629 Page 17 of 18 NOTES SInstruments, Inc. 600 Young Street, Tonawanda, NY 14150 Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com Copyright 2020 SInstruments, Inc. email: sri@srinstruments.com... - Page 18 Model: SR615i Infant Scale Operating and Service Manual Part No.: MAN615i_200629 Page 18 of 18 By SInstruments, Inc. Precision & Technology in Perfect Balance SInstruments, Inc. 600 Young Street, Tonawanda, NY 14150 Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com Copyright 2020 SInstruments, Inc. email: sri@srinstruments.com...
