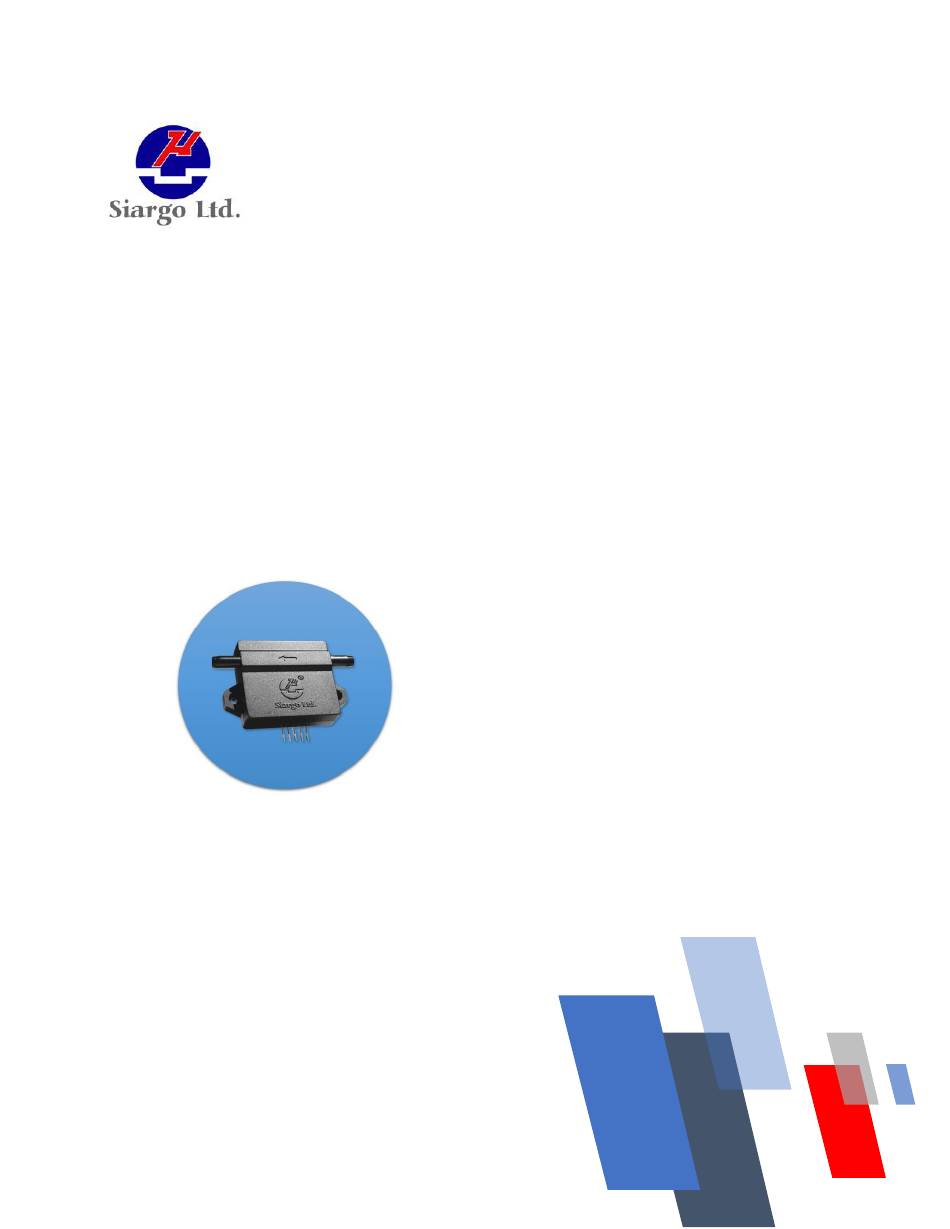

- Page 1 FS4001 User Manual VB.0.1 MEMS mass flow sensors Sold in North America by: Servoflo Corporation 75 Allen Street Lexington, MA 02472 www.servoflo.com/info@servoflo.com 781-862-9572 ©2021 Siargo Ltd.
- Page 2 Copyright 2021 and Liability Disclaimer Siargo Ltd. and its subsidiaries reserve the right to change the specifications and/or descriptions without prior notice. Siargo and its subsidiaries shall not assume any inaccuracy or errors in this manual. For further information and updates, please visit www.Siargo.com.
- Page 3 • Do not apply for any unknown or non-specified gases that may damage the product. www.Siargo.com FS4001 User Manual...
-
Page 4: Table Of Contents
8.2.2. Excessive humidity or condensation ..................... 16 8.2.3. Metrology verification ........................17 9. Warranty and Liability ..........................18 10. Service contact and information ........................ 20 Appendix I: Sensor evaluation kit ........................21 Appendix II: Document history ........................22 www.Siargo.com FS4001 User Manual... -
Page 5: Overview
1. Overview All contact information can be found at the end of this manual. This manual provides essential information for the FS4001 series of mass flow sensors for testing, leakage detection, instrumentation as well as medical applications. The product performance, maintenance, and troubleshooting, as well as the information for product order, technical support, and repair, are also included. -
Page 6: Receipt / Unpack Of The Products
Please note that the sensor has a pinout that is designed to be directly placed onto a printed circuitry board. Therefore, the power and data cable is an option that will not come with the order automatically. www.Siargo.com FS4001 User Manual... -
Page 7: Knowing The Products
Note: Digital I C and RS232 share the ports, please specify the model at the time of order. 3.2 Power and data pinout description Table 3.2: FS4001 pin assignment. DEFINITION SCL, I C clock / RX, RS232 GND, ground VCC, power supply, 8~24Vdc Analog output, 0.5~4.5 Vdc... -
Page 8: Mechanical Dimensions
3.3 Mechanical dimensions Figure 3.3.1. FS4001 mechanical dimensions. 4. Installation Do not open or alter any part of the product, which would lead to malfunction and irrecoverable damage. For the installation, the product comes with a barbed connector, soft pipe connection is normally applied. -
Page 9: Digital Communication Descriptions
Note: 1. The I C address is set to Bit 7~Bit 1. E.g. if the I C address is 1 (0000 001x), the write address will be 0x02 (0000 0010) and the read address will be 0x03 (0000 0011). www.Siargo.com FS4001 User Manual... -
Page 10: I 2 C Interface Read/Write Sequences
5.1.3 I C interface read/write sequences www.Siargo.com FS4001 User Manual... -
Page 11: Rs232 Communication Protocol
None Flow control: None The FS4001 has three options in communication: A. Data transmission mode: This allows the user to read the data continuously from the product: 1) Send 0x9d to the sensor and receive 0x9d from the sensor; 2) Send 0x56 to the sensor and receive 0x56 from the sensor;... - Page 12 The sensor will return a single instant flow rate value via RS232. The data format is: ffffffff IN USER MODE..\n\r where the value represents an instant flow rate of fffff.fff sccm. And the "IN USER MODE..\n\r" means the sensor stops data transmission. www.Siargo.com FS4001 User Manual...
-
Page 13: Product Selection And Order Information
For large quantities, please contact the sales office, distributors, or sales representatives. Siargo is making every effort to ensure the quality of the products. In case of questions and/or product supports, please contact the customer service listed at the end of the document. -
Page 14: Product Performance
Maximum flow change per second 2.5x of the full scale Storage temperature -20~70 °C Calibration Air @ 20°C, 101.325kPa Compliance RoHS; REACH IEC 61000-4-2;4;8 Note: 1. Calibration with real gas is optional. Please contact the manufacturer for further information. www.Siargo.com FS4001 User Manual... -
Page 15: Analog Output
7.2. Analog output Figure 7.2.1. Typical analog output. www.Siargo.com FS4001 User Manual... -
Page 16: Technical Notes For The Product Performance
This would result in a very unreliable data output. Please filter or other tools to prevent this situation to occur when using this product. www.Siargo.com FS4001 User Manual... -
Page 17: Metrology Verification
If such cases are present, please contact the manufacturer for further solutions. For temperature and humidity measurement, because of the small package space, the response of the humidity could be slower than the specified. For additional information, please contact the manufacturer. www.Siargo.com FS4001 User Manual... -
Page 18: Warranty And Liability
The products returned under warranty to Siargo shall be at the user or purchaser's risk of loss and will be returned, if at all, at Siargo's risk of loss. Purchasers or users are deemed to have accepted this limitation of warranty and liability, which contains the complete and exclusive limited warranty of Siargo. - Page 19 (5) Any damages incurred by the incorrect usage of the products; (6) Siargo does not provide any warranty on finished goods manufactured by others. Only the original manufacturer's warranty applies;...
-
Page 20: Service Contact And Information
10. Service contact and information Siargo Ltd. is making every effort to ensure the quality of the products. In case of questions and or product supports, please contact customer service at the address listed below. We will respond to your request in a timely fashion and work with you toward your complete satisfaction. -
Page 21: Appendix I: Sensor Evaluation Kit
Appendix I: Sensor evaluation kit Siargo offers a sensor evaluation kit, including a digital data converter, USB data cable, and User Application software, that allows the user to evaluate the product performance on a Microsoft Windows-based computer. The user can read and visualize the flow rate of the product, obtain the totalized values, and save the data for further analysis. -
Page 22: Appendix Ii: Document History
Sequences and 2.4.3 I2C Commands description). ➢ Revision A.9 (September 2017): o Added I2C and Its connection, protocol (1.1 Performance Specifications, 2.1 Pin Definition, 2.2 Pin Description, 2.4 I2C Communication Protocol, 4.1 Sensor Selection); o Added the revision history (Appendix). www.Siargo.com FS4001 User Manual...
