- Page 1 EVOLUTION OF POWER MEAN MACHINE SUBWOOFERS MW10D2 / MW10D4 / MW12D2 / MW12D4 MW15D2 / MW12SQD4...

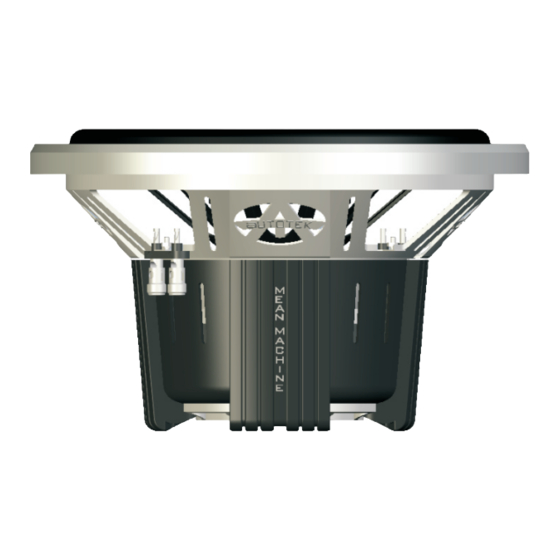

- Page 2 100oz Double-Stack Magnet Assembly Single Flat Nomex Spider With Woven Tinsel Leads Polypropylene Cone With Woven Honeycomb Support Body Nickel Plated Push & Insert Speaker Terminals High Strength ABS Motor Cover Heat Dispersing Ported Nickel Plated Back Plate Ultra Ridged Stamped Steel Basket...
-
Page 3: Enclosure Materials
SUBWOOFER INSTALLATION AND WIRING DIRECTIONS Enclosure Materials Typically, 5/8” or 3/4” MDF (Medium Density Fiber Board) is best for most applications. 3/4” MDF is recommended. Enclosure Build Materials Connecting joints need to be glued and screwed to ensure no air escapes and joints do not separate under high pressure. Mitered and rabbit joints also help to ensure the enclosure joints are secure. -
Page 6: Glossary Of Terms
The resonant frequency of a vented system The half-power (-3dB) frequency of a loud speaker enclosure Qtc The Q of a loud speaker at Fc in a closed box, considering both it’s electrical and mechanical resistance. QL The Q of a vented box, resulting from all box losses. - Page 7 MW10D4 / MW12D4 / MW12SQD4 DVC 4-Ohms PARALLEL 2-Ohms utotek utotek PARALLEL COILS / PARALLEL SUBS utotek utotek SERIES COILS / PARALLEL SUBS utotek utotek SERIES 8-Ohms utotek utotek 1-Ohm utotek utotek 4-Ohms utotek utotek...
- Page 8 MW10D2 / MW12D2 / MW15D2 PARALLEL 1-Ohms utotek utotek PARALLEL COILS / PARALLEL SUBS utotek SERIES COILS / PARALLEL SUBS utotek DVC 2-Ohms 0.5-Ohms utotek 2-Ohms utotek SERIES 4-Ohms utotek utotek utotek utotek utotek utotek...
- Page 9 Subwoofer Dimensions Model A - Cut Out Diameter MW10 9.1” / 230mm MW12 11” / 280mm MW15 13.8” / 350mm MW12SQ 11.1” x 11.1” 282 x 282mm B - Mounting Depth 6.2” / 157.48mm 6.9” / 175.26mm 8” / 203.2mm 7.3”...
- Page 10 As the manufacturer of Maxxsonics, MB Quart, Autotek, Crunch and Hifonics car audio products, Maxxsonics USA Inc. Warrants to the original consumer purchaser the amplifier to be free from defects in material and workmanship for one (1) Year from date of purchase.
