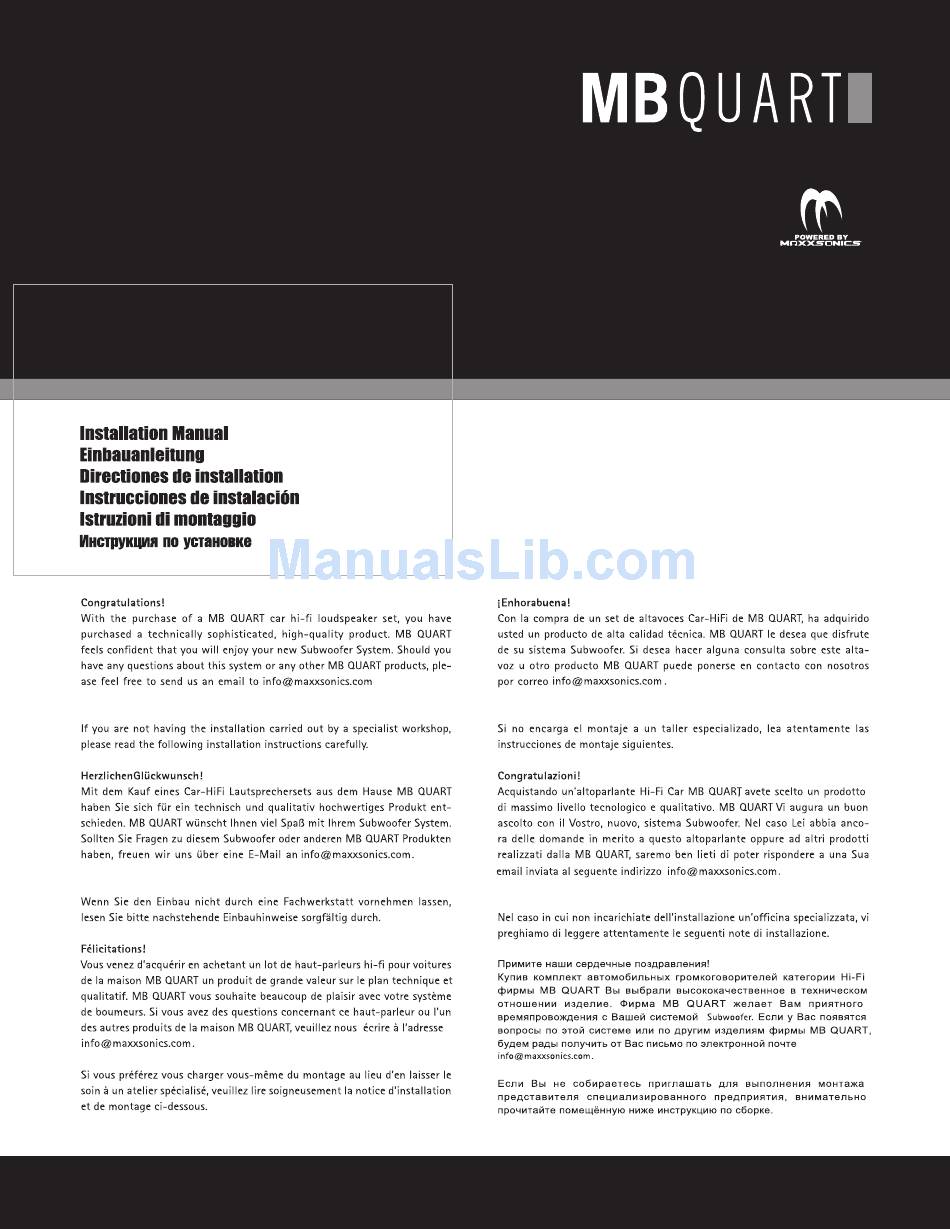

- Page 1 MAXXSONICS USA, INC 1290 Ensell Road Lake Zurich, Illinois 60047 USA E-Mail: info@maxxsonics.com Website: www.maxxsonics.com www.mbquart.com REFERENCE SUBWOOFER RLP204 / RLP254 / RLP304...
- Page 2 RLP204 / RLP254 / RLP304 The diagram below shows a screw pattern for mounting your subwoofer. It is very important that you follow this pattern as indicated or your cosmetic trim ring will not fit properly.
- Page 3 RLP204 / RLP254 / RLP304...
- Page 4 RLP204 8.43” / 214mm 0.57” / 14.38mm 2.77” / 70.3mm 7.17” / 182mm...
- Page 5 RLP204 T/S PARAMETERS Mms: 76.26 g BL: 11.04 Tm Fs: 41.5 Hz Vd: 0.172 liters QTS: 0.83 Qms: 4.66 Qes: 1.01 Xmax: 8.15 mm Vas: 12.19 liters Dia: 163.98 mm Re: 6.2 ohms no: 0.081 % NomZ: 7.44 ohms Cms: 192.42um/N Sd: 0.021 sq.m...
- Page 6 RLP254 10.31” / 262mm 0.67” / 17.1mm 2.93” / 74.3mm 9.06” / 230mm 25.4 cm / 10” 25.4 cm / 10” 25.4 cm / 10” 25.4 cm / 10” 25.4 cm / 10” 25.4 cm / 10”...
- Page 7 RLP254 T/S PARAMETERS Mms: 130.81 g BL: 14.137 Tm Fs: 33.95 Hz Vd: 0.294 liters QTS: 0.819 Qms: 5.44 Qes: 0.963 Xmax: 8.65 mm Vas: 27.55 liters Dia: 208 mm Re: 6.9 ohms no: 0.108 % NomZ: 8.28 ohms Cms: 168.01 um/N Sd: 0.034 sq.m 1W/1M: 82.4 dB (coils in series)
- Page 8 RLP304 12.28” / 312mm 0.958” / 24.33mm 3” / 76.2mm 10.59” / 269mm...
- Page 9 RLP304 T/S PARAMETERS Mms: 174.42 g BL: 15.38 Tm Fs: 29.13 Hz Vd: 0.424 liters QTS: 0.837 Qms: 6.928 Qes: 0.952 Xmax: 9 mm Vas: 53.98 liters Dia: 245 mm Re: 7.05 ohms no: 0.135 % NomZ: 8.46 ohms Cms: 171 um/N Sd: 0.047 sq.m 1W/1M: 86 dB (coils in series)
- Page 10 Maxxsonics Limited Warranty As the manufacturer of Maxxsonics, Autotek, Crunch, MB Quart and Hifonics car audio products, Maxxsonics USA Inc. Warrants to the original consumer purchaser the amplifier to be free from defects in material and workmanship for one (1) Year from date of purchase.
