Assembly Instructions
Model:
Description:
Part Number:
Assembly Time:
Before you beign, read thought these instructions and check that
all parts are present. Please note that MB Quart cannot assume any
responsibility for damage resulting from incorrect installation.
No.
1
Subwoofer Enclosure
2
Subwoofer
3
Extension Harness
No.
1
Subwoofer Enclosure
2
Subwoofer
3
Extension Harness
4
NA2-400.1
1
10mm Socket
2
Rachet
3
T20 Torx Bit

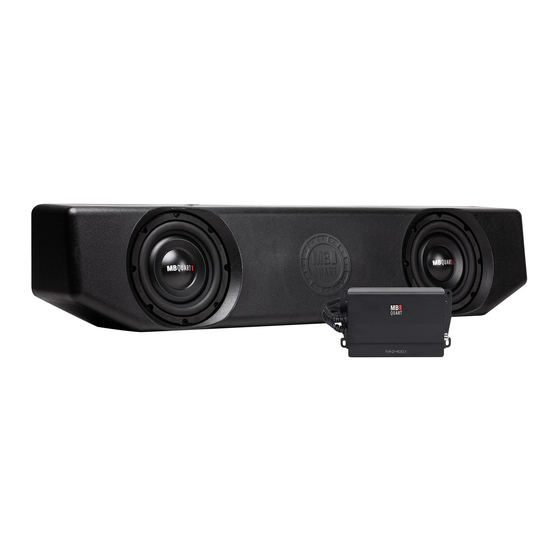

Jeep JL (Wrangler) & JT (Gladiator)
Subwoofer Install
MBQJ-SUBA-1 & MBQJ-SUB-1
120 Minutes (2 Hours)
MBQJ-SUB-1 Parts List
Component Name
MBQJ-SUBA-1 Parts List
Component Name
Page 1 of 5
Qty
1
2
2
Qty
1
2
2
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MB QUART MBQJ-SUBA-1
Summary of Contents for MB QUART MBQJ-SUBA-1
- Page 1 120 Minutes (2 Hours) Assembly Time: Before you beign, read thought these instructions and check that all parts are present. Please note that MB Quart cannot assume any responsibility for damage resulting from incorrect installation. MBQJ-SUB-1 Parts List Component Name...
- Page 2 Disassembly ● Remove (4)10mm bolts securing the under seat storage compartment May need to remove rubber insert to gain access to bolts ● Remove jack Page 2 of 5...
- Page 3 Subwoofer Installation ● Cut a small hole in the carpet (as pictured) to pass the subwoofer extension harness through going toward the outside of vehicle along door seal toward the passenger seat area. ● Install jack ● Connect subwoofer enclosure wiring to subwoofer extension harness.
- Page 4 Subwoofer Installation ● Reusing the (4) 10 mm bolts holding the storage compartment, secure the subwoofer enclosure ● Connect the subwoofer speaker wires to the subwoofer and repeat the process for other subwoofer ● Secure the subwoofer to the enclosure with (8) High-Low screws using a T-20 Torx bit Page 4 of 5...
- Page 5 This equipment complied with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. MBQJ-SUBA-1 / MBQJ-SUB-1 REV 01 Page 5 of 5...
