- Page 1 User Manual Gateway PROFINET IRT Slave DO0413R00 • 3/31/2022...
-
Page 2: Table Of Contents
5.3 Exchanging Data Cyclically........................18 5.4 Exchanging Data Acyclically (Records) ....................21 5.4.1 I&M Data ............................ 22 5.4.2 Diagnosis Alarm......................... 23 6 Integrated Servers............................24 6.1 FTP-Server............................24 6.2 Webserver............................. 24 6.3 Firmware Update........................... 25 7 Technical Data ............................. 36 Gateway PROFINET IRT Slave... -
Page 3: General Information
1.1 Disclaimer © 2022 KUNBUS GmbH, Denkendorf (Germany) The contents of this document have been prepared by KUNBUS GmbH with the utmost care. Due to technical developments, KUNBUS GmbH reserves the right to change or replace the contents of this document without prior notice. You can always obtain the current version of the user manual on our homepage: www.kunbus.de... -
Page 4: Customer Service
– damage is caused by technical modification to the product (e.g. soldering). 1.5 Customer Service If you have any questions or suggestions concerning this product, please do not hesitate to contact KUNBUS GmbH Heerweg 15 C 73770 Denkendorf Germany support@kunbus.com www.kunbus.com Gateway PROFINET IRT Slave... -
Page 5: Safe Use
The modular gateway component is part of a gateway that can be combined with another modular gateway component or a RevPi Core/Connect from KUNBUS as required. The modular gateway component is designed to forward data from a specific protocol to a controller or other gateway component. -
Page 6: Important Safety Instructions
Operating temperature -20 °C up to +55 °C Humidity 93% (non-condensing) NOTICE This device is designed for indoor use only. If you use the device outdoors, it may be destroyed. a) Use the device indoors only. Gateway PROFINET IRT Slave... -
Page 7: Data Safety
Check our website regularly for the latest software security alerts and updates for your prod- uct. Install the security updates provided by us. If you do not follow these instructions, it is possible that your module data may be manipulated. Gateway PROFINET IRT Slave... -
Page 8: Overview

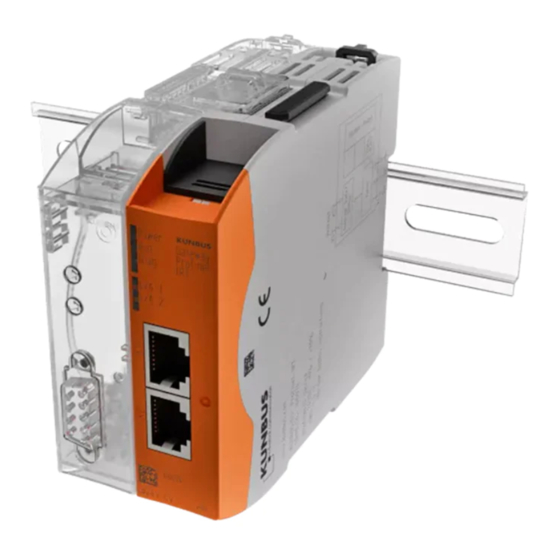

3 Overview 3.1 Functionality The KUNBUS Gateway is a protocol converter. It allows communication between networks with different protocols. Illustration 1: Functionality as a slave A Gateway consists of 2 gateway components that master one specific protocol each. You can combine these gateway components as you wish. This design offers you a high degree of flexibility, since you can exchange the individual gateway components at any time. -
Page 9: Control Elements
3.2 Control Elements Front view Illustration 2: Front view Status LEDs Fieldbus connection two RJ45 sockets for the connection to PROFINET Gateway PROFINET IRT Slave... - Page 10 Illustration 3: Top Interconnect ports for interconnecting the gateway components. Locking clamps for securely attaching the gateway component to the DIN rail. Gateway PROFINET IRT Slave...
- Page 11 Bottom Illustration 4: Bottom Mains connection with 24 V supply voltage Locking clamps for securely attaching the gateway component to the DIN rail Gateway PROFINET IRT Slave...
-
Page 12: Status Leds
Gateway component reports diagnostic data flashes 2 Hz, red No connection to the controller No PROFINET name set in the gateway component flashes 1 Hz, green Signaling. Triggered by tool to identify the gateway component Gateway PROFINET IRT Slave... -
Page 13: Installation
200 m in length – 25 mm for potential equalization cables of more than 200 m in length – Use potential equalization cables made of copper or galvanized steel. – Connect potential equalization cables extensively with the earth rail. Gateway PROFINET IRT Slave... -
Page 14: Requirements
Connect each gateway component individually to functional earth. Make sure that the power supplies of both gateway components have the same ground. ð Your control cabinet now meets all the requirements for installing the gateway components. Gateway PROFINET IRT Slave... -
Page 15: Connecting Gateway Components
Connect an interconnect port to each gateway component using the plug-in jumper provided. Illustration 6: Connecting gateway components ð You can now install the gateway in the control cabinet. NOTICE Only ever interconnect two gateway components. If you connect additional components, severe defects could result on all devices. Gateway PROFINET IRT Slave... -
Page 16: Installing A Gateway In The Control Cabinet
To connect the gateway component to PROFINET, you need two RJ45 connectors. The pin assignment complies with the specifications of the PNO. Meaning TX - Do not connect! Do not connect! Do not connect! Do not connect! Gateway PROFINET IRT Slave... -
Page 17: Connecting The Power Supply
NOTICE Connect the two gateway components to the power supply. a) Ensure in particular that no potential differences occur between the GND pins (2). Pin assignment: Assignment 24 V for module supply Do not connect! Functional earth Gateway PROFINET IRT Slave... -
Page 18: Configuration
Examples of valid names: “device ‑1.machine‑ 1.plant‑ 1.vendor” “mühle1.ölmühle1.plant.com“ is coded as “ xn–mhle1-kva.xn–lmhle1 -vxa4c.plant.com“ 5.3 Exchanging Data Cyclically To configure the gateway component, you have to perform the appropriate settings with the configuration software of your PROFINET controller. Gateway PROFINET IRT Slave... - Page 19 Submodule that represents the entire PROFINET device Submodule ID: 0x0000000a Subslot: 0x8000 Number of input bytes: Number of output bytes: Submodule representing port 1 Submodule ID: 0x0000000b Subslot: 0x8001 Number of input bytes: Number of output bytes: Gateway PROFINET IRT Slave...
- Page 20 Number of submodules: Submodule ID: 0x00000001 Subslot: 0x0001 Number of input bytes: Number of output bytes: Output 16 Byte Description: Output 16 Byte Module ID: 0x00000050 Used in slot: 9 – 10 Total number of input bytes: Gateway PROFINET IRT Slave...
-
Page 21: Exchanging Data Acyclically (Records)
Note that the first 320 bytes of the input and output area are used for cyclic data transmission. Records that you address with index 0x0000 - 0x00ff or 0x1000 - 0x10ff can be overwritten by the cyclic data transmission. Addressing Gateway PROFINET IRT Slave... -
Page 22: I&M Data
You can find the following information on the gateway component via the I&M 0 data: – Vendor ID – Order ID – Serial Number – Hardware Revision – Software Revision – Revision Counter – Profile ID Gateway PROFINET IRT Slave... -
Page 23: Diagnosis Alarm
As soon as the communication between the two gateway components is working, the gateway component for PROFINET sends a diagnostic telegram to the PROFINET controller. More detailed information on the topic of diagnosis alarm can be found in the specifications for PROFINET. Gateway PROFINET IRT Slave... -
Page 24: Integrated Servers
For the interfaces in the selected mode, the transmitted data can be displayed cyclically. Click the "Show" buttons to view the process data of the desired input and output range. The following example shows the process data of the fieldbus. Gateway PROFINET IRT Slave... -
Page 25: Firmware Update
Configuring the IP address (Windows PC) a) Click on "Start". b) Select "System Control". c) Click on "Network and Sharing Center". d) Click on "Change adapter settings". e) Right-click on the desired connection. f) Select "Properties". Gateway PROFINET IRT Slave... - Page 26 Select "Internet Protocol Version 4" with a double click. h) Set the desired IP address. i) Click on "OK". Gateway PROFINET IRT Slave...
- Page 27 ü Connect the Ethernet interface of the gateway component to the Ethernet interface on your PC. A LAN cable is required. a) Download Proneta to your PC. b) Unpack the current version. c) Open "Proneta.exe" with a double click. Gateway PROFINET IRT Slave...
- Page 28 ð Proneta is opened. d) Click on "Settings". e) Click on the “Network Adapter” tab. f) Select the desired network interface. Gateway PROFINET IRT Slave...
- Page 29 Click on "Home". h) Click on "network analysis". ð The network analysis is opened. The network connection between Windows PC and the gate- way component is displayed. Gateway PROFINET IRT Slave...
- Page 30 Select the gateway component by double-clicking on it. ð The configuration interface opens. j) Enter the network configuration here. Gateway PROFINET IRT Slave...
- Page 31 Click on "Set". ð The IP address is now set. Gateway PROFINET IRT Slave...
- Page 32 "ping" and the IP address of the gateway component. This allows you to check whether the configuration is correct. Setting up FTP Server ü You have installed a program for data transfer. We use FileZilla in this example. However, you can use other software. Gateway PROFINET IRT Slave...
- Page 33 Click on "New server". p) Set the following parameters in the "General" tab: -IP address -Select "FTP" protocol -User name (Admin) -Password (1701). q) Click on the "Advanced" tab. r) Check the box "Bypass proxy". Gateway PROFINET IRT Slave...
- Page 34 Click on "Connect". t) Copy the KFU file to the gateway component. Gateway PROFINET IRT Slave...
- Page 35 Restart the gateway component. ð Your firmware has been updated. Gateway PROFINET IRT Slave...
-
Page 36: Technical Data
– Cyclical data exchange – 320 byte – Acyclical data exchange – 192 byte – Output data – 512 byte – Cyclical data exchange – 320 byte – Acyclical data exchange – 192 byte Bitrate 100 MBit Gateway PROFINET IRT Slave... - Page 37 Illustration 7: Side dimensions Illustration 8: Front dimensions Gateway PROFINET IRT Slave...
