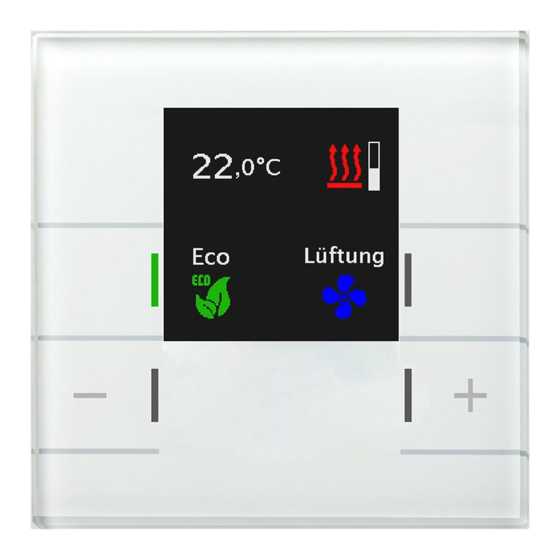

Glass room temperature controller smart
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
State 05/2022 Version V1.0
Technical Manual
MDT
Glass Room Temperature Controller
Smart
SCN-RTRGW.02
SCN-RTRGS.02
Further Documents:
Datasheet:
https://www.mdt.de/EN_Downloads_Datasheets.html
Assembly and Operation Instructions:
https://www.mdt.de/EN_Downloads_Instructions.html
Solution Proposals for MDT products:
https://www.mdt.de/EN_Downloads_Solutions.html
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 • Germany
Phone: +49-2263-880 • knx@mdt.de • www.mdt.de
