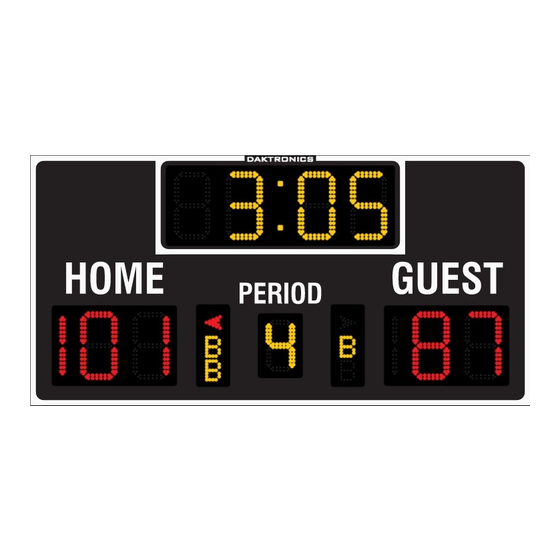

Led wrestling scoreboards

Advertisement

Quick Links

201 Daktronics Drive
Brookings, SD 57006-5128
www.daktronics.com/support
800.325.8766
MATSIDE
LED WRESTLING SCOREBOARDS
DISPLAY MANUAL
ED-15023
19 June 2018
WR-2101
WR-2102
WR-2103
JR.
®
P1237
Rev 03
Models
WR-2104
WR-2105
WR-2106

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WR-2101 and is the answer not in the manual?

Questions and answers

Summary of Contents for Daktronics WR-2101

  • Page 1 MATSIDE ® LED WRESTLING SCOREBOARDS DISPLAY MANUAL P1237 ED-15023 Rev 03 19 June 2018 Models WR-2101 WR-2104 WR-2102 WR-2105 WR-2103 WR-2106 201 Daktronics Drive Brookings, SD 57006-5128 www.daktronics.com/support 800.325.8766...
  • Page 2 Daktronics trademarks are property of Daktronics, Inc. All other trademarks are property of their respective companies.
  • Page 3: Table Of Contents

    Scoreboard Options ......................11 Horns..............................11 Adjusting Horn Volume ........................11 Changeable Captions ........................11 Ad Panels .............................11 Daktronics Exchange and Repair & Return Programs ............12 Exchange Program ..........................12 Repair & Return Program ........................13 Daktronics Warranty & Limitation of Liability ...................13 A Reference Drawings ......................15 Daktronics Warranty &...
  • Page 4 This page intentionally left blank.
  • Page 5: Introduction

    This manual explains the installation and maintenance of Daktronics Matside Jr. LED wrestling scoreboards. For additional information regarding safety, installation, operation, or service, refer to the telephone numbers listed in Section 5: Daktronics Exchange and Repair & Return Programs (p.12). This manual is not specific to a particular installation.
  • Page 6: Resources

    Reference Drawing: System Riser Diagram ..................DWG-1007804 Daktronics identifies manuals by the DD or ED number located on the cover page. Daktronics Nomenclature Most display components have a white label that lists the part 0P-1127-0024 number (Figure 3).
  • Page 7 WR-2103 (559 mm, 686 mm, 635 mm) (20 kg) WR-2104 9" H x 2'-0" W x 7" D 10 lb WR-2101, WR-2102, or WR-2105 (229 mm, 610 mm, 178 mm) (4.5 kg) WR-2103 scoreboard required to provide 10" H x 2'-3" W x 2'-1" D...
  • Page 8: Mechanical & Electrical Installation

    Mechanical Spec, WR-2103-13 ................. DWG-220856 Mechanical Spec, WR-2104, 2105, 2106 ............DWG-220904 All Daktronics Matside Jr. wrestling scoreboards may be displayed on the floor on a table, or mounted on an optional tripod. Use only the tripod (part # A-1580) and adapter (part # HS-1306) supplied by Daktronics.
  • Page 9: Signal

    Special note to users of All Sport 4000 and Pro Sport 6000 Control Consoles: Current standard models in the Daktronics Matside Jr. wrestling display lines are factory configured to operate only with the All Sport 1600 and 5000 series control consoles. If one of these standard scoreboards is sent as a replacement, the address plug must be removed from the scoreboard to properly receive signal from older controllers.
  • Page 10: Troubleshooting

    Troubleshooting Disconnect power before doing any repair or maintenance work on the display. Permit only qualified service personnel to access internal display electronics. Disconnect power when not using the display. Troubleshooting Table This section lists potential problems with the system, indicates possible causes, and suggests corrective action.
  • Page 11: Component Location & Access

    Problem Possible Cause Solution/Items to Check Exchange the digit/indicator with a Display works, but some Short in digit/indicator working one of the same part # to verify LEDs always stay on circuit the problem. Replace if necessary. See Replacing Digits (p.7). Verify the connector on the back of the Bad connection digit circuit board is secure.
  • Page 12: Replacing A Driver

    16-Column “Gyrus” Drivers Function Operation Summary Radio/ DS1 will be blinking when the driver is receiving radio Blinking or off RS-232 RX signal and off when there is no signal. DS2 will be blinking at one second intervals to indicate Status Blinking the driver is running.
  • Page 13: Setting The Driver Address

    Schematics Reference Drawings: Schematic; WR-2101 -2102 -2103 ..............DWG-214890 For advanced display troubleshooting and repair, it may be necessary to consult the schematic drawings. DWG-214890 in Appendix A shows detailed power and signal wiring diagrams of internal display components.
  • Page 14: Replacement Parts

    Cable, 20' phone plug W-1236 Cable, 50' phone plug W-1237 Cable, 30' phone plug W-1238 Cable, 10' phone plug W-1340 Refer to Section 5: Daktronics Exchange and Repair & Return Programs (p.12) for information on exchanging or returning parts. Troubleshooting...
  • Page 15: Scoreboard Options

    Changeable Captions Reference Drawings: Caption Panel Placement, WR-2101, -2102, -2103 ......... DWG-225545 Matside Jr. scoreboards are capable of scoring several other sports in addition to wrestling, including basketball, gymnastics, and volleyball. In order to score gymnastics and volleyball, the MATCH caption can be covered up with different scoring captions.
  • Page 16: Daktronics Exchange And Repair & Return Programs

    Fill out and attach the enclosed UPS shipping document. c. Ship the part to Daktronics. 3. The defective or unused parts must be returned to Daktronics within 5 weeks of initial order shipment. If any part is not returned within five (5) weeks, a non-refundable invoice will be presented to the customer for the costs of replenishing the exchange parts inventory with a new part.
  • Page 17: Repair & Return Program

    Repair & Return Program For items not subject to exchange, Daktronics offers a Repair & Return Program. To send a part for repair, follow these steps: 1. Call or fax Daktronics Customer Service. Refer to the appropriate number in the chart on the previous page.
  • Page 18 This page intentionally left blank.
  • Page 19: A Reference Drawings

    Electrical & Signal Spec, WR-2104, 2105, 2106 ..........DWG-220903 Mechanical Spec, WR-2104, 2105, & 2106 ............DWG-220904 Mechanical Spec, Non-Backlit Ad Panel Attachment ........DWG-220915 Caption Panel Placement, WR-2101, -2102, -2103 ......... DWG-225545 Specifications; Gyrus LED Driver, 16 Col ............DWG-3071833 Reference Drawings...
  • Page 20 This page intentionally left blank.
  • Page 25 DAKTRONICS DAKTRONICS MATCH MATCH DAKTRONICS...
  • Page 27 DAKTRONICS MATCH DAKTRONICS MATCH...
  • Page 29 DAKTRONICS DAKTRONICS MATCH MATCH MATCH...
  • Page 34 DAKTRONICS, INC. DRAWING ARE CONFIDENTIAL AND PROPIETARY. DO NOT BROOKINGS, SD 57006 REPRODUCE BY ANY MEANS WITHOUT THE EXPRESSED OFF = Disconnected WRITTEN CONSENT OF DAKTRONICS INC. Copyright © 2015 Daktronics Inc. DO NOT SCALE DRAWING PROJECT Reference Drawings TITLE SPECIFICATIONS;...
  • Page 35: B Daktronics Warranty & Limitation Of Liability

    Daktronics Warranty & Limitation of Liability This section includes the Daktronics Warranty & Limitation of Liability statement (SL-02374). Daktronics Warranty & Limitation of Liability...
  • Page 36 This page intentionally left blank.
  • Page 37   EXCEPT AS OTHERWISE EXPRESSLY SET FORTH IN THIS WARRANTY, TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, DAKTRONICS DISCLAIMS  ANY AND ALL OTHER PROMISES, REPRESENTATIONS AND WARRANTIES APPLICABLE TO THE EQUIPMENT AND REPLACES ALL OTHER WARRANTIES OR  CONDITIONS, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY, FITNESS FOR  A PARTICULAR PURPOSE, OR ACCURACY OR QUALITY OF DATA.  OTHER ORAL OR WRITTEN INFORMATION OR ADVICE GIVEN BY DAKTRONICS, ITS  AGENTS OR EMPLOYEES, SHALL NOT CREATE A WARRANTY OR IN ANY WAY INCREASE THE SCOPE OF THIS LIMITED WARRANTY.      THIS LIMITED WARRANTY IS NOT TRANSFERABLE.      2.  Exclusion from Warranty Coverage     This Warranty does not impose any duty or liability upon Daktronics for any:   A.  damage occurring at any time, during shipment of Equipment unless otherwise provided for in the Agreement. When returning Equipment to  Daktronics for repair or replacement, End User assumes all risk of loss or damage, agrees to use any shipping containers that might be provided by  Daktronics, and to ship the Equipment in the manner prescribed by Daktronics;     B.  damage caused by: (i)the improper handling, installation, adjustment, use, repair, or service of the Equipment,or (ii) any physical damage which  includes, but is not limited to, missing, broken, or cracked components resulting from non‐electrical causes; altered, scratched, or fractured electronic  traces; missing or gauged solder pads; cuts or clipped wires; crushed, cracked, punctured, or bent circuit boards; or tampering with any electronic  connections, provided that such damage is not caused by personnel of Daktronics or its authorized repair agents;     C.  damage caused by the failure to provide a continuously suitable environment, including, but not limited to: (i) neglect or misuse; (ii) improper power  including, without limitation, a failure or sudden surge of electrical power; (iii) improper air conditioning, humidity control, or other environmental  conditions outside of the Equipment’s technical specifications such as extreme temperatures, corrosives and metallic pollutants; or (iv) any other cause  other than ordinary use;     Copyright © Daktronics, Inc. SL-02374 Rev 12 19Nov15 Page 1 of 2...
  • Page 38 Limitation of Liability      Daktronics shall be under no obligation to furnish continued service under this Warranty if alterations are made to the Equipment without the prior  written approval of Daktronics.      It  is  specifically  agreed  that  the  price  of  the  Equipment  is  based  upon  the  following  limitation  of  liability.    In  no  event  shall  Daktronics  (including  its  subsidiaries, affiliates, officers, directors, employees, or agents) be liable for any claims asserting or based on (a) loss of use of the facility or equipment;  lost business, revenues, or profits; loss of goodwill; failure or increased cost of operations; loss, damage or corruption of data; loss resulting from system  or service failure, malfunction, incompatibility, or breaches in system security; or (b) any special, consequential, incidental or exemplary damages arising  out of or in any way connected with the Equipment or otherwise, including but not limited to damages for lost profits, cost of substitute or replacement  equipment, down time, injury to property or any damages or sums paid to third parties, even if Daktronics has been advised of the possibility of such  damages.    The  foregoing  limitation  of  liability  shall  apply  whether  any  claim  is  based  upon  principles  of  contract,  tort  or  statutory  duty,  principles  of ...
