ATI Technologies Scorpion X2 Installation Instructions

Point the shotgun in a safe direction and place the safety in the "on" position. Next pull back the

slide, and carefully inspect the chamber to be sure the shotgun is unloaded.

Step #1

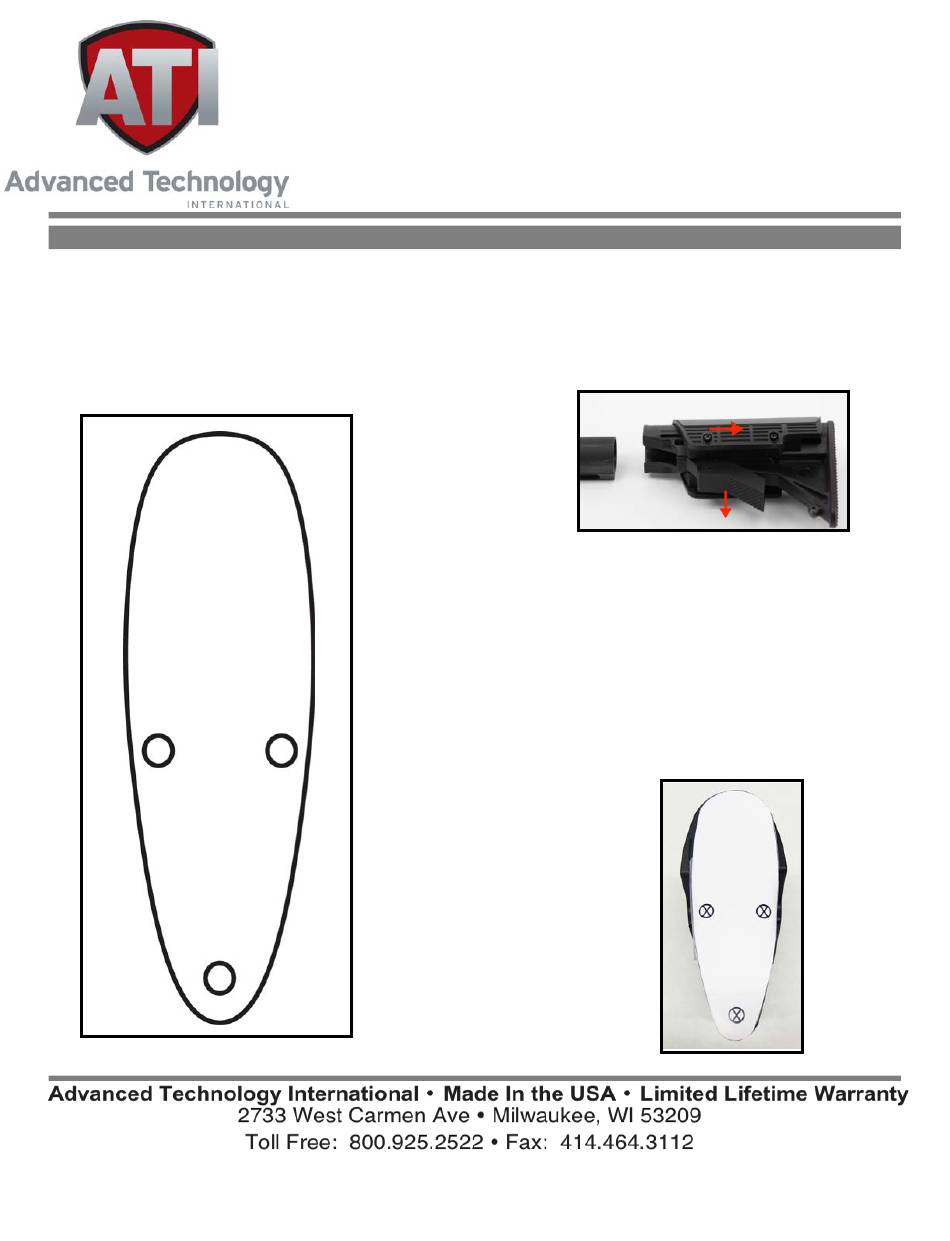

Cut out the buttpad template below.

Note: If your ATI buttstock already has pre-drilled

holes for buttpad installation, skip to step #7.

www. ATIgunstocks.com

Figure 1

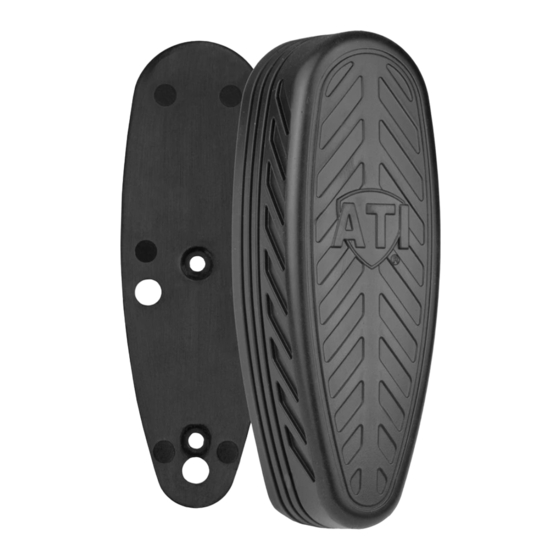

Scorpion X2 Pad

Part # A.5.10.1015

-Installation Instructions-

Thank you for purchasing an ATI product!

Buttpad Installation

Step #2

Pull down the latch lever and slide the ATI buttstock away

from the buffer tube.

Step #3

Place the buttpad template onto the buttstock and

secure the template to the buttstock with tape.

NOTE: Make sure the paper template is aligned

perfectly with the outside profile of the

buttstock. If the template is not aligned correctly,

the buttpad will not correctly assemble to the

stock.

Figure 2

Figure 3

Page 1
