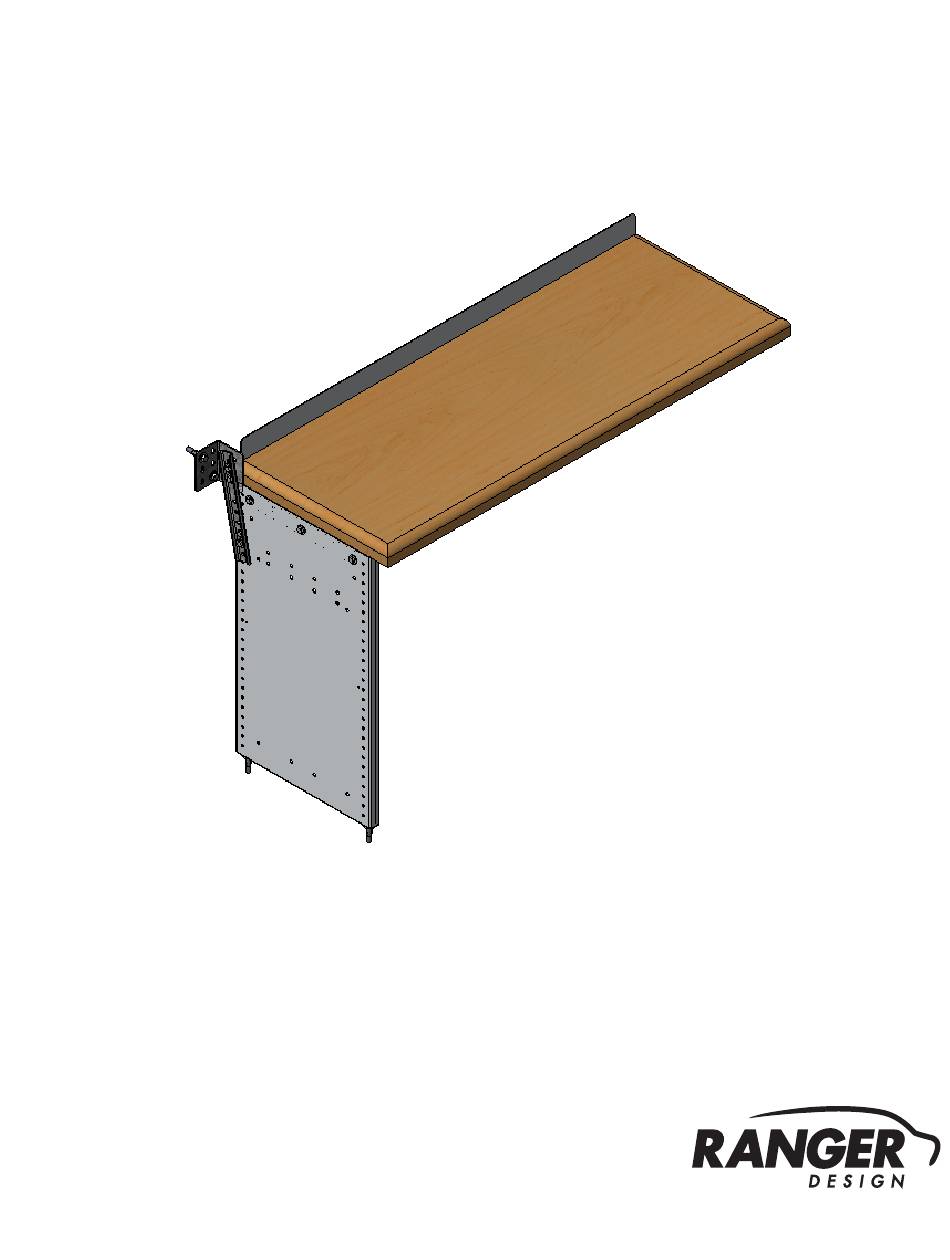

- Page 1 INSTALLATION GUIDE S2-WA48-0 W orkbench Assembled On 5067-6 w/ Hardwood Top ( Aluminum )
-
Page 2: Required Items
QUICK START GUIDE Phase 1 - Assembly q 1.1 Setup............................... 3 - 5 q 1.2 Workbench Assembly........................5 - 7 Phase 2 - Installation q 2.1 Attaching Workbench To Drawer Unit.................... 8 - 9 q 2.2 Attach Wall Brackets To The End Panels..................q 2.3 Mark Holes For Plus Nuts....................... - Page 3 Bracket - Shelving 40-736 End - Panel 70-810 Hardwood Top 70-816 Side Panel Bracket 70-818 Straight Backsplash 96-4803 Install Fastener Kit 94-4803 Assembly Fastener Kit S2-WA48-0 Installation Guide | REV. B1 | Page 3 For technical support, contact us at 1-800-565-5321...
- Page 4 4× 4× 5/16" # 98-122 ZINC #94-132 5/16" Plusnut Spacer 2× 2× 0.375" ID, × 1.0" OD × 0.25" LONG # 98-157 NYLON S2-WA48-0 Installation Guide | REV. B1 | Page 4 For technical support, contact us at 1-800-565-5321...
- Page 5 1.2.1 Attach side panels bracket to the end panel. TOOLS q Cordless Impact q 1/2" Socket HARDWARE USED 3× #90-204 Hex Bolt 5/16" × 3/4" #98-116 Flat Washer #94-116 Serrated Nut S2-WA48-0 Installation Guide | REV. B1 | Page 5 For technical support, contact us at 1-800-565-5321...
- Page 6 FLUSHED TOOLS q Cordless Impact q Cordless Drill q 3/8" Driver Bit q 3/16" Drill Bit HARDWARE USED 4× #92-102 Screw #14 × 1" S2-WA48-0 Installation Guide | REV. B1 | Page 6 For technical support, contact us at 1-800-565-5321...
- Page 7 70-818 TOOLS q Cordless Impact q Cordless Drill q 3/8" Driver Bit q 3/16" Drill Bit HARDWARE USED 5× #92-102 Screw #14 × 1" S2-WA48-0 Installation Guide | REV. B1 | Page 7 For technical support, contact us at 1-800-565-5321...
-
Page 8: Phase 2 - Installation
TOOLS q Cordless Impact q 1/2" Socket HARDWARE USED 2× draWer hardWare Carriage Bolt 1/2" & 5/8" Lock Washer 5/16" Acorn Nut 5/16" S2-WA48-0 Installation Guide | REV. B1 | Page 8 For technical support, contact us at 1-800-565-5321... - Page 9 TOOLS q Cordless Impact q Cordless Drill q 3/8" Driver Bit q 3/16" Drill Bit HARDWARE USED 4× #92-102 Screw #14 × 1" S2-WA48-0 Installation Guide | REV. B1 | Page 9 For technical support, contact us at 1-800-565-5321...
- Page 10 1/2" Socket BRACKET HEAD HARDWARE USED 2× hand tighten the bolts #90-110 Hex Bolt 1/4" × 3/4" #98-112 Flat Washer #94-112 Serrated Nut S2-WA48-0 Installation Guide | REV. B1 | Page 10 For technical support, contact us at 1-800-565-5321...
- Page 11 Mark 2 holes of each end panel on the vehicle floor. NOTE: If you are using Ranger floor, please go to page TOOLS q Marker MARK S2-WA48-0 Installation Guide | REV. B1 | Page 11 For technical support, contact us at 1-800-565-5321...
- Page 12 1/2" Drill Bit w/ Drill Collar ( Set at 1/2" ) q Plus Nut Tool ( 5/16" ) HARDWARE USED 4× #94-132 Plus Nut DRILL COLLAR 1/2" ) seT aT S2-WA48-0 Installation Guide | REV. B1 | Page 12 For technical support, contact us at 1-800-565-5321...
- Page 13 1/2" socket until the plusnut locks, then remove the bolt by turning the impact in reverse. FORWARD REVERSE S2-WA48-0 Installation Guide | REV. B1 | Page 13 For technical support, contact us at 1-800-565-5321...
- Page 14 #94-132 5/16" Plusnut ips When to use spacer most vehicle use spacer When not over ribs W/ Spacer W/O Spacer S2-WA48-0 Installation Guide | REV. B1 | Page 14 For technical support, contact us at 1-800-565-5321...
- Page 15 #92-102 Screw 1" HARDWARE USED 1× floor fastener kit #90-490 Carriage Bolt 5/16" × 1" #98-116 Lock Washer #98-122 Flat Washer #94-104 Hex Nut S2-WA48-0 Installation Guide | REV. B1 | Page 15 For technical support, contact us at 1-800-565-5321...
-
Page 16: Attach Wall Brackets
Cordless Impact q 1/2" Socket HARDWARE USED 2× #90-212 Hex Bolt 5/16" × 1-1/4" #98-122 Lock Washer #98-116 Flat Washer #94-132 5/16" Plusnut S2-WA48-0 Installation Guide | REV. B1 | Page 16 For technical support, contact us at 1-800-565-5321... - Page 17 1/2" Socket FASTENERS USED 2× Wall kits fastener kit #90-212 Hex Bolt 5/16" × 1-1/4" #98-122 Lock Washer #98-116 Flat Washer #94-150 Channel Nut S2-WA48-0 Installation Guide | REV. B1 | Page 17 For technical support, contact us at 1-800-565-5321...
- Page 18 “You have successfully installed your Workbench Thank you for doing business with us.” cs@rangerdesign.com For any feedback or suggestions you may have, please contact: S2-WA48-0 Installation Guide | REV. B1 | Page 18 For technical support, contact us at 1-800-565-5321...
