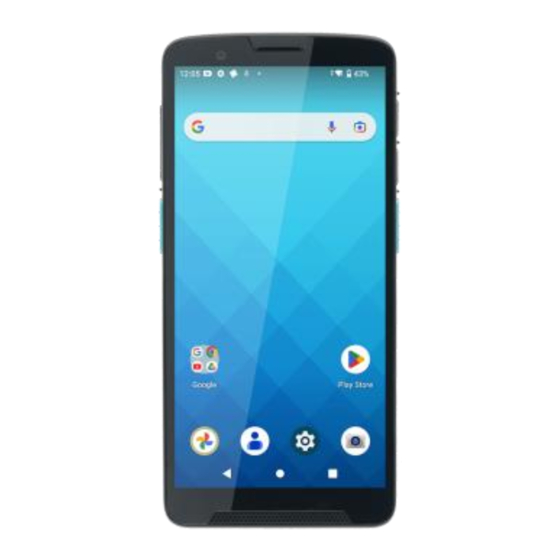

Unitech EA660 Quick Start Manual

EA660
Rugged Smartphone
Product View
2
3
5
6
1. Barcode Scanner Window
2. Receiver
3. Front Camera
4. LED Indicator
5. Volume Key
Quick Start Guide
401706G V1.0
1
4
7
8
6
9
6. Scanner Trigger Key
7. Power Button
8. Programmable Key
9. Speaker
10. Rear Camera
Package
Please make sure the following contents are in the
EA660 gift box.
If something is missing or damaged, please contact
your Unitech representative.
The Package Contents
 EA660 Rugged Smartphone
 Battery
 USB-C Cable
 Quick Start Guide
Optional Accessories
 QC 3.0 Adapter (US)/(EU)
 Stylus (5.5mm)
 Hand Strap
 Coiled Strap
 Screen Protector
 Gun Grip
 Single Slot Charging Cradle
 Single Slot USB Cradle
 Single Slot Ethernet Cradle
10
11
15
16
17
10
11. Hand Strap Holes
12. NFC
13. Microphone (sub)
14. Pogo Pin for Gun Grip
12
13
14
Note:
Please remove
the black film
while using gun
grip.
18
15. Battery Cover Latch
16. Battery Cover
17. USB-C Hole
18. Pogo Pin for Cradle
