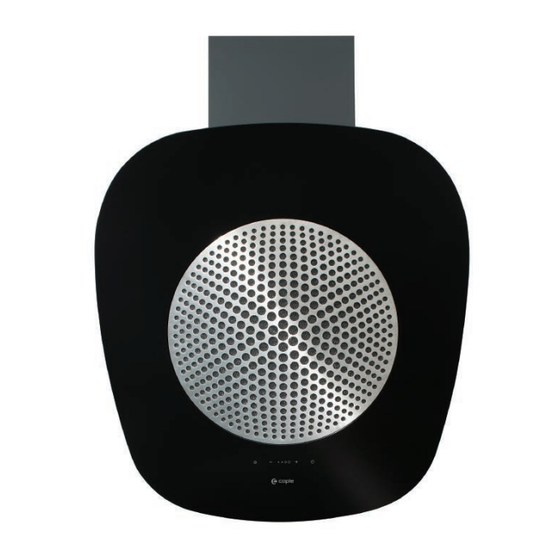

- Page 1 Instruction manual for wall chimney hood Model code: ZA800, ZA801 Model code: ZA800 Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk...
- Page 3 The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
- Page 4 CONTENTS Warnings Uses Installation Working Timing Maintenance...
- Page 5 WARNINGS * The appliance is not intended for use by young children or infirm persons without super- vision. Young children should be supervised to ensure they do not play with the appliance. * The air sucked can’t be conveyed through or into a duct used to let out fumes from appliances fed by energy other than electric power (eg.
- Page 6 USES The appliance is already arranged both for filtering and for suction performances. In its filtering version (Fig.1), the air and fumes conveyed by the appliance are cleaned both by a grease filter and by an active coal filter, and put again into circulation through the side- grids of the chimney.
-
Page 7: Installation
INSTALLATION The manufacturer will not accept any liability for damages occurred during the appliance The manufacturer will not accept any liability for damages occurred during the applian- handling/transport and installation operations. ce handling/transport and installation operations. Carefully read the following installation instructions , before installing the appliance. Carefully read the following installation instructions , before installing the appliance. - Page 8 Suctioning mode (top air out-let). Secure the pipe support bracket (fig. 12) to the wall and/or the ceiling , by using the anchors and screws provided, in a position corresponding to the centre of the hood. Connect the motor air out-let flange to the exhaust hole , by using a suitable pipe. Place the two decorative pipes on the hood exhaust body ;...
- Page 9 The touch control key allows the function desired by touching the relative key. If the electrical power supply to the product SLTC is cut, 15 seconds are needed for selfdiagnostics after the functions are restored. In the meanwhile, its operation may be incorrect. WORKING SLTC93: The product works even if the panel is closed.
-
Page 10: Maintenance
MAINTENANCE An accurate maintenance guarantees good functioning and long-lasting performance. An accurate maintenance guarantees good functioning and long-lasting performance. Particular care is due to the grease filter panel. Particular care is due to the grease filter panel. HOW TO REMOVE THE GREASE FILTER AND THE CHARCOAL FILTER HOW TO REMOVE THE GREASE FILTER AND THE CHARCOAL FILTER The grease filter is removed by taking it from the centre hole fig.18, and pulling it out of the SLTC93 - SLTC94 After opening the front panel, as shown in the installation section, remove... - Page 16 Serial number Caple Fourth Way Avonmouth Bristol BS11 8DW www.caple.co.uk 90004220095 - 03/17 90002422415...
