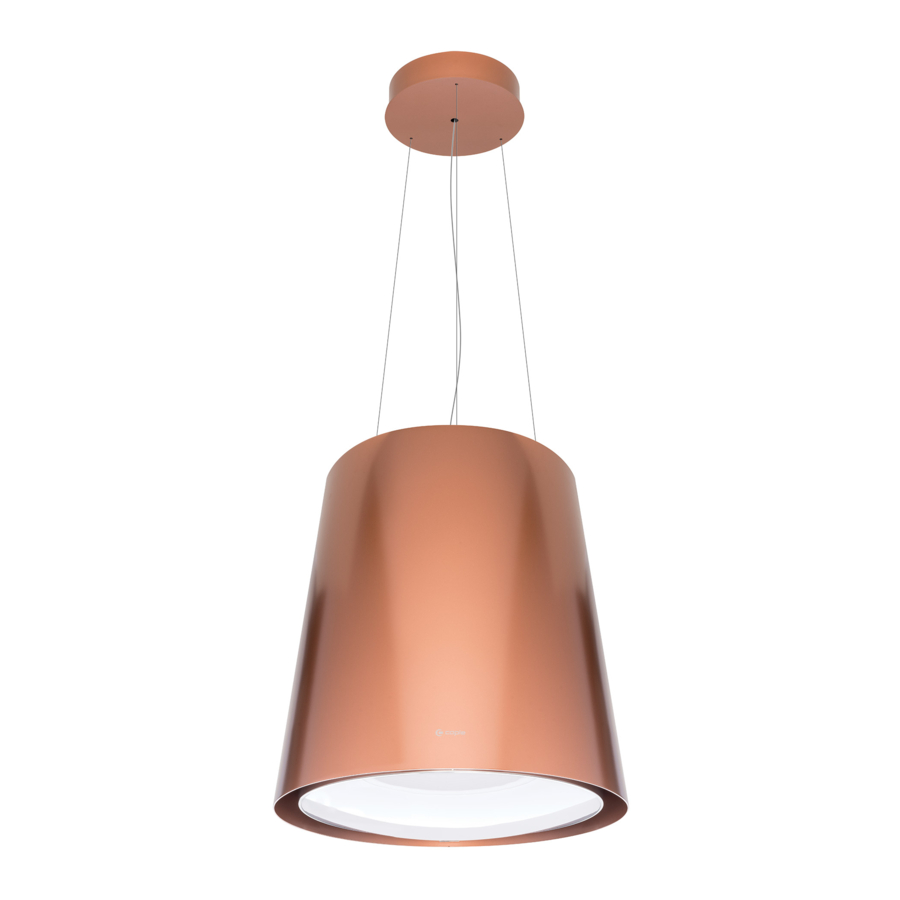

- Page 1 Z a l t o I s l a n d E x t r a c t o r I n s t r u c t i o n M a n u a l ZAL4 8C O, ZAL4 8S L , ZAL4 8BK Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk...
-
Page 2: Table Of Contents
C O N T E N T S Introduction Safety Instructions and Warnings Environmental Protection Installation Remote Control Timing Care and Maintenance Caple Contact Details Instruction manual ZAL48CO, ZAL48SL, ZAL48BK Please keep this instruction manual for future reference... -
Page 3: Introduction
To ensure that you get the best results from your new extractor, we strongly suggest that you read this instruction manual thoroughly before use. If treated with care, your Caple product should give you years of trouble- free use. To register ownership, please ensure you complete and return the guarantee card supplied with the appliance or visit www.caple.co.uk and register here. -
Page 4: Safety Instructions And Warnings
S A F E T Y I N S T R U C T I O N S A N D W A R N I N G S : - The cooker surface and the inferior part of the cooker hood must be at a minimum distance of 65 cm. - Page 5 - The use of materials which can burst into flames should be avoided in close proximity of the appliance. When frying, please pay particular attention to fire risk due to oil and grease. Being highly inflammable, fried oil is especially dangerous. Do not use uncovered electric grills. In order to avoid possible fire risk, all instructions for grease filter cleaning and for removing eventual grease deposits should be strictly followed.
- Page 6 - Children 8 years and older may only use the cooker hood unsupervised if they have been shown how to use it safely and recognise and understand the consequences of incorrect operation. - The electrical safety of this appliance can only be guaranteed when correctly earthed.
-
Page 7: Environmental Protection
Registration can also be completed online by visiting www.caple.co.uk. Ensure you keep your warranty card safe, you may need to show it to Caple Service together with proof of purchase. If you fail to show your warranty card you will incur all repair charges. -
Page 8: Installation
I N S T A L L A T I O N This appliance can be used in recirculation mode only. In recirculation mode the air and fumes conveyed by the appliance are cleaned by both a grease filter and an active charcoal filter, and then released back into the room. - Page 9 › Take the mounting plate out of the packaging (Fig.1); to install the hood, position it in the desired place of the ceiling, making sure the centre of the plate is aligned with the centre of the hob. › Check that the ceiling structure is suitable to bear the weight of the appliance. Mark the holes to be drilled at the smaller openings of the plate (Fig.2).
- Page 10 › Adjust the height of the product, moving the steel cables up and down inside the support. It is necessary to unscrew and push the support in order to allow the movement of the cable (Fig.5). › Check that the remaining length of steel cables from the supports are the same, in order to ensure that it will be installed perfectly parallel to the ceiling and fully level.
-
Page 11: Remote Control
When using for the first time, press and hold the light button for 5 seconds. Remote control used for the remote operation of Caple island hoods: A L K A L I N E B AT T E RY P O W E R E D 12 V mod. - Page 12 S TA N DA R D C O N F I G U R AT I O N : Standard configuration requires all cooker hood remote controls to be provided with the same transmission code. In the event two cooker hood remote control systems are installed in the same room or nearby, each system may affect the operation of the another.
- Page 13 WA R N I N G : This operation permanently deletes the pre-set codes. E M E R G E N C Y B U T TO N : In the event that the remote control does not work, use the emergency button to switch the appliance off.
-
Page 14: Timing
T I M I N G › This product is equipped with intelligent electronics which include a timer device for speed controls when the air capacity exceeds 650m³/h. Internal motor models, with maximum air capacity higher than 650m³/h, are equipped with a timer device that automatically switches the speed from 4th to 3rd speed, after 6 minutes operation. -
Page 15: Care And Maintenance
› The active charcoal filter used in these hoods can be washed and re-used for up to a maximum 3 years. We recommend that these are replaced during this period. › To purchase replacement charcoal filters please visit www.caple.co.uk › To wash the charcoal filters, wash by hand with warm water or in the dishwasher, and then bake in the oven at 90 degrees for 1 hour. -
Page 16: Caple Contact Details
Caple Service Fourth Way T: 0117 938 1900 Avonmouth E: service@caple.co.uk Bristol www.caple.co.uk BS11 8DW...
