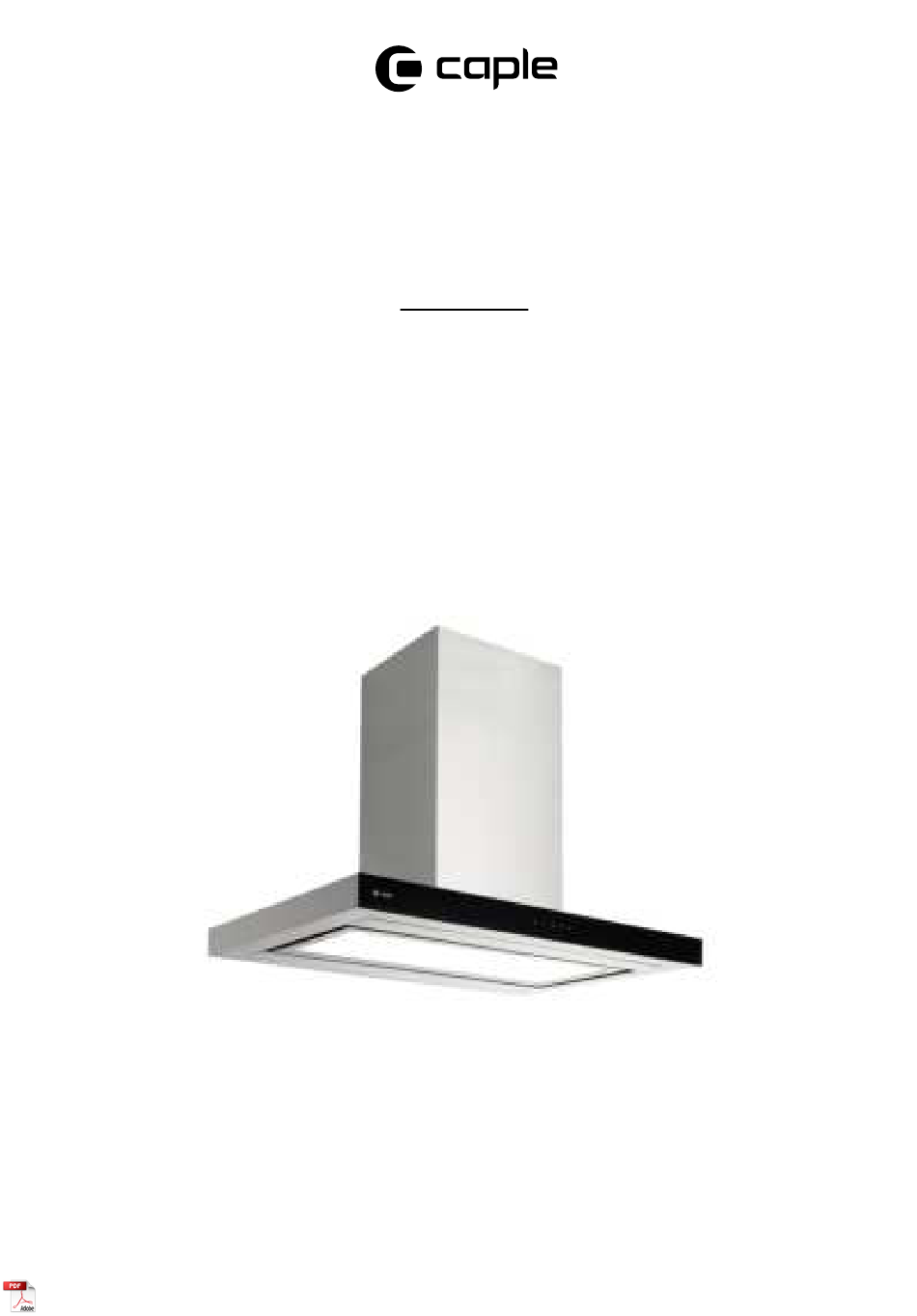

- Page 1 I s l a n d H o o d I n s t r u c t i o n M a n u a l ZI 922 Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk...
-
Page 2: Table Of Contents
C O N T E N T S Introduction Safety Instructions Environmental Protection Installation Installing the Charcoal Filter Operation Care and Maintenance Troubleshooting Product Dimensions Caple Contact Details Instruction manual Zi922 Please keep this instruction manual for future reference... -
Page 3: Introduction
To ensure that you get the best results from your new extractor, we strongly suggest that you read this instruction manual thoroughly before use. If treated with care, your Caple extractor should give you years of trouble-free use. To register ownership, please ensure you complete and return the guarantee card supplied with the appliance or visit www.caple.co.uk and register here. - Page 4 This appliance must only be used for the purpose it is intended. Other types of use are not permitted and may prove dangerous. Caple will not be held liable for any damage caused by the incorrect use of the appliance.
-
Page 5: Safety Instructions
I M P O R T A N T Caple cannot be held responsible for injuries or losses caused by incorrect use or installation of this product. Please note that Caple reserve the right to invalidate the guarantee supplied with this product following incorrect installation or misuse of the appliance. - Page 6 - Children should be supervised to ensure that they do not play with the appliance. Instruction manual Zi922 Please keep this instruction manual for future reference...
- Page 7 - Never immerse the appliance in water. - To avoid all risk, if the power cable is damaged, it must only be replaced by a Caple appointed engineer. - Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of...
- Page 8 › Staff kitchen areas in shops, offices and other working environments. › Farm Houses. › By clients in hotels, motels and other residential type environments. › Bed and breakfast type environments. Instruction manual Zi922 Please keep this instruction manual for future reference...
-
Page 9: Environmental Protection
Registration can also be completed online by visiting www.caple.co.uk. Ensure you keep your warranty card safe, you may need to show it to Caple Service together with proof of purchase. If you fail to show your warranty card you will incur all repair charges. -
Page 10: Installation
In the absence of any instructions supplied with a gas hob the minimum distance between the hob and the hood must be at least 760mm. Instruction manual Zi922 Please keep this instruction manual for future reference... - Page 11 4 x self tapping screws. Slide the lower chimney section onto the angle bars and raise it until it sits just below the upper chimney section. Instruction manual Zi922 Please keep this instruction manual for future reference...
- Page 12 I M P O R TA N T: This stage of the installation process MUST be completed by two people. The 16 x M5 screws MUST be securely tightened. Instruction manual Zi922 Please keep this instruction manual for future reference...
- Page 13 See the “installing the charcoal filter” section on page 14. › Fix the one-way-valve to the air outlet of the cooker hood. Then, attach the exhaust pipe onto the one-way-valve as shown below. Exhaust Pipe Cooker Hood Instruction manual Zi922 Please keep this instruction manual for future reference...
-
Page 14: Installing The Charcoal Filter
We recommend replacing these filters every 6 months. Replacement filters (CAP61CF) can be purchased directly from www.caple.co.uk Instruction manual Zi922 Please keep this instruction manual for future reference ... -
Page 15: Operation
When a high amount of steam or odours are produced, use the high speed setting for the most effective extraction. L I G H T B U T TO N Switches the light on and off. Instruction manual Zi922 Please keep this instruction manual for future reference... -
Page 16: Care And Maintenance
We recommend replacing them at least every 6 months. This extractor uses CAP61CF charcoal filters. Filters can be purchased directly from www.caple.co.uk. Instruction manual Zi922 Please keep this instruction manual for future reference... - Page 17 5. Plug the LED lamp cable back in. N OT E : The LED light panel is for illumination of the cooking area only, and not illuminating the room. Instruction manual Zi922 Please keep this instruction manual for future reference...
-
Page 18: Troubleshooting
Replace the charcoal filter (if in recirculation mode). If the above table has not solved the problem please contact Caple Service by phone on 0117 938 7420 or by email service@caple.co.uk Instruction manual Zi922... -
Page 19: Product Dimensions
P R O D U C T D I M E N S I O N S Z I 9 2 2 648-1098mm Instruction manual Zi922 Please keep this instruction manual for future reference... -
Page 20: Caple Contact Details
Caple Service Fourth Way T: 0117 938 1900 Avonmouth E: service@caple.co.uk Bristol www.caple.co.uk BS11 8DW...
