Summary of Contents for Caple ZC922

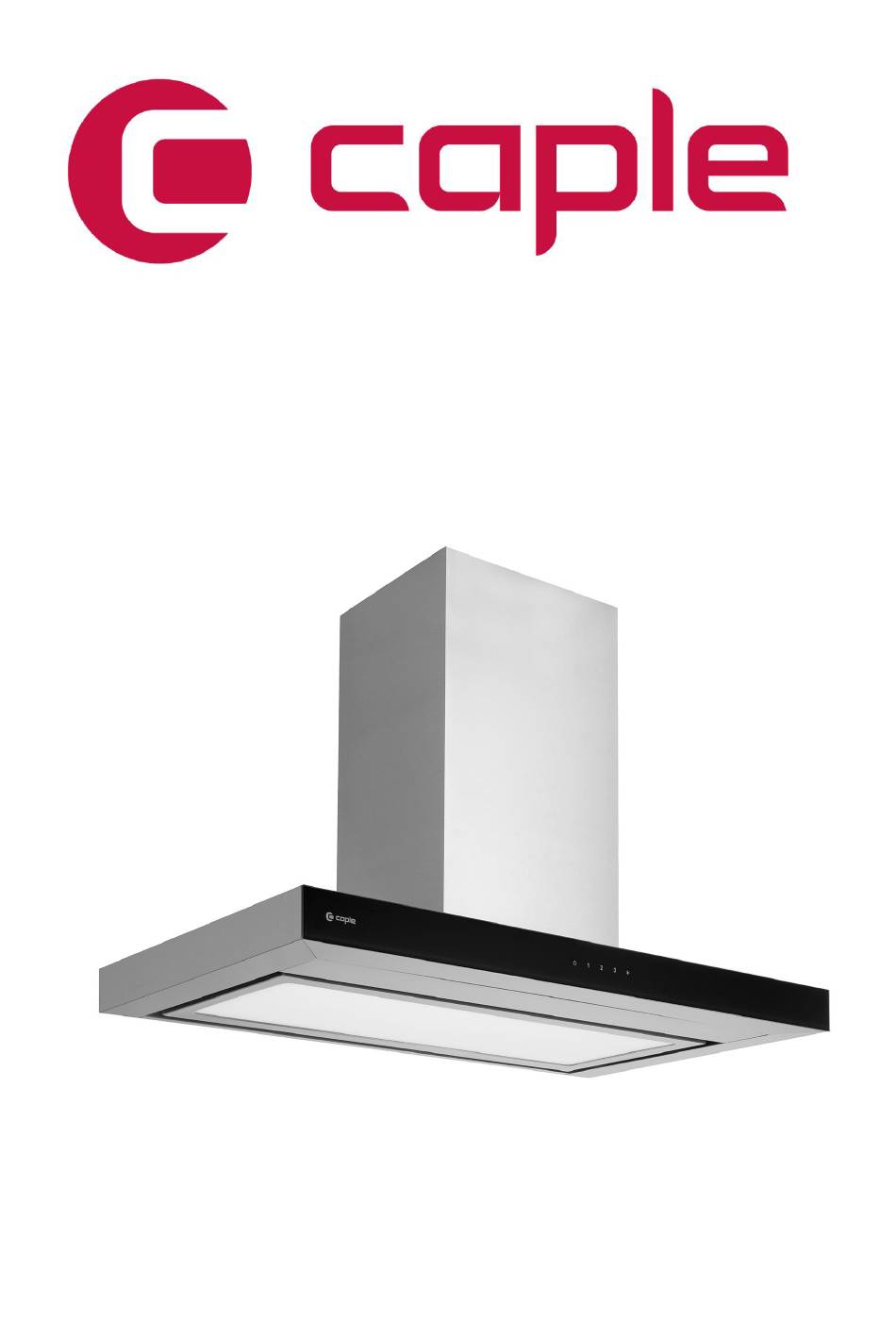

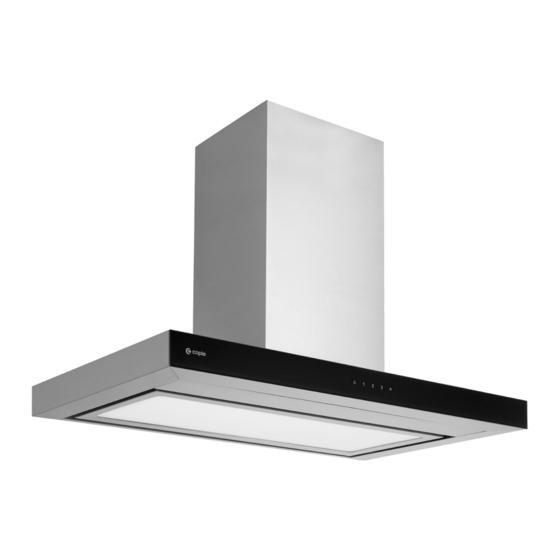

- Page 1 ZC922 Caple ZC922 Zodiac Chimney Hood Technical Manual...
- Page 2 ZC922 - Caple ZC922 Zodiac Chimney Hood...
- Page 3 ZC922 - Caple ZC922 Zodiac Chimney Hood Chassis Assembly Motor Assembly...
- Page 4 ZC922 - Caple ZC922 Zodiac Chimney Hood Supplier Position Description Item code For Whole Cooker Hood B23-2501-029-P Upper chimney bracket Upper chimney 500mm B20-2102-036-P Lower chimney 500mm B20-2102-008-P B23-2501-031-P Lower chimney bracket B64-2401-342-0 Capacitor B30-2501-025-0 PCB Box bottom B62-2602-043-0 UK BS plug cable...
- Page 5 ZC922 - Caple ZC922 Zodiac Chimney Hood Supplier Position Description Item code For Motor Assembly（B76-4806-008-B） B30-2301-012-0 Motor housing(left) B30-2301-181-0 Blower B61-2401-404-0 Motor(A Class) B30-2301-013-0 Motor housing(right) B30-2201-068-0 Motor housing holder B30-2201-022-0 One-way Valve Flap(Air Outlet) For Chassis Assembly（B71-4111-004-B） B23-2501-006-P Casing up...
