Summary of Contents for Caple ZI920

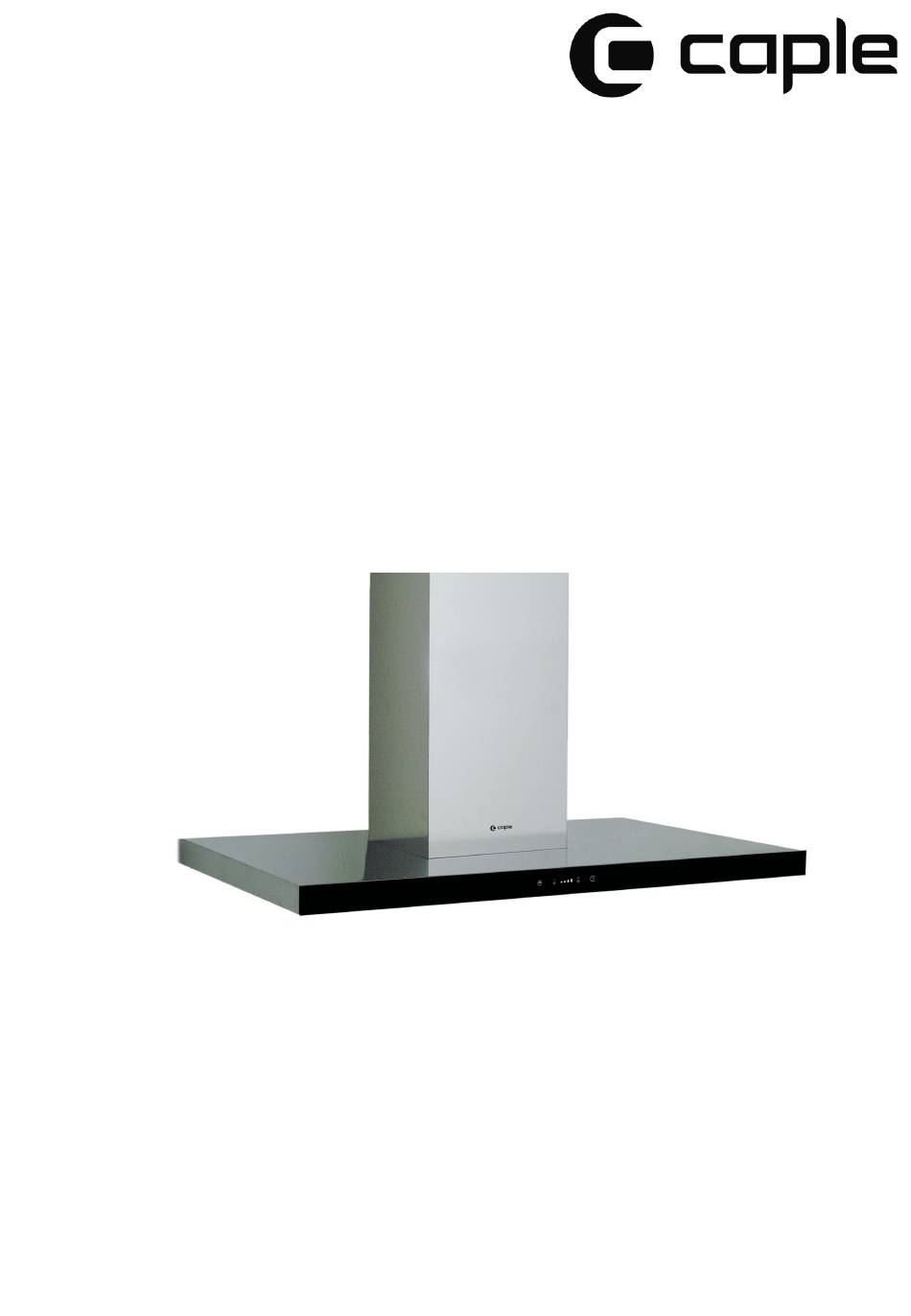

- Page 1 Instruction manual for downdraft hood Instruction manual for island hood Model code: DD520BK Model code: ZI920 ZI920WH Contact Caple on 0844 800 3830 or for spare parts www.4caple.co.uk Contact Caple on 0844 800 3830 or for spare parts www.caple.co.uk...
- Page 3 Environmental protection The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
-
Page 4: Table Of Contents
Contents Warnings Extraction options Installation Using your extractor Maintenance Diagrams... -
Page 5: Warnings
* Before carrying out any cleaning or maintenance Warnings the appliance needs to be removed from the electrical supply. If the appliance is not provided with a non- separable flexible cable and plug, or with another * The appliance is not intended for use by device ensuring omnipolar disconnections from the young children... -
Page 6: Installation
*Recirculating installation Installation Place the upper plate (Fig.5.1) on the ceiling. Drill 4 holes, 8 mm each, just next to the slots. Insert the plastic dowels into the holes (Fig.5.1- A). Fix the baffle (Fig. 5.2) to the upper bracket * Before installing the appliance, in order not (Fig.5.3) with the four self-tapping screws to damage the appliance itself, the metal grease... -
Page 7: Using Your Extractor
Using tour appliance ZI920 - Touch controls (see Fig.10) A: Light switch On/Off B: Reduce speed C: Speed setting indicator D: Increase speed E: 10 minute timer The touch control key allows you to select the desired function by touching the relative key. The... - Page 8 Remote control details Generating a new transmission code Technical data: Alkaline battery powered: 12v mod. 23A The radio control is supplied with default codes Operating frequency: 433.92 Mhz stored. If you want to create a new set of codes, Combinations: 4096 proceed as follows: press and hold the UP, STOP Max.
- Page 11 Fig. 7.6 Fig. 5.3 Fig. 7.5 Fig. 7.4 Fig. 5.2 Fig. 7.3 Fig. 5.1 Fig. 6.2 Fig. 7.2 Fig. 6.1 Fig. 7.1...
- Page 16 Caple Fourth Way Avonmouth Bristol BS11 8DW www.caple.co.uk 00000000000 - GM 03/14...
