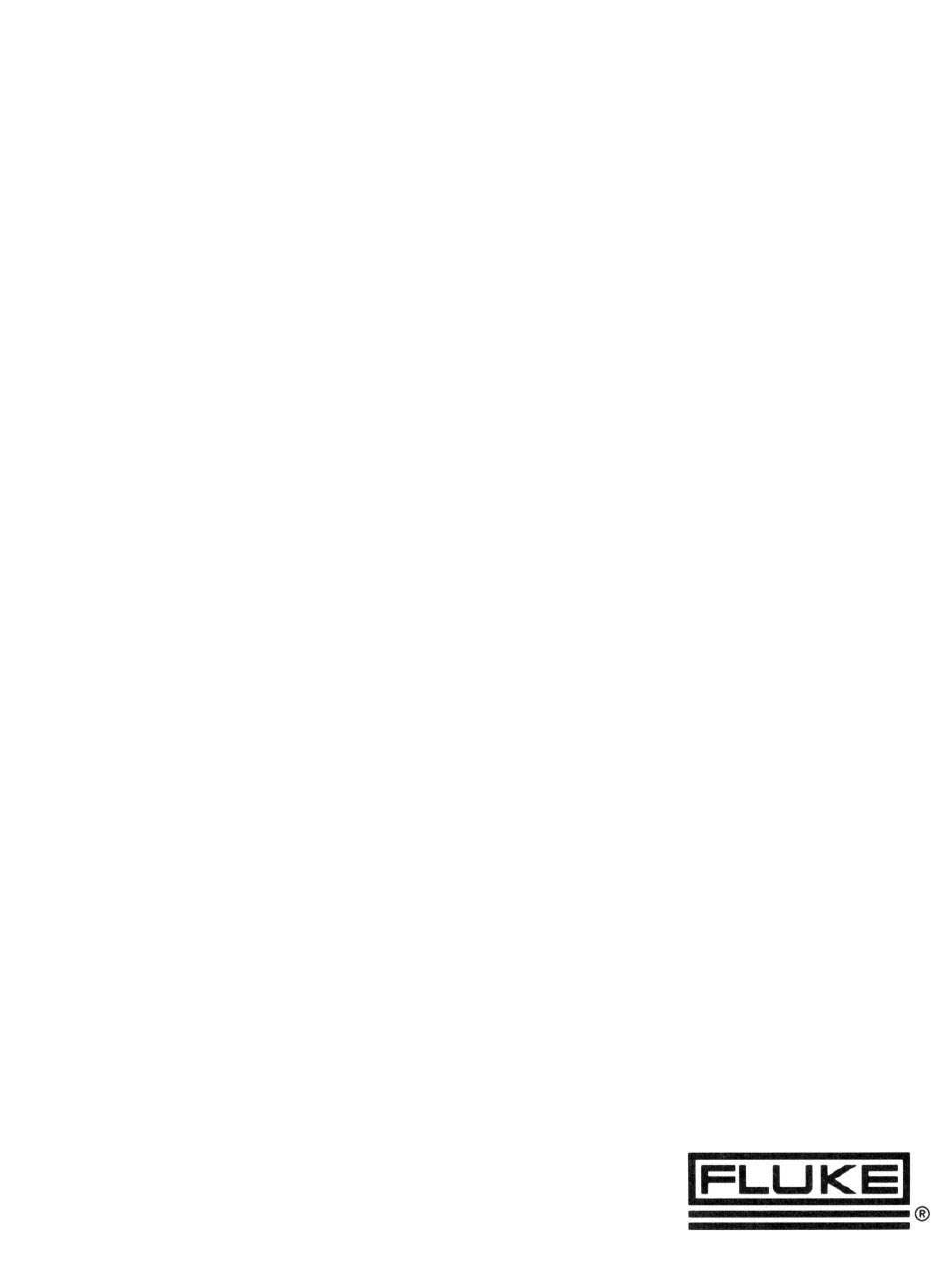

9000A-006
ASYNCHRONOUS SIGNATURE PROBE
Service Manual
P/N 783944
MAY 1986
© 1986, John Fluke Mfg. Co., Inc. All rights reserved. Litho in U.S.A.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9000A-006 and is the answer not in the manual?

Questions and answers

Related Manuals for Fluke 9000A-006

Summary of Contents for Fluke 9000A-006

  • Page 1 9000A-006 ASYNCHRONOUS SIGNATURE PROBE Service Manual P/N 783944 MAY 1986 © 1986, John Fluke Mfg. Co., Inc. All rights reserved. Litho in U.S.A.
  • Page 2 Fluke’s obligations under this warranty is limited to repair or replacement of a product that is returned to an authorized Service Center within the warranty period, provided that we determine that the product is defective.

  • Page 3: Table Of Contents

    9000A-006 Service Table of Contents SECTION TITLE PAGE INTRODUCTION ......... . 1-1 1-1.
  • Page 4 9000A-006 Service TABLE OF CONTENTS, continued SECTION TITLE PAGE 3-15. Test Setup, Defective Unit (UUT) ....3-5 3-16. Taking Signatures with the Test Troubleshooter ..3-6 LIST OF REPLACEABLE PARTS .
  • Page 5 Test Troubleshooter Connections ......3-6 4-1. 9000A-006 Final Assembly ....... 4-3 4-2.
  • Page 6 9000A-006 Service...
  • Page 7 Location of Asynchronous Signature Module ....3-2 4-1. 9000A-006 Final Assembly ....... 4-4 4-2.
  • Page 8 9000A-006 Service...

  • Page 9: Introduction

    Troubleshooter to stimulate the UUT makes it an effective tool for signature-type fault isolation methods. The Asynchronous Signature Option 9000A-006 provides additional Troubleshooting capability for the 9000A series Troubleshooters by using signature-type fault-isolation, events counting, and test-node waveform capture. Control signals from the UUT establish the signature and allow asynchronous operation with respect to the microprocessor bus cycle, i.e., the Pod.

  • Page 10: Equipment Description

    9000A-006 Service EQUIPMENT DESCRIPTION 1-2. General 1-3. As shown in Figure 1-1, the Asynchronous Signature option consists of the Asynchronous Signature Module mounted within the Troubleshooter case, a separate Clock Module that connects to the Troubleshooter, and operating programs contained on a magnetic tape cassette.

  • Page 11: The Clock Module

    9000A Series Troubleshooter are documented in the appropriate manual(s). Note Information for operating and programming the Asynchronous Signature Probe is available in a separate manual. Order John Fluke Part Number 773259. SPECIFICATIONS 1-8. Table 1-1 lists the specifications for the Asynchronous Signature Probe Option.
  • Page 12 9000A-006 Service Asynchronous Signature Probe Option Specifications TABLE 1-1. SYNCHRONIZATION AND CONTROL Start Event: A selectable positive or negative edge on the Start line, or the Sync signal from the Interface Pod (when used). Stop Event: A selectable positive or negative edge on the Stop line, or the Sync signal from the Interface Pod (when used).
  • Page 13 The 32 samples terminate with the stop event. SYSTEM COMPATIBILITY Can be installed in the Fluke 9005A, 9010A, and 9020A mainframes. Cannot be used with 1802 interface pods. PROGRAM CONTROL All functions of the Asynchronous Signature Probe Option can be commanded from within a 9010A or 9005A user program.
  • Page 14 9000A-006 Service...

  • Page 15: Theory Of Operation

    9000A-006 Service Section 2 Theory of Operation INTRODUCTION 2-1. This section contains two block diagram descriptions of the Asynchronous Signature Module housed within the case of the 9000A Series Troubleshooter. The first block diagram description is general; it describes the operating concept of the Signature Module and its relationship to the Troubleshooter and UUT.
  • Page 16 9000A-006 Service Figure 2-1 shows that the Signature Module is connected across the pod bus. Connection to the bus allows the transmission of op codes and data to the module. Connection to the bus also allows the transmission of signature, events count, waveform data, and module status back to the Troubleshooter.

  • Page 17: Signature Module, General Block Diagram

    9000A-006 Service FIGURE 2-1. Signature Module, General Block Diagram The START, STOP, CLOCK, and ENABLE signals from the UUT are conditioned by the Clock Module and applied to the gate section of the module. The gate section also accepts the pod SYNC signal (produced by the Interface Pod) as a control signal. The main function of the gate section is to provide gated CLOCK signals to the CRC and events registers.
  • Page 18 9000A-006 Service Signature Module Op Codes TABLE 2-1. CODE FUNCTION Turn on the Signature Module to the pod bus (precede with delay) ENABLE signal to be from Clock Module ENABLE signal to be held in the high (enabled) state CLOCK signal to be from UUT via Clock Module...

  • Page 19: Detailed Block,Diagram Description

    9000A-006 Service placed on the bus until commanded to do so by the Troubleshooter. Since only four bits of signature data are placed on the pod bus at a time, four read operations are required by the Troubleshooter to shift all four characters of signature data through the CRC section and onto the bus.

  • Page 20: Control Section Block Diagram

    9000A-006 Service The Interface Pod and the Signature Module are both connected to the same I/0 port of the Troubleshooter, and the Signature Module examines each op code placed on the pod bus (by the Troubleshooter) to determine if the Signature Module should turn on or if the Interface Pod should be allowed to respond.
  • Page 21 9000A-006 Service When the Troubleshooter places a command (op code) on the pod bus destined for the Interface Pod, it pulls the MAINSTAT signal low. The MAINSTAT signal is fed through delay circuit U29/U52 and gate U37 out to the interface pod as the SW-MAINSTAT signal.

  • Page 22: Gate Section

    9000A-006 Service Gate Section 2-6. The main function of the gate section is to provide gated CLOCK pulses, using the START, STOP, CLOCK, ENABLE, and pod SYNC signals, as selected by the operator of the Troubleshooter. The gated CLOCK signals are required by the CRC section to clock in the data appearing at the data probe and to calculate the signature of the data occurring during the gate time.

  • Page 23: Gate Section, Block Diagram

    9000A-006 Service Assuming no STOP edge has yet been received, and assuming the enable level is in the enabled state, the enable gate (U49) provides a GATE-ON signal to the clock gate (U24 and U23) (and to the events and waveform sections).

  • Page 24: Crc Section

    9000A-006 Service Clock counter (U20A, U8 U9, U10) creates a STOP edge after a certain number of gated CLOCK pulses. This feature allows selection of agate time that is equivalent to a specified number of gated clock pulses. The clock counter receives the gated CLOCK pulses fed to the CRC and events sections and decrements from a preset (at the time of initialization) count.

  • Page 25: Events Section

    9000A-006 Service FIGURE 2-4. CRC Section, Block Diagram Events Section 2-8. The events section contains a 24-bit binary counter that consists of six 4-bit registers, U57 through U62. Each register has four-bit parallel inputs and outputs, where the output of the first is connected to the input of the second, etc.

  • Page 26: Waveform Section

    9000A-006 Service FIGURE 2-5. Events Section, Block Diagram Waveform Section 2-9. The function of the waveform section is to read the probe data on a continuous basis so that it always contains the last 640 nanoseconds of probe data in a binary form. Figure 2-6 shows that the waveform section consists of four 16-bit shift registers, each made up of two 8-bit shift registers connected in series.

  • Page 27: Waveform Section, Block Diagram

    9000A-006 Service FIGURE 2-6. Waveform Section, Block Diagram 2-13...
  • Page 28 9000A-006 Service At the end of a read probe operation (at the end of the gate time), the signature module transmits the waveform data to the Troubleshooter by first halting the 25 MHz shifting action of the registers. With the registers halted, the serial outputs of the four registers apply the oldest nibble of waveform data to the parallel input of the event counter.
  • Page 29 3. Using the procedures, and packaging and bench techniques that are recommended. The Static Sensitive (S.S.) devices are identified in the Fluke technical manual parts list with the symbol The following practices should be followed to minimize damage to S.S. devices.
  • Page 30 SUCKERS SHOULD BE USED. 11. ONLY GROUNDED TIP SOLDERING IRONS SHOULD BE USED. A complete line of static shielding bags and acces- sories is available from Fluke Parts Department, Telephone 800-526-4731 or write to: JOHN FLUKE MFG. CO., INC. ®...

  • Page 31: Maintenance

    The equipment required for the performance test and troubleshooting procedures contained in this section are listed in Table 3-1. Required Test Equipment TABLE 3-1. EQUIPMENT TYPE RECOMMENDED EQUIPMENT Microsystem Troubleshooter with Fluke 9010A with 006 option Signature Option Oscilloscope Tektronix 7904 Multimeter Fluke 8050A 40-Pin DIP Test Clip...

  • Page 32: Disassembly Procedure

    9000A-006 Service • Perform all repairs at a static-free work station. • Do not handle the contact points of the SMDs. • Attach grounding straps to repair personnel. • Remove all plastic, vinyl, and styrofoam from the work area. DISASSEMBLY PROCEDURE 3-6.

  • Page 33: Preliminary Troubleshooting

    9000A-006 Service PRELIMINARY TROUBLESHOOTING 3-7. Introduction 3-8. The following paragraphs provide information to aid in the troubleshooting of the Signature Module. The troubleshooting information is provided in descriptive form followed by tables of signatures for selected test nodes on the module. Since the Interface...

  • Page 34: Signature Troubleshooting Procedures

    9000A-006 Service Procedure, but only disconnect the largest of the four ribbon cables from the Troubleshooter main pcb assembly and the Signature Module. Install an SYP 6520 PIA (part number 536318) in the vacant socket to allow bypassed communication between the Troubleshooter and the Interface Pod.

  • Page 35: How The Stimulus Programs Work

    9000A-006 Service After the control and gate sections have been verified as operating normally, the connections are changed to allow the defective module to receive the control and data signals necessary to stimulate the signature, events, and output sections of the defective module.
  • Page 36 9000A-006 Service 2. With power off, connect a 40-pin DIP clip on U2 (6520 PIA) of the Signature Module. 3. Connect the leads of the Clock Module to the pins of the 40-pin DIP clip as listed in Table 3-2. The 40-pin DIP clip provides easy access to the pins of U2.
  • Page 37 9000A-006 Service 3. Take signatures at the nodes listed in Table 5-1 and verify that the signatures taken match those listed in the table. 4. If all signatures verify as correct, set up the test Troubleshooter as follows to take...
  • Page 38 9000A-006 Service...
  • Page 39 4-2. Components may be ordered directly from the manufacturer by using the manufacturer’s part number, or from the John Fluke Mfg. Co., Inc. or an authorized representative by using the Fluke Stock Number. In the event the part ordered has been replaced by a new or improved part, the replacement will be accompanied by an explanatory note and installation instructions if necessary.
  • Page 40 This kit contains those items listed in the REC QTY column for the parts lists in the quantities recommended. Parts price information is available from the John Fluke Mfg. Co., Inc. or its representative. Prices are also available in a Fluke Replacement Parts Catalog, which is available upon request.
  • Page 41 760033 89536 760033 CABLE TIE,6-3/4"L,0.190"W,1.75 DIA 104265 06383 SST-25 ACCESSORY KIT 764928 89536 764928 RES,CF,39K,+-5%,0.25W 442400 80031 CR251-4-5P39K 9000A-006 OPERATORS MANUAL 773259 89536 773259 9000A-006 SERVICE MANUAL 783944 89536 783944 CABLE, CASE BOTTOM 755744 89536 755744 CABLE, POWER 755751 89536...

  • Page 42: 9000A-006 Final Assembly

    9000A-006 Service FIGURE 4-1. 9000A-006 Final Assembly...
  • Page 43 9000A-006 Service Figure 4-1. 9000A-006 Final Assembly (cont)
  • Page 44 9000A-006 Service Figure 4-1. 9000A-006 Final Assembly (cont)
  • Page 45 9000A-006 Service TABLE 4-2. A1 MAIN PCA (SEE FIGURE 4-2.) REFERENCE FLUKE MFRS MANUFACTURORS DESIGNATOR STOCK SPLY PART NUMBER A->NUMERICS---> S ----------DESCRIPTION---------------- --NO-- CODE- --OR GENERIC TYPE-- ---------------- --------------------------------------- ------ ----- ------------------- 1- 15, 17, CAP,CER,0.O1UF,+-1O%,5OV,X7R,12O6 747261 89536 747261 18, 23- 34,...

  • Page 46: A1 Main Pca

    9000A-006 Service FIGURE 4-2. A1 Main PCA...

  • Page 47: A2 Clock Module Pca

    9000A-006 Service TABLE 4-3. CLOCK MODULE ASSEMBLY REFERENCE FLUKE MFRS MANUFACTURERS DESIGNATOR STOCK SPLY PART NUMBER A->NUMERICS---> S ----------DESCRIPTION--------------- --NO-- CODE- --OR GENERIC TYPE-- ---------------- -------------------------------------- ------ ----- ------------------- * CLOCK MODULE PCA 767897 89536 767897 FUSE,1/4 X 1-1/4,FAST,0.25A,25OV 1O9314...

  • Page 48: A2 Clock Module Pca

    9000A-006 Service FIGURE 4-3. A2 Clock Module PCA 4-10...
