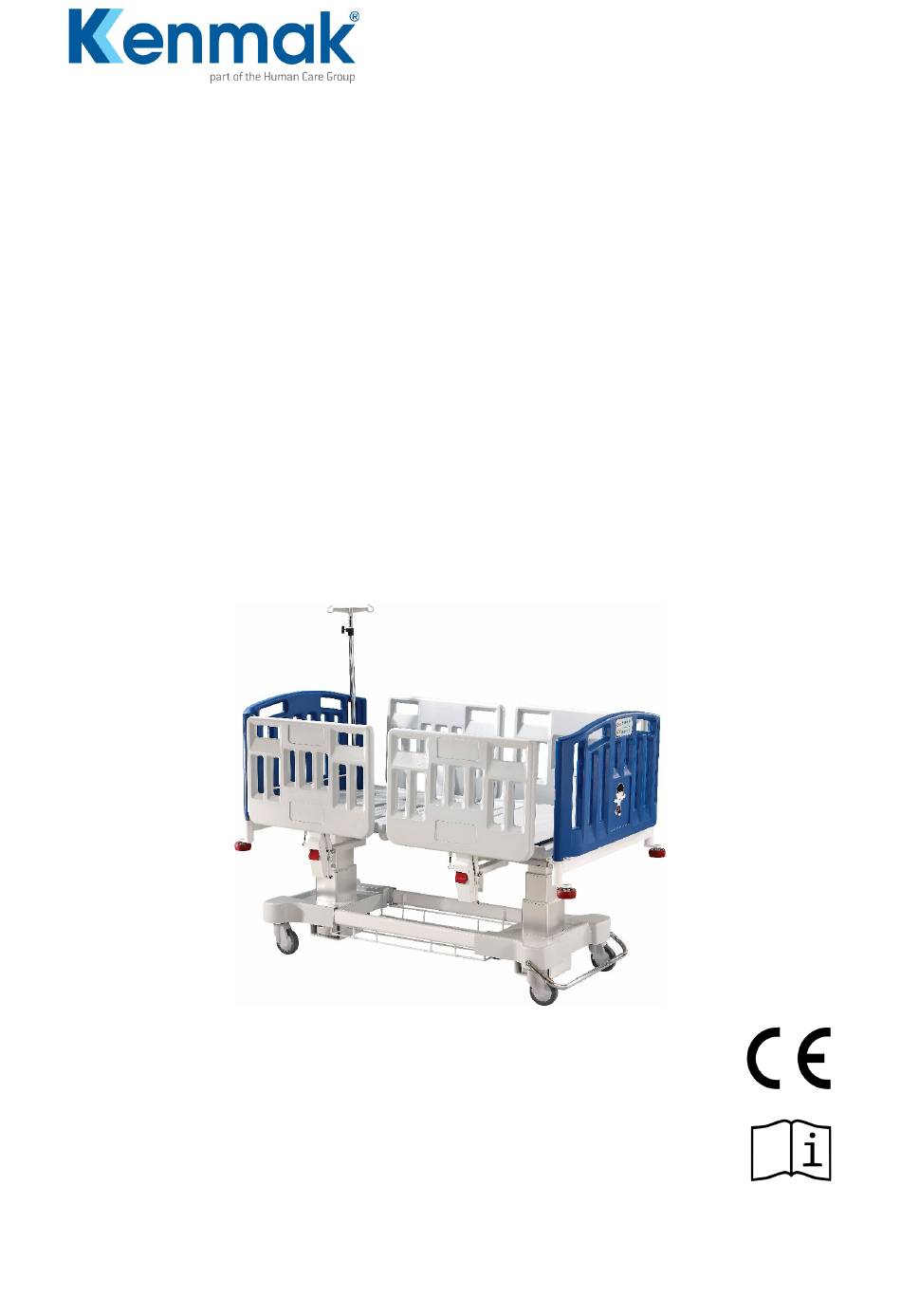

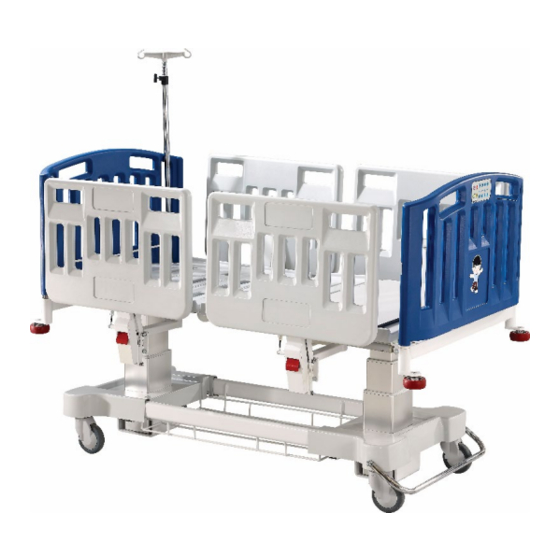

- Page 1 producing technology for health Instruction for Usage of Kenmak Hospital Beds Model: BAMBINO ELECTRICALLY OPERATED CHILD BED (ELECTRIC LENGTH EXTENSION) (COLUMN MOTORS) (4 MOTORS) Read user manual before using the bed!
-
Page 2: Table Of Contents
producing technology for health Table of Contents 1- Introduction 2- Intended Use 3- Warnings 4- General Features and Accessories 5- Electrical Motors 6- Assembly Instructions 7- Technical Details 8- Bed Safety Devices 9- Instructions for Use 10- Product Labelling 11- Battery 12- Environment, Transport and Storage 13- Maintenance and Reconditioning... -
Page 3: 1- Introduction
producing technology for health 1- Introduction Thank you for choosing your hospital bed from Kenmak Hospital Furniture. Every single Kenmak Hospital Furniture product is being produced under high quality standards bearing in mind to minimize the risk of environmetal reverse effect. Kenmak Hospital Furniture’s operation are certified by globally recognized authorities according to ISO 9001, ISO 13485 and ISO 14001 standards. -
Page 4: 2- Intended Use
producing technology for health 2- Intended Use BAMBINO Kenmak electrically operated child bed is produced with intend to be used in Intensive Care Units (ICU) of hospitals, nursing homes, and homes. Product should be used in suitable indoor atmosphere, between 0 to +40 degrees. -
Page 5: 3- Warnings
producing technology for health 3- Warnings Using the equipment for purposes other than those previously described is forbidden. The equipment must only be used by properly trained personnel. Before starting to operate the bed, the operator must be perfectly aware of how the bed works, of where the controls are located and of all technical-functional features. - Page 6 producing technology for health Never position the equipment close to heat sources. Position and secure the equipment in a stable manner on a horizontal floor. The bed movement area must be kept clean, in order and devoid of objects that could restrict free movement.
-
Page 7: 4- General Features And Accessories
producing technology for health 4- General Features and Accessories The patient bed backrest ,height , trendelenburg-reverse trendelenburg positions and electrical bed extension (length) are adjusted by electrical motors The electrical system is 220 Volt , 50 Hz line voltage , 24V output. It has self-chargable battery system for power failure. -
Page 8: 5- Electrical Motors
producing technology for health 5- Electrical Motors rated voltage distance: 220/240V input from the supply: 3,9A rated frequency: 50/60 Hz IP number: IPX4 mode of operation: AB 2 min on / 18 min off 6- Assembly Instructions The product is delivered fully assembled. -
Page 9: 7- Technical Details
producing technology for health 7- Technical Details - Possible bed positions: Height, backrest, legrest, Trendelenburg position and extension functions are adjustable by electrical motors. - Page 10 producing technology for health Height Range (excluding mattress): 48-87 cm - Backrest Angle: 0-70° - Knee Brake: 0-40° - Lenght (bumper to bumper): 177 cm - Width (bumper to bumper): 98 cm - Sleep Plane: 85 x 160-190 cm - Safe Working Load: 180 kg - Weight of Bed (excluding accessories): 130 kg...
-
Page 11: 8- Bed Safety Devices
producing technology for health 8- Bed Safety Devices Side Rails When raised, the prevent the patient accidentally falling out of bed, when lowered they allow free access to the bed. Parking Brake Prevents the bed from accidentally moving while the patient is getting in and out of bed. -
Page 12: 9- Instructions For Use
producing technology for health 9- Instructions for Use Before using the bed, carefully read all the instructions on the push button panel controls. Correct control learning will ensure proper and safe bed use. Prior to enabling the various bed movements, make sure that the patient does not have his/her arms located in any opening, for example in the protection safety sides or bed ends. - Page 13 producing technology for health Nurse control panel Memory (Chair) Button Legrest control buttons CPR Button Backrest + legrest control buttons Height control buttons Backrest control buttons Lock Button Use Lock Button to prevent unwanted bed movements with nurse control panes by patient. Light on: Lock active;...
-
Page 14: 10- Product Labelling
producing technology for health 10- Product Labelling 11- Battery Beds have back up battery in order to able to the user to use electrical bed functions during transport the patient on bed or during electricity cuts. The batteries must be recharged at least every 3 months, otherwise they will be damaged and will run down. -
Page 15: 12- Environment, Transport And Storage
producing technology for health 12- Environment, Transport and Storage Environment Kenmak is certified in accordance with ISO 14001 and work with continuous improvement to reduce total environmental impact. A primary focus is logistics where we have reduced our total environmental footprint. Our products are recyclable. -
Page 16: 13- Maintenance And Reconditioning
producing technology for health 13- Maintenance and reconditioning The bed is designed to require the minimum maintenance. It is recommended that preventive maintenance be carried out according to our service schedule every other year. Normal Cleaning Mechanics and motor systems are cleaned with a damp cloth. Readily available cleansers and disinfectants can be used. - Page 17 producing technology for health Date: 12.04.2021 User Manual Number: BAMBINO / R.210412 Please contact us for any questions: Kenmak Hastane Malzemeleri ve Elekt. Boya San. Ve Tic. A.Ş. Sarnıç Yolu No: 23 35414 Gaziemir, Izmir / TURKEY T: +90 232 274 17 17 kenmak@kenmak.com.tr www.kenmak.com.tr...
