Summary of Contents for ALPHA LITE CYC Series

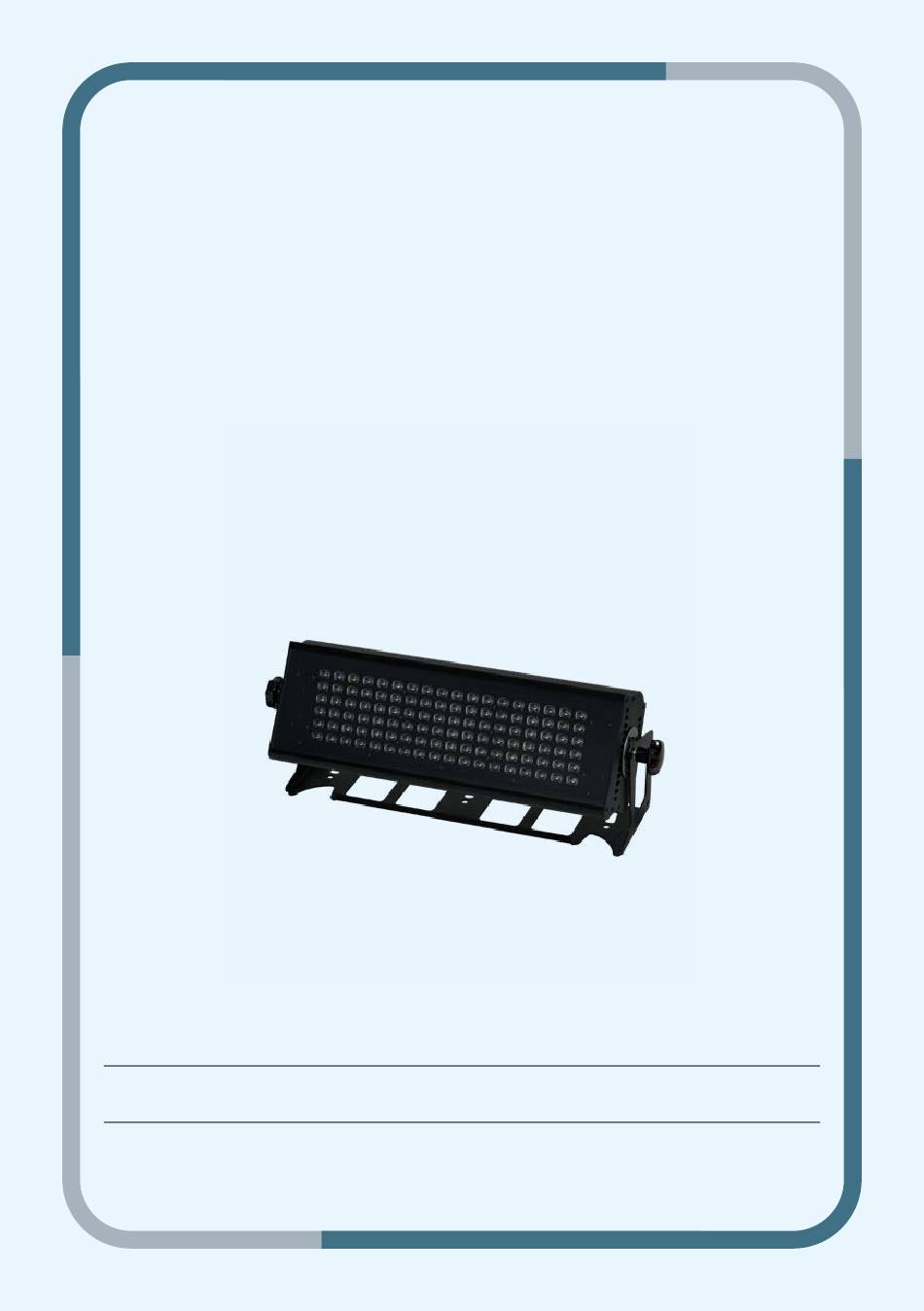

- Page 1 ALPHA LITE ALPHA LITE USER MANUAL USER MANUAL BOOK BOOK C Y C S E R I E S C Y C 5 0 0 C Y C 5 0 0...
- Page 2 Product name. CYC 500 Precautions 〔 WARNING 〕 Do not open or disassemble the cover to reduce the risk of electric shock. Please wear safety equipment such as safety helmet during work. Be sure to fix the safety chain on the product when installing and moving. Please install the signs below for people to bypass when install the product on high truss.
-
Page 3: Fixture Information
C o n t e n t s Safety Information Fixture Information Extra Function Fixture Information Sleep Mode Function RDM Function Fixture Exterior View Dimensions Dimming Speed Setup Master Function Technical Specifications Fixture ID Number Setup Device Label Setup Fixture Installation Power Connection Error Information DMX Connection... - Page 4 Product name. Product name. CYC 500 CYC 500 Product name. CYC500 ⇒ Evenly light distributes the horizont over 8m ⇒ Based on 6 colors of R, G, B, W, Amber + Royal Blue, perfect color presentation from primary color to pastel tone ⇒...
-
Page 5: Fixture Exterior View
ALPHA LITE ┃ USER MANUAL BOOK Fixture Exterior View Fixed Knob Smart Touch LCD Screen Connector Panel... - Page 6 Product name. CYC 500 Dimensions...
-
Page 7: Technical Specifications
ALPHA LITE ┃ USER MANUAL BOOK Technical Specifications 3W CREE XP-E x 108ea LED Chip Type 50,000 Estimated LED Lifetime (hours) Full Red + Green + Blue + Amber + White + Royal blue Full Color Light CRI 90-94 / TLCI 89... -
Page 8: Power Connection
3. If the operating voltage is out of the proper voltage range, SMPS function may be degraded or damaged. Power Pass-Thru : Based on operating voltage 240V and using the cable provided by ALPHA LITE. Start connection <Connect 01> <Connect 02>... -
Page 9: Dmx Connection
ALPHA LITE ┃ USER MANUAL BOOK DMX Connection 3-pin or 5-pin XLR sockets are equipped for DMX input and output, depending on user needs. Connect the controller to a lighting, or lighting fixture to other lighting fixture. If user uses a standard DMX controller, the DMX output of the controller can connect directly to the DMX input of the first fixture in the DMX chain. - Page 10 Product name. CYC 500 Unlocking When the fixture is turned on, the Smart Touch screen automatically locked. To unlock the touch screen, touch the finger icon( ) three times. If you do not touch for 30 seconds, the lock is reset. 〔...
- Page 11 ALPHA LITE ┃ USER MANUAL BOOK Screen Instructions 〔 Main Screen (Unlocked) 〕 〔 Setting Screen 〕 Display DMX MODE or USER MODE or COLOR MODE. Current Mode The current temperature of the instrument is detected and Fixture Current Temperature displayed in °C.
- Page 12 Product name. CYC 500 Menu Tree [ Main screen ] Home DMX512 Mode DMX mode select DMX address input Information DMX channel value User Mode Intensity setup Color temperature setup Tint setup Information Description of each function Color Mode RGB color setup Saturation setup White setup Full screen...
-
Page 13: Product Information
ALPHA LITE ┃ USER MANUAL BOOK Main Screen by Mode & Product Information Main Screen by Mode Information HOME DMX MODE USER MODE COLOR MODE The current mode is displayed in the upper left corner of the main screen among DMX mode, user mode and color mode, and the DMX address number of the equipment is displayed in the middle with a yellow number. -
Page 14: Dmx Mode
Product name. CYC 500 DMX Mode Channel Change & Address Setup DMX MODE : It is used to adjust value by DMX512 signal. HOME DMX512 MODE Move to the DMX channel change screen. In DMX512 MODE screen, user can select DMX channel mode on top tap. Input DMX512 address by pressing the number pad. - Page 15 ALPHA LITE ┃ USER MANUAL BOOK User Mode Setup & Intensity / CCT Adjust USER MODE : It is used when the user directly manipulates the equipment. HOME USER MODE Move to user-operable screen to change Intensity/CCT/Tint. 'Current Intensity' Activate control bar and adjust value directly 'Current CCT' according to selected function.
- Page 16 Product name. CYC 500 Color Mode Setup & RGB / Hue / Saturation / White Adjust COLOR MODE : It is used when the user directly manipulates the equipment. HOME COLOR MODE Move to user-operable screen to change Hue/Saturation COLOR MODE screen Touch the function you want to change Active in Orange ▶...
-
Page 17: Extra Function
ALPHA LITE ┃ USER MANUAL BOOK Extra Function – Sleep Mode / Master / RDM / Dimming Speed Move to additional settings other than the main icon. HOME SETTING SETTING screen Touch ON/OFF the function you want to change among SLEEP ▶... -
Page 18: Master Setup
Product name. CYC 500 Extra Function – Sleep Mode / Master / RDM / Dimming Speed Master Setup The master slave function allows to synchronize and control all connected lighting • fixtures through the DMX signal without a console connection. If a problem occurs in the console or communication line, it is possible to control •... - Page 19 ALPHA LITE ┃ USER MANUAL BOOK Fixture ID & Label Setup Move to fixture management number setting screen. HOME FIXTURE ID Move to input screen that can change the number Input the desired number 001 to ▶ 9999 and press Enter Move to the FIXTURE ID screen that displays the large size ▶...
-
Page 20: Error Information
Product name. CYC 500 Error Information Temperature Sensor Detects the temperature of the current fixture(LED source, housing) and displays it on the Smart Touch LCD screen. If the temperature If it exceeds exceeds 45˚C 46~69˚C 70˚C 85˚C 75˚C or less is cyan is yellow or more is red the actual LED... -
Page 21: Light Distribution
ALPHA LITE ┃ USER MANUAL BOOK Color Macro & Light Distribution Color Macro Color Macro(Ch.2 in 2 channel mode, Ch.8 in 9 channel mode) is rainbow gradation effect. The order is AMBER GREEN BLUE RGBA value Light Distribution ►(W)6m x (H)8m... -
Page 22: Dmx Protocols
Product name. CYC 500 DMX Protocols (1/3) Channel Mode Mode Channel DMX Value Function 0~255 0~100 Dimming 0~255 Color Macro Mode Channel DMX Value Function 0~255 0~100 0~255 0~100 Green 0~255 0~100 Blue 0~255 0~100 Amber 0~255 0~100 Royal Blue 0~255 0~100 White... - Page 23 ALPHA LITE ┃ USER MANUAL BOOK DMX Protocols (2/3) 2 & 9 Channel Mode : Color Macro DMX Value Color Value Color Macro DMX Value Function Color Macro 3200K 1 - 6 131 - 134 4500K 7 - 12 135 - 138...
- Page 24 Product name. CYC 500 DMX Protocols (3/3) 9 Channel Mode : Strobe [ Strobe ] DMX Value Channel Neutral / No effect 1 / Slow ~ 255 / Fast 1~255 RDM Protocols (1/3) Parameter ID Discovery command command command DISC_UNIQUE_BRANCH DISC_MUTE DISC_UN_MUTE DEVICE_INFO...
- Page 25 ALPHA LITE ┃ USER MANUAL BOOK RDM Protocols (2/3) Value User Device Property Description Remarks (Example) Setting Model number Device Model Description CYC500 Disable of the device Name of the Manufacturer Label ALPHA LITE Disable manufacturer ex) Input : HORI123 ·...
- Page 26 Product name. CYC 500 RDM Protocols (3/3) [ Sensor ] Value Device Sensors Description User Setting Remarks (Example) Current fixture Sensor Temp 64℃ Disable temperature [ Error Message ] Condition Level Description Display Sensor Over Temp Warning Fixture temperature 46 ~ 69˚C Orange message Sensor Over Temp Error...
- Page 27 ALPHA LITE USER MANUAL BOOK 82-2-6317-0464 <Tel > 82-2-2039-0464 <Fax> hello@alpha-lite.net <E-mail> www.alpha-lite.net <Web> 2-4 Floor, 5-8, Gyeongin-ro 88-gil,Yeongdeungpo-gu,Seoul,Republic of Korea, 07363...
