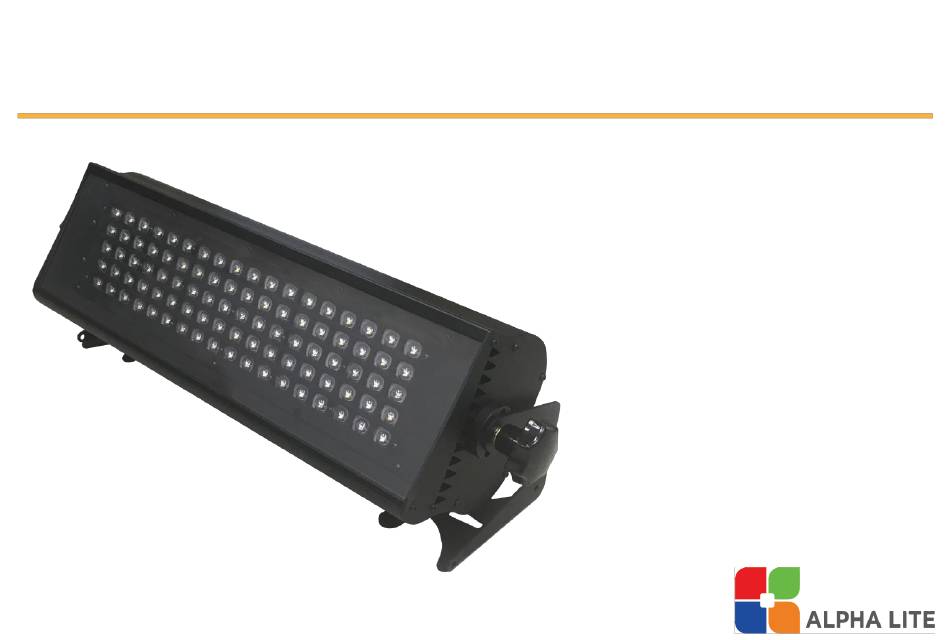

- Page 1 CYC HORI LIGHT CYC SERIES USER MANUAL July 2019...
-
Page 3: Safety Information
Safety Information 1. Do not open or disassemble the cover to reduce the risk of electric shock. 2. Please wear safety equipment such as safety helmet during work. WARNING 3. Be sure to fix the safety chain on the product when installing and moving. 4. -
Page 4: Table Of Contents
Contents Safety Information [Setting] [Error Information] Contents Temperature Sensor Mode Change [Fixture Information] Network Connection Channel Mode Change [Function Information] Fixture Information DMX512 Address Setup Channel Mode Fixture Exterior View Hue & Brightness Adjsut (CYC400/500/800) Dimensions White Balance Adjust Color Macro Technical Specifications Light Distribution Fixture ID Setup and Change... -
Page 5: Fixture Information

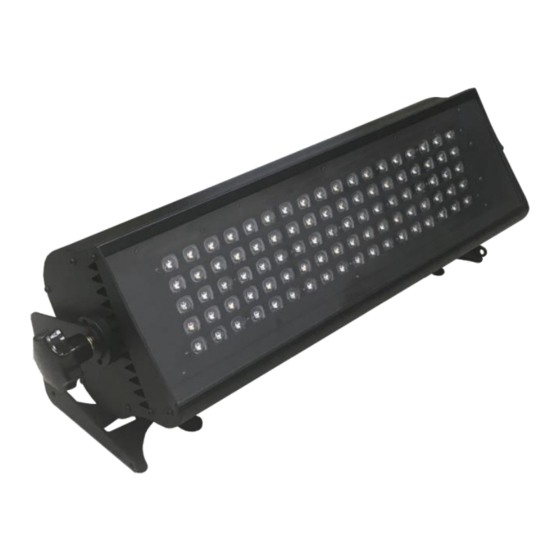

Fixture Information CYC Series is LED light for broadcast studio and theatre. Composed of R, G, B, Ambar and white color LED lighting which user can illuminate the custom color to the horizon wall of 8m or more. - 5 -... -
Page 6: Fixture Exterior View
Fixture Exterior View Connector Smart Touch LCD Screen Panel Fixed Knob - 6 -... -
Page 7: Dimensions
Dimensions (CYC400) - 7 -... - Page 8 Dimensions (CYC500) (inch) - 8 -...
- Page 9 Dimensions (CYC800) (inch) - 9 -...
-
Page 10: Technical Specifications
Technical Specifications CYC400 CYC500 CYC800 Physical Size 520 x 206 x 176mm 670 x 206 x 176mm 860 x 206 x 176mm LED Chip CREE XP-E 3W 60ea CREE XP-E 3W 90ea CREE XP-E 3W 120ea Beam Angle 60x135° / 85x150° / 130x60° / 20x60° / 30x60° / 40x60° Weight (kg/lbs) 6.5 / 14.3 8.1 / 17.8... -
Page 11: Power Connection
Power Connection AC power at 100-240V, 50-60Hz 1. POWER ON/OFF SWITCH 2. POWER IN 3. POWER OUT 4. DMX IN 5. DMX OUT USB PORT (for ADMINISTRATOR ONLY) (Do not connect USB without administrator's permission.) 1. Observe the proper voltage range 2. -
Page 12: Dmx Connection
DMX Connection 3-pin or 5-pin XLR sockets are equipped for DMX input and output, depending on user needs. Connect the controller to a lighting, or lighting fixture to other lighting fixture. If user uses a standard DMX controller, the DMX output of the controller can connect directly to the DMX input of the first fixture in the DMX chain. -
Page 13: Unlocking
Unlocking Main Screen (Locked) Fixture ID Screen (Locked) When the fixture is turned on, If the power is turned off and then on again the Smart Touch screen automatically locked. while the fixture ID number screen is displayed, To unlock the touch screen, the fixture ID lock screen will appear. -
Page 14: Main Screen Instruction
Screen Instruction Current Mode Display DMX MODE or USER MODE or SERIAL MODE. Wirelss Signal sensitivity is displayed in % only when set to Wireless Signal (Option) ‘Wireless Enable’. DMX512 Address Display current DMX512 Address. Color Picker Touch the desired color to change the light color. Screen Rotation LCD screen is rotated 180°... -
Page 15: Mode Change
[Setting] Mode Change - DMX Mode It is used to adjust by DMX512 signal. - User Mode It is used when the user directly manipulates the equipment. - Serial Mode It is used for maintenance. ■ DMX Mode → User Mode When in DMX mode, user can change to user mode by touching ‘Main screen - Color Picker, White Balance, Hue’, or adjusting ‘Setting - Hue, White Balance’. -
Page 16: Channel Mode Change
[Setting] Channel Mode Change ■ Channel Mode Change User can change the channel by selecting 'Current channel mode' in main screen or ‘DMX512 - Channel selection - DMX address' in setting. Pressing the icon in 'Channel Mode' displays information for each channel. See p. -
Page 17: Dmx512 Address Setup
[Setting] DMX512 Address Setup ■ DMX512 Address Setup in the Main Screen Touch 'DMX512 Address' on the main screen to switch to the input window. 001~512 value can be entered. Press icon to save the DMX512 adress and move to the main screen. Also, the value can changed by RDM. -
Page 18: Hue & Brightness Adjsut
[Setting] Hue & Brightness & White Balance Adjust ■ Hue & Brightness Adjust Touch ‘Color Picker’ on the Touch ‘Hue & Brightness’ on the main screen or the setting screen to main screen to adjust the adjust color, saturation and brightness. desired color easily. -
Page 19: Fixture Id Setup And Change
[Setting] Fixture ID Setup and Change ■ Fixture ID Setup and Change Touch on the main screen, the ID is displayed large on the screen, and touch the number to switch to the input window. It is a number for the management of the equipment and can be changed by the user. User can enter the value from 001~999, and touch after input to switch to the main screen. -
Page 20: Lcd Off Setup
[Setting] LCD Off Setup & LCD Rotation Setup ■ LCD Off Setup Touch 'LCD Off Setup' on the setting screen to display the above selection screen. - LCD Off Enable : The screen automatically turns off after 30 seconds, if there is no touch operation. - LCD Off Disable : The screen stays on all the time. -
Page 21: Rdm Setup
[Setting] RDM & Dimming Speed Setup ■ RDM Setup Touch ‘RDM Setup' on the setting screen to display the above selection screen. - RDM Enable : Enable RDM communication function. - RDM Disable : Disables RDM communication function. (Default) ■ Dimming Speed Setup Touch ’Speed Setup' on the setting screen to adjsut the dimming speed value. -
Page 22: Master Setup
[Setting] Master & Wireless Setup ■ Master Setup Touch ‘Master Setup' on the setting screen to display the above selection screen. Master setting allows user to synchronize and control all fixtures without a console connection - Master Enable : Enable Master function. - Master Disable : Disables Master function. -
Page 23: Error Information
Error Information Temperature Detects the temperature of the current fixture(LED, drive, housing) and displays it on Sensor the Smart Touch LCD screen. 0˚C or less is white, 0~69˚C is yellow, and 70˚C or more is red. If the temperature exceeds 78˚C, 'Temperature Error !!' and 'Please Check Device !!' will be repeatedly displayed, and the actual LED output will be 60%. - Page 24 Mode & DMX Channel (CYC400/500/800) Mode Channel Value Function 0-255 0-100 Dimmer 2 CH 0-255 Color Macro 0-255 0-100 0-255 0-100 Green 5 CH 0-255 0-100 Blue 0-255 0-100 Amber 0-255 0-100 White 0-255 0-100 Dimmer 0-255 0-100 0-255 0-100 Green 6 CH 0-255...
-
Page 25: Color Macro
Color Macro & Light Distribution ■ Color Macro Color Macro express rainbow gradation effect. The order is Red -> Amber -> Green -> Blue. ■ Light Distribution 6m(w) x 8m(h) 12m(w) x 8m(h) - 25 -... -
Page 26: Dmx Protocols
DMX 프로토콜 DMX Value Color Value Color Macro DMX Value Color Value Color Macro DMX Value Color Value Color Macro 3200K 95~98 179~182 7~12 4500K 99~102 183~186 13~18 5600K 103~106 187~190 19~24 7000K 107~110 191~194 25~30 10000K 111~114 195~198 31~34 115~118 199~202 35~38... -
Page 27: Rdm Protocols
RDM Protocols(1/3) Parameter ID Discovery command SET command GET command DISC_UNIQUE_BRANCH DISC_MUTE DISC_UN_MUTE DEVICE_INFO SUPPORTED_PARAMETERS SOFTWARE_VERSION_LABEL DMX_START_ADDRESS IDENTIFY_DEVICE DEVICE_MODEL_DESCRIPTION MANUFACTURER_LABEL DEVICE_LABEL SENSOR_DEFINITION SENSOR_VALUE DMX_PERSONALITY DMX_PERSONALITY_DESCRIPTION STATUS_MESSAGES Lamp Controls Control Property Value (Example) Description User Settings Remarks Identify On Device identification action active Enable Identify device = Same as On Identify Off... - Page 28 Device Property Value (Example) Description Setting Device Model Description CYC500 Model number of the device Disable Manufacturer Label ALPHA LITE Name of the manufacturer Disable ex) Input : HORI123 ►Name : HORI123 Device Label HORI123 Fixture name and management number Enable ►Management # : 123...
- Page 29 RDM Protocols(3/3) Sensor Device Sensors Value (Example) Description User Setting Remarks Sensor Temp 64 ˚C Current fixture temperature Disable Error Message Condition Level Description Display Sensor Over Temp Warning Orange message Fixture temperature 78 ~ 85˚C Sensor Over Temp Error Red message Fixture temperature over 85˚C Table 1.
- Page 30 LED Intelligent Lighting Solution For more information and questions, please visit our website or call. ALPHA LITE Co., Ltd. Floor, 5-8, Gyeongin-ro 88-gil, Yeongdeungpo-gu, Seoul, Republic of Korea, 07363 Email hello@alpha-lite.net (+82) 2-6317-0464 (+82) 2-2039-0464 www.alpha-lite.net...
