Mutable Instruments | Anushri - Assembly instructions

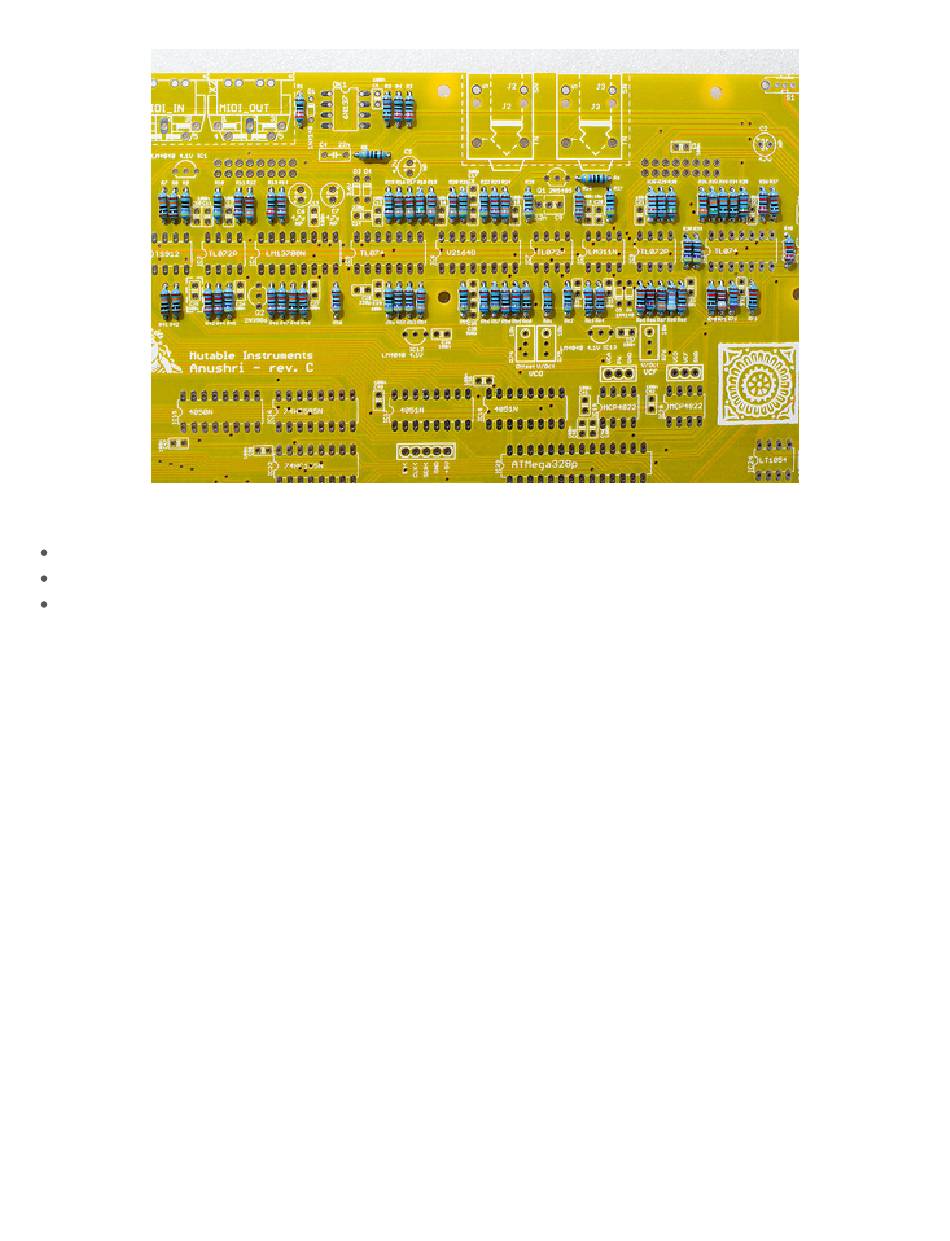

The 100k's decade:
9x 100k (brown, black, black, orange) at positions R7, R8, R33, R34, R41, R42, R48, R60, R61.
1x 150k (brown, green, black, orange) at position R32.
4x 200k (red, black, black, orange) at positions R15, R58, R65, R69.
Diodes
Diodes are polarized, and their polarity is indicated by a ring. This should match the ring/stripe
printed on the circuit board.
