Mutable Instruments | Anushri - Assembly instructions
Anushri is made of two circuit boards. The first board (main board) is holding the power supply, the
whole analog synthesis signal chain, the MIDI interface and the main processor. The second board

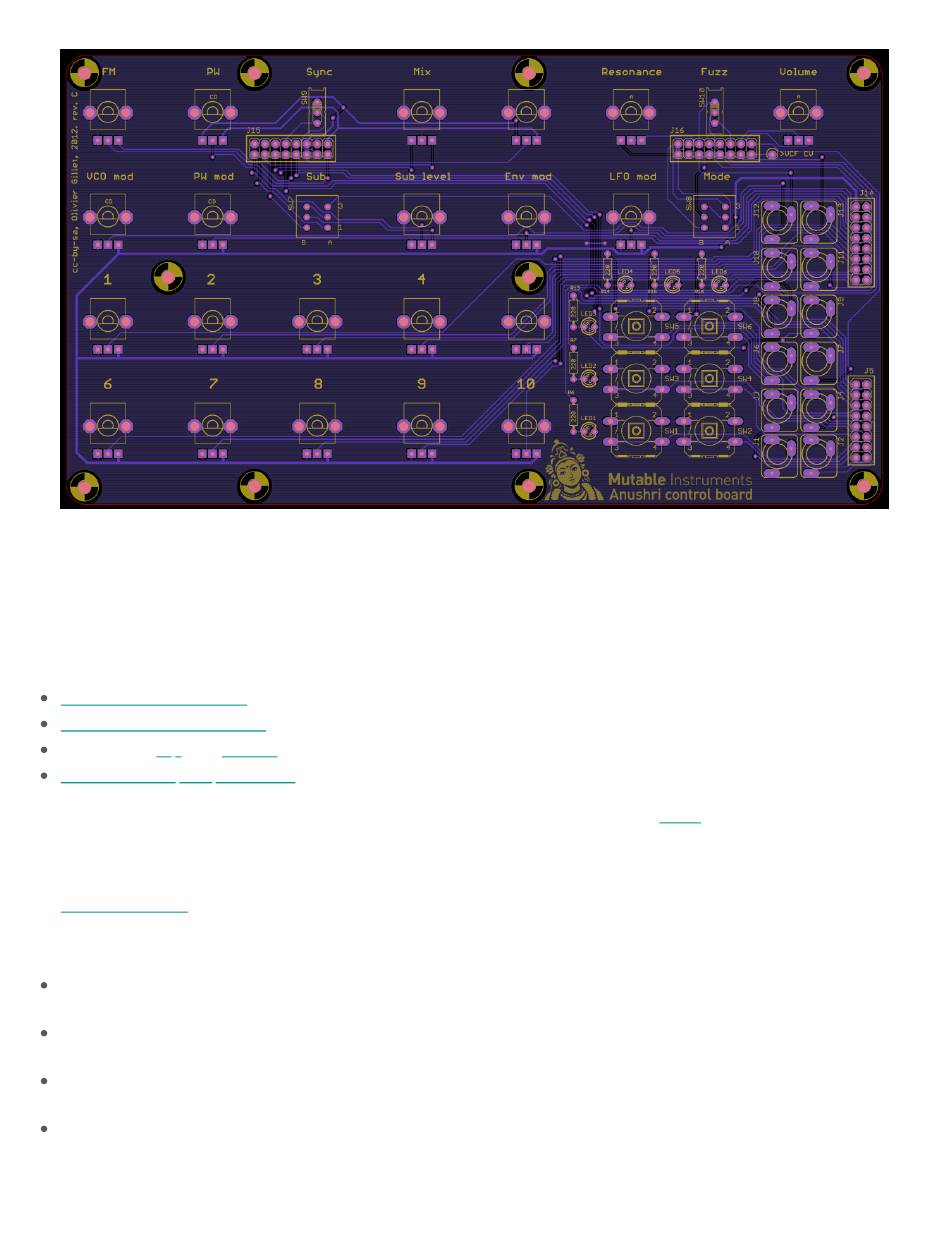

(control board) contains all the controls (switches, pots, LEDs, and connectors). A consequence of
that is that builders with a love for panel-mounted controls can build the main board and just wire all
the controls to it. We don't recommend that unless you have some insane passion to show.
SCHEMATICS AND PCB
Main board schematics
Control board schematics
Main board top and
Control board part
You can find the Eagle files for this board in the source code hosted on github.

BILL OF MATERIALS

Bill of Materials.
Some friendly notes for the self-sourcing crowd:
Digikey resistor values might be a bit different due to strict adherence to the E-series. This is not a
problem.
A J112 can be used as a substitute for the 2N5458. A BF245 can also be used, but it needs to be
mounted backwards because of a different pinout.
The TS912 is an unusual - but justified here - choice of op-amp. Look for +/- 5V operation and true rail
to rail I/O if you want to source a substitute.
Voltage references (LM4040) are available in different precision grades identified by letters A, B, C, D.
https://mutable-instruments.net/archive/anushri/build/
in PDF format.
in PDF format.
bottom part placement.
placement.
