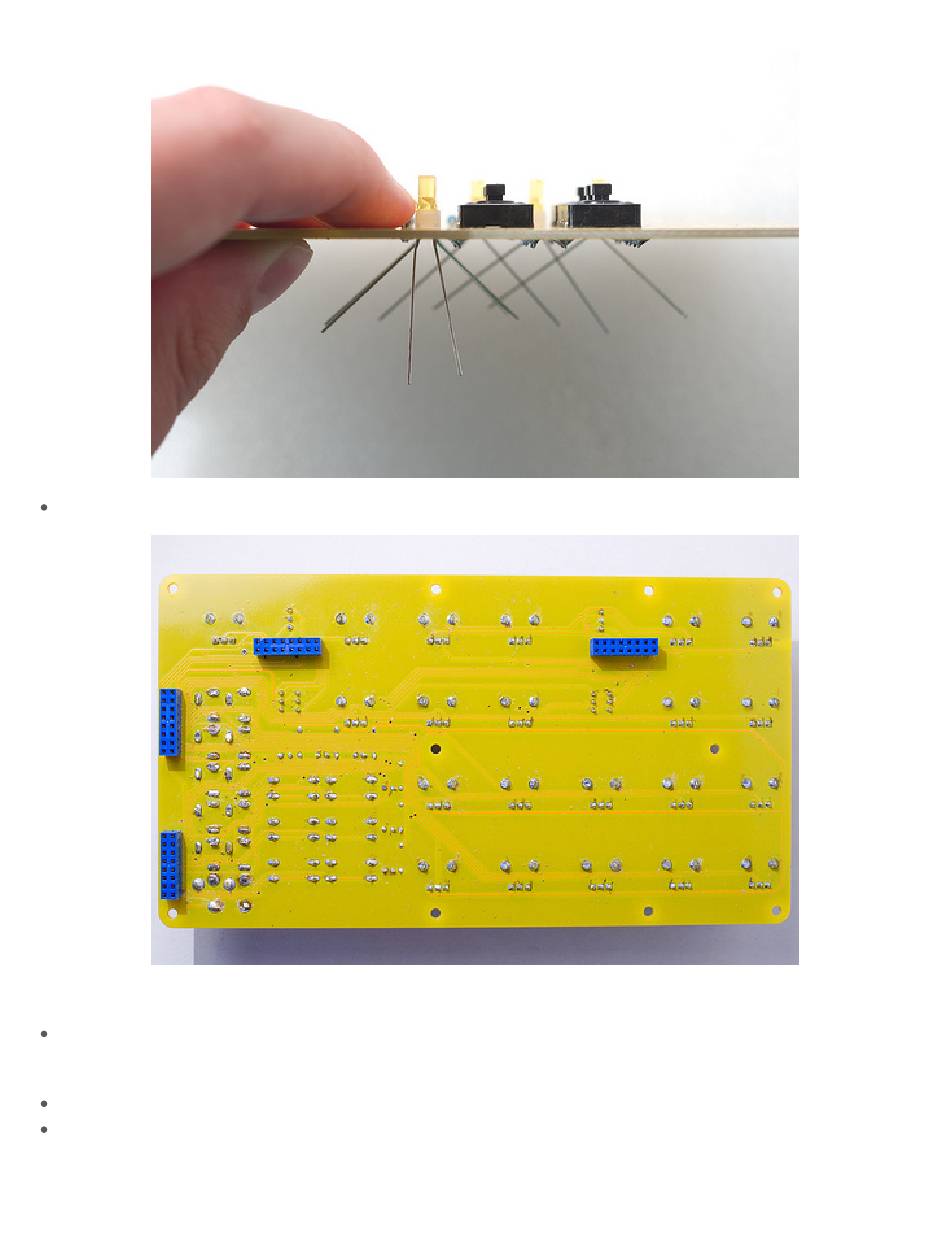

Add the 4x 2x8 female connectors on the other side of the board.
Anushri uses three different kinds of pots. Don't mix them up!
Add the 12x jack connectors. It is recommended to solder only one leg (the middle one) of all of them
first, so that their position can be easily tweaked for optimal alignment. Once you are satisfied with their
alignment, solder the two remaining legs.
Add the 2x DPDT and 2x SPDT switches.
Add the 2x 100k pots with audio taper (resonance and main volume). An A is printed on the pot symbol
