Now, let's move to the control board.
Add the 6x 220R resistors (red, red, black, black).
Add the 6x switches.

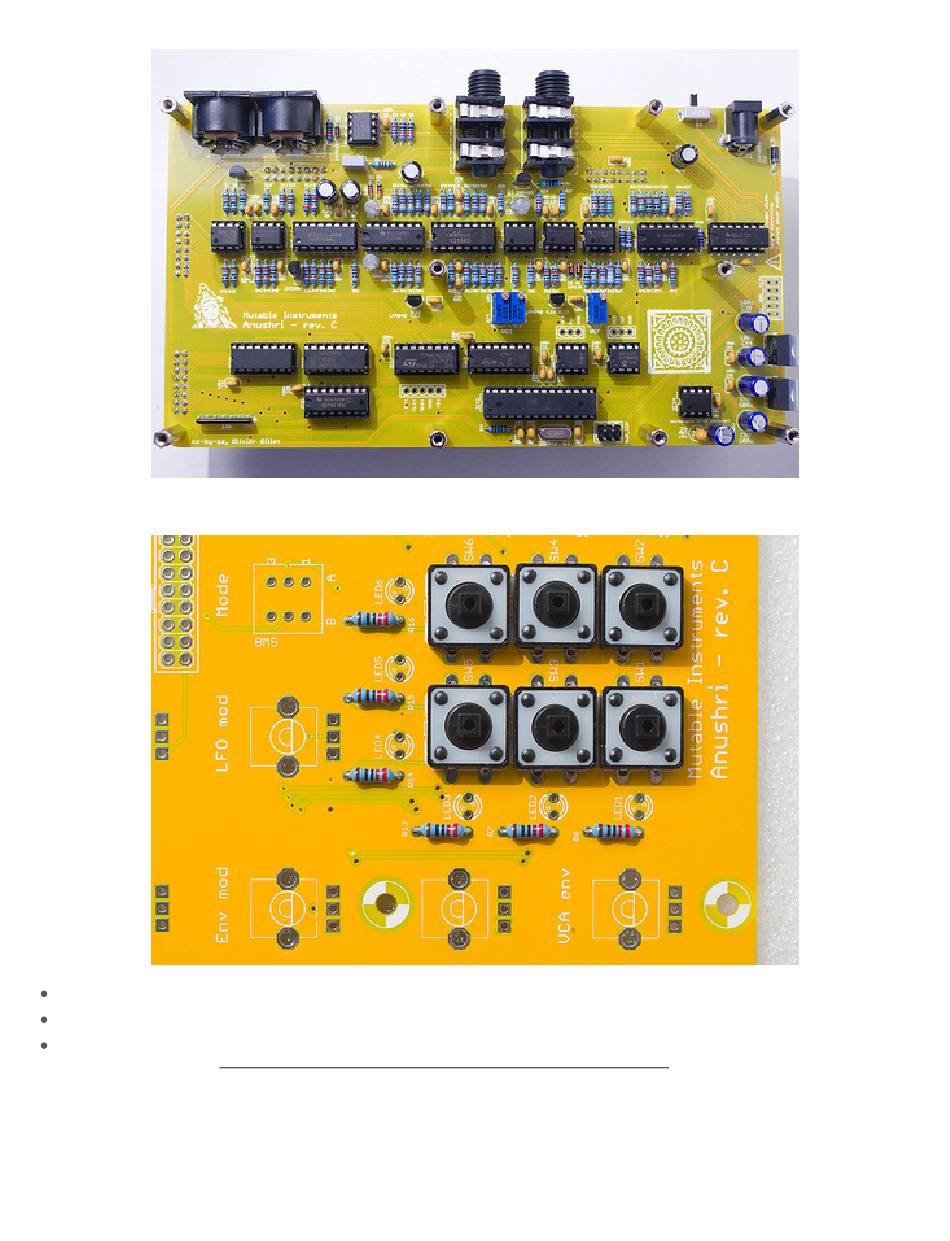

Add the 6x LEDs. Note that they are polarized. The symbol printed on the board shows a round side
(+) and a flat edge (). The long lead of the LED is the (+), the short one the (). See the image below for
reference.
