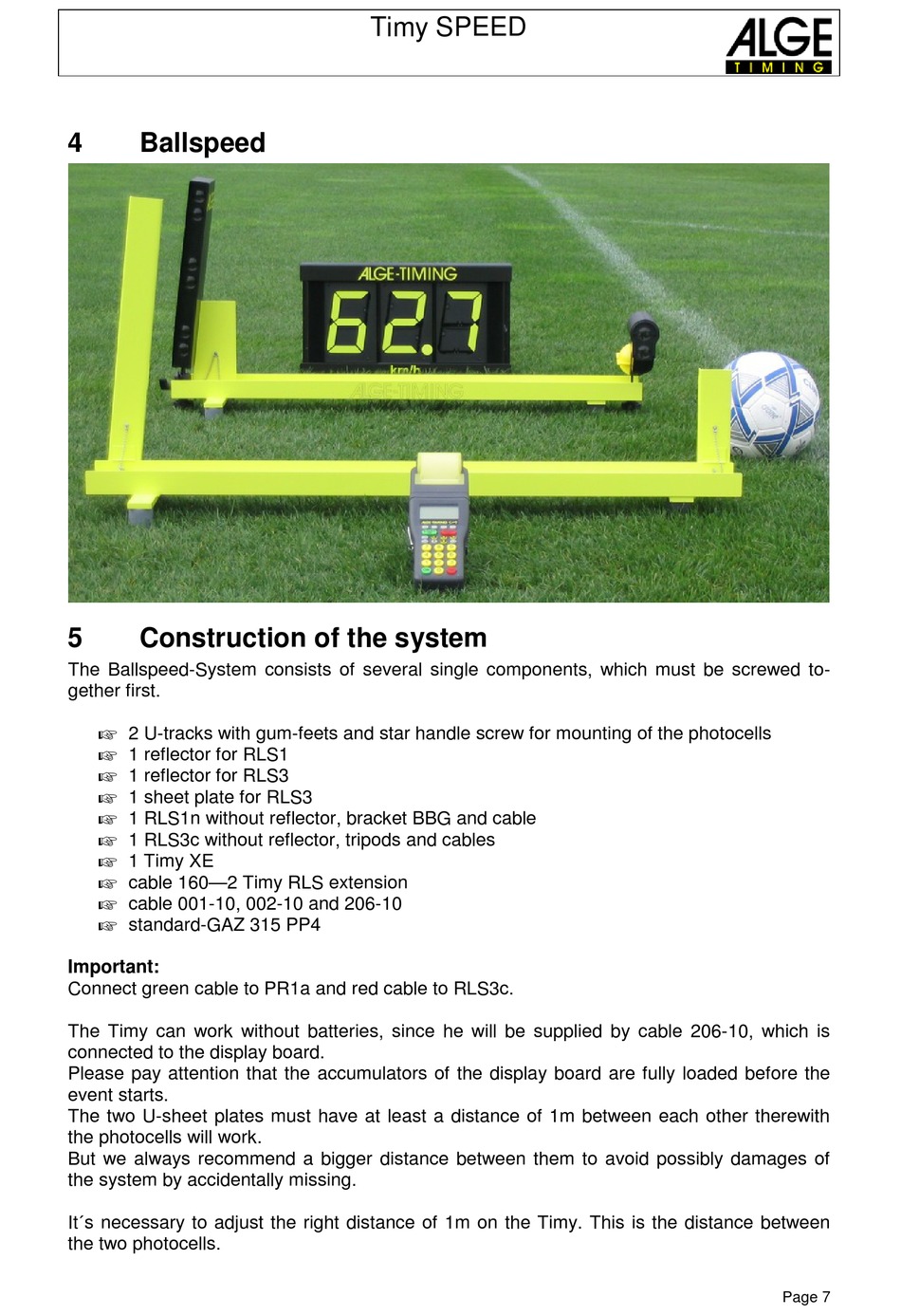

Ballspeed
5
Construction of the system
The Ballspeed-System consists of several single components, which must be screwed to-
gether first.
2 U-tracks with gum-feets and star handle screw for mounting of the photocells
1 reflector for RLS1
1 reflector for RLS3
1 sheet plate for RLS3
1 RLS1n without reflector, bracket BBG and cable
1 RLS3c without reflector, tripods and cables
1 Timy XE
cable 160—2 Timy RLS extension
cable 001-10, 002-10 and 206-10
standard-GAZ 315 PP4
Important:
Connect green cable to PR1a and red cable to RLS3c.
The Timy can work without batteries, since he will be supplied by cable 206-10, which is
connected to the display board.
Please pay attention that the accumulators of the display board are fully loaded before the
event starts.
The two U-sheet plates must have at least a distance of 1m between each other therewith
the photocells will work.
But we always recommend a bigger distance between them to avoid possibly damages of
the system by accidentally missing.
It´s necessary to adjust the right distance of 1m on the Timy. This is the distance between
the two photocells.
Timy SPEED
