3

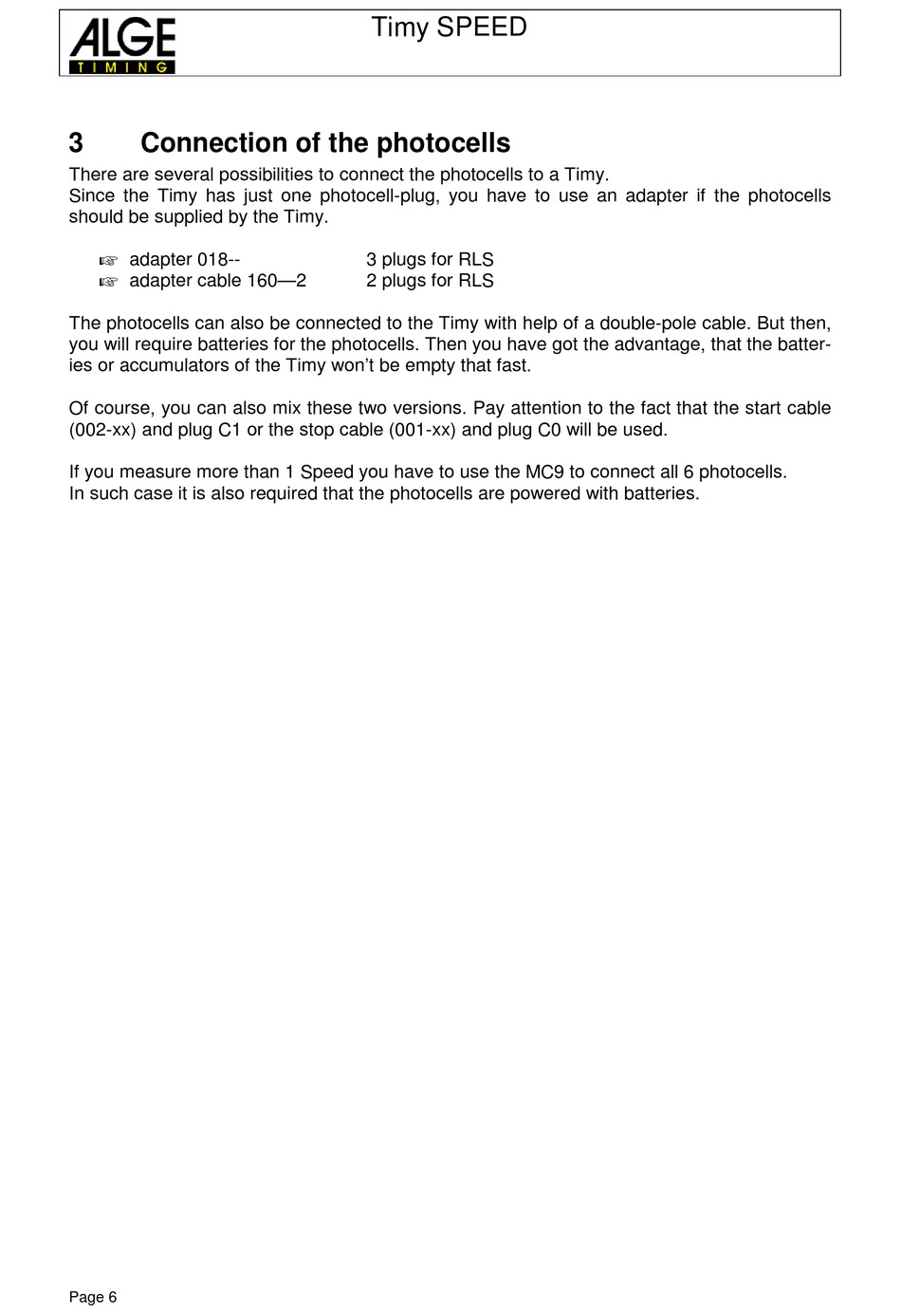

Connection of the photocells
There are several possibilities to connect the photocells to a Timy.
Since the Timy has just one photocell-plug, you have to use an adapter if the photocells
should be supplied by the Timy.
adapter 018--
adapter cable 160—2
The photocells can also be connected to the Timy with help of a double-pole cable. But then,
you will require batteries for the photocells. Then you have got the advantage, that the batter-
ies or accumulators of the Timy won't be empty that fast.
Of course, you can also mix these two versions. Pay attention to the fact that the start cable
(002-xx) and plug C1 or the stop cable (001-xx) and plug C0 will be used.
If you measure more than 1 Speed you have to use the MC9 to connect all 6 photocells.
In such case it is also required that the photocells are powered with batteries.
Page 6
Timy SPEED
3 plugs for RLS
2 plugs for RLS
