  • Page 1 Version-E23-10-31 Photocell Manual...
  • Page 2 Important Information General Before using your ALGE-TIMING device read the complete manual carefully. It is part of the device and contains important information about installation, safety and its intended use. This manual cannot cover all conceivable applications. For further information or in case of problems that are mentioned not at all or not sufficiently detailed, please contact your ALGE-TIMING representative.
  • Page 3 ALGE-TIMING GmbH Rotkreuzstrasse 39 A-6890 Lustenau Declare under our sole responsibility, that the: Photocell PR1aW complies with the following standards/normative documents and in case of intended use com- plies with the basic requirements of R&TTE 1999/5/EC: Telecommunication (TC)terminal device Short Range Device Applied harmonized standards…...
  • Page 4 Manual PR1aW Page 4...

  • Page 5: Table Of Contents

    Contents General ......................... 6 Functionality ......................6 Photocell Features ....................6 Photocell Sets ....................... 6 1.3.1 Reflection photocell PR1aW-R: ....................... 7 1.3.2 Reflection photocell PR1aW-RT: ..................... 7 1.3.3 One-way photocell PR1aW-dT: ....................... 7 Operating Modes ......................7 Reflection Photocell – NORM ................7 One-way Photocell ....................

  • Page 6: General

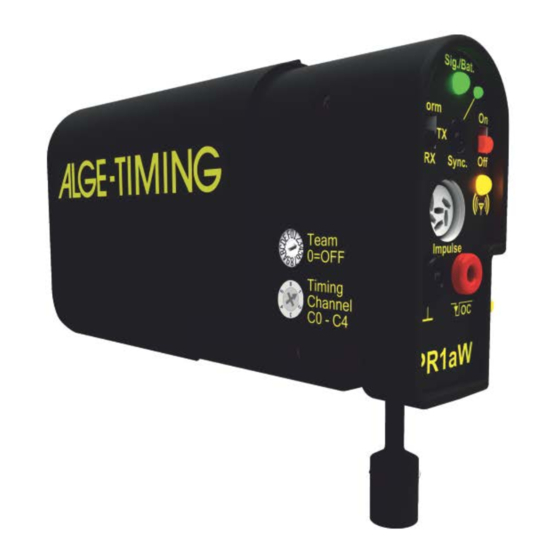

    Manual PR1aW General The photocell PR1a combines highest precision and performance with smallest dimensions. 1.1 Functionality The photocell transmitter sends a modulated light beam in infrared range. The receiver moni- tors the light beam for disruptions. In case of a disruption of the infrared beam the receiver releases a pulse.

  • Page 7: Reflection Photocell Pr1Aw-R

    Photocell set: 1 x PR1aW, 1 x PR1a-Ref, 2 x BBG, 1 x 001-10 (10m) 1.3.2 Reflection photocell PR1aW-RT: Same as reflection photocell PR1aW-R, without mounting brackets BBG but with tripods and 30 m photocell cable. Range: approx. 24 m...

  • Page 8: Power Supply

    Manual PR1aW Power Supply The photocell can be supplied in different ways. The easiest supply is carried out with the included cable 001-10 (or 001-30) directly from the ALGE timing device. In radio mode the photocell must be supplied with batteries (2 x AA battery in photocell).

  • Page 9: Insert Batteries

    28 h apporx. 35 h If the photocell PR1aW is used as a transmitter it almost has the same operating time as in reflection photocell mode; for a receiver it is three times higher as for the reflection photocell.

  • Page 10: Alignment Of Photocell

    Manual PR1aW Alignment of Photocell 5.1 Reflection Photocell • If you use the photocell in the radio mode please check if you have full batteries in the battery compartment. • Adjust with rotation switch used Radio Team (same radio team as other network mem- bers).

  • Page 11: Setting Of Delay Time

    Manual PR1aW • Switch operating mode of receiver photocell to RX – LED works like the one of the reflec- tion photocell. • After each photocell pulse the operating mode LED of the receiver photocell flashes green for several seconds (indication for good photocell reception) before the battery condition is indicated again.

  • Page 12: Weather Protection

    Manual PR1aW Weather protection The weather protection can be pulled out. With pulled out Pull out weather protection weather protection the lenses are protected from snow and rain. If the photocell is used on a glacier it is essential to pull out the weather protection.

  • Page 13: Radio Function

    The ALGE Wireless Timing Network WTN is a compact radio system for timing and is equipped with the most updated technology. The photocell PR1aW has a WTN-radio module built in and is fully compatible with other devices of the WTN-family.

  • Page 14: Radio Power Output

    (e.g. Wireless Timing Network WTN), than it will set all devices in this network to the new adjusted power output (also as well the photocell PR1aW). 7.2 Switching the Radio Module On or Off If you have the rotation switch on zero the radio is off.

  • Page 15: Adjustment Of Timing Channel

    The factory setting: C1 Selection: C0, C1, C2, C3 or C4 Adjust the timing channel here For ALGE-TIMING the following timing channels are used: 0 = C0 = Start Channel 1 = C1 = Finish Channel 2 = C2 = Intermediate Time 1...

  • Page 16: Technical Data

    10 mW or 10 to100 mW (adjustable) Timing Channels: 5 different timing channels (c0 (start), c1 (finish), c2, c3, c4) Maximum Distance: about 300 m at free sight Subject to changes ALGE-TIMING GmbH Rotkreuzstraße 39 A-6890 Lustenau Austria Tel: +43-5577-85966 Fax: +43-5577-85966-4 office@alge-timing.com...
