Summary of Contents for ALGE-Timing Windspeed WS2

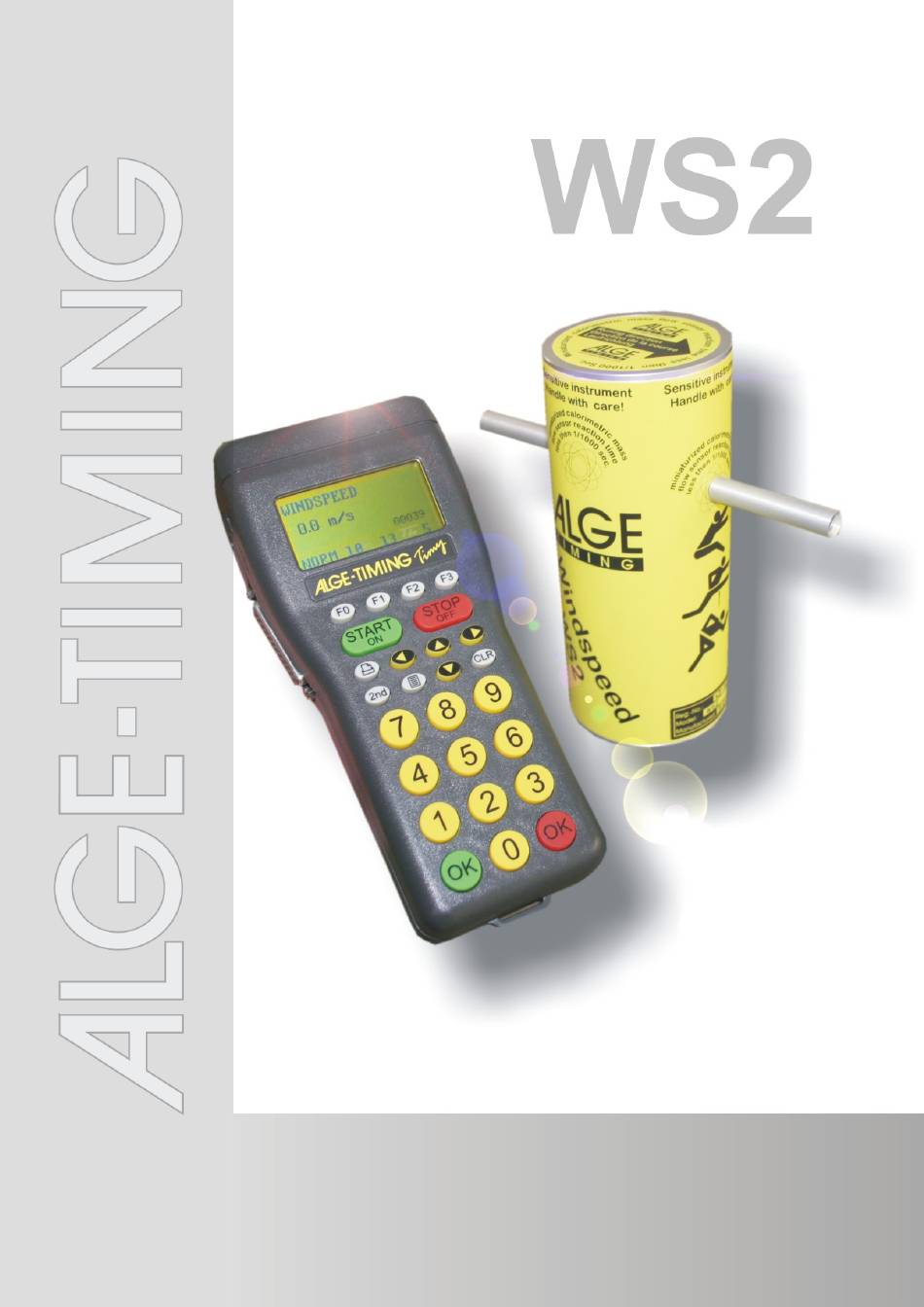

- Page 1 Version-E171009 Manual...
- Page 2 Important Information General Before using your ALGE-TIMING device read the complete manual carefully. It is part of the device and contains important information about installation, safety and its intended use. This manual cannot cov- er all conceivable applications. For further information or in case of problems that are mentioned not at all or not sufficiently detailed, please contact your ALGE-TIMING representative.
-
Page 3: Table Of Contents
Anemometer with Timy and Photofinish System ................. 6 Anemometer with Radio System WTN-WS ................. 7 Mounting of the anemometer WS2 ..................9 Operation of the anemometer WINDSPEED WS2..............9 Display indication ........................10 Settings for the Displayboard ....................10 D-LINE Scoreboards ......................... 10 GAZ Scoreboards ........................ -
Page 4: General
It is very important, that the air supply through the tubes is always ensured in the same way, that means that the tubes must not be plugged. System components: • Wind measuring device WINDSPEED WS2 • Terminal TIMY • Cable reel KT-WS100 with 100m cable (wind measuring device to terminal or •... -
Page 5: Set Up Of The System
3 Set Up of the System There are several possibilities to connect the Windspeed WS2 to a photofinish. Of course you can use the Windspeed WS2 as well without photofinish with a Timy2 or Timy3 for long jump and triple jump. -
Page 6: Anemometer With Optic2
Windspeed WS2 Anemometer with OPTIc2 In this configuration the Timy is connected directly via USB-Cable to the photo finish com- puter. Anemometer with Timy and Photofinish System The Timy2 or Timy3 is connected by cable 246-02 and cable reel KT245K10 with the ane- mometer WS2. -
Page 7: Anemometer With Radio System Wtn-Ws
Windspeed WS2 Anemometer with Radio System WTN-WS The anemometer WS2 communicates with the Timy3 W by radio. The power supply for the WS2 and WTN-WS comes from the wind display board D-LINE. Page 7... - Page 8 Windspeed WS2 The anemometer WS2 communicates with the Timy3 W by radio. The power supply for the WS2 and WTN-WS comes from an external supply (e.g. Battery Backup Device BBG or 12V battery). Page 8...
-
Page 9: Mounting Of The Anemometer Ws2
!! 5 Operation of the anemometer WINDSPEED WS2 The handling of the program is very easy. As soon as all components are connected, you just have to chose the desired wind-measuring-type. -
Page 10: Display Indication
Windspeed WS2 Display indication In this display of the TIMY, different info- mation are shown. The line below (1) shows the 4 different types of measuring. The 5-digit figure on the right side (2) indi- cates, many measurements WINDSPEED has sent to the TIMY. Central left will show the measured windspeed (3). -
Page 11: Technical Details
Windspeed WS2 7 Technical details Pin Assignment: Circuit points 1..RS485A Data for WIND-GAZ 2..RS485B Data WS2 – TIMY 3..GND 4..+5Volt 5..WIND GAZ 8 Treatment of the sensor The sensor does not need cleaning or auxiliary treatment during its entire lifetime!
