OPERATOR MANUAL
IMPORTANT INFORMATION, KEEP FOR OPERATOR
888-994-7636, fax 888-864-7636
unifiedbrands.net
THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE. READ,
UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND WARNINGS
CONTAINED IN THIS MANUAL.
FOR YOUR SAFETY Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other appliance.
WARNING Improper installation, adjustment, alteration, service or
maintenance can cause property damage, injury or death. Read the
installation, operating and maintenance instructions thoroughly before
installing or servicing this equipment.
NOTIFY CARRIER OF DAMAGE AT ONCE It is the responsibility of the
consignee to inspect the container upon receipt of same and to determine
the possibility of any damage, including concealed damage. Unified
Brands suggests that if you are suspicious of damage to make a notation
on the delivery receipt. It will be the responsibility of the consignee to file
a claim with the carrier. We recommend that you do so at once.
Manufacture Service/Questions 888-994-7636.
EQUIPMENT DESCRIPTION
STEAMER
GSSP-BL-3E
Counter Top
GSSP-BL-3ES
Single With Stand
(2)GSSP-BL-3ES
Double Stack With Stand
GSSP-BL-5E
Counter Top
GSSP-BL-5ES
Single With Stand
(2)GSSP-BL-5ES
Double Stack With Stand
GSSP-BL-10ES
Single With Stand
(2)GSSP-BL-10ES
Double Stack With Stand

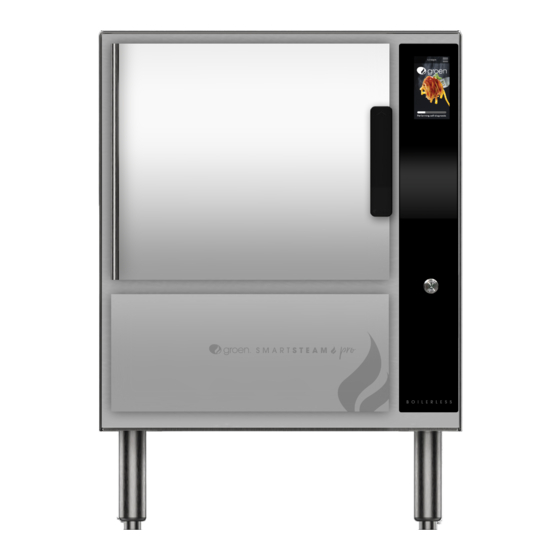

Your Groen GSSP-BL Boilerless Steamer is designed to give years of service. It
has a mirrored stainless steel cavity (steaming chamber) and an atmospheric
steam generating reservoir. A powerful side-mounted convection fan circulates
the steam in the cavity to increase heating efficiency, steaming speed, and
uniformity.
Each cavity holds up to three, five or ten steam table pans (12 x 20 x 21/2 deep).
An 18-gauge stainless steel case encloses the cavity, the steam generating
reservoir and the control compartment that houses electrical components. Door
hinges are field-reversible (the door may be set to open from the left or right).
TYPE
LBS
220
300
500
275
465
545
469
764
The information in this document is Confidential and shall not be disclosed to any third party without the express written
consent of Unified Brands. Information contained in this document is known to be current and accurate at the time of printing/
creation. Unified Brands recommends referencing our product line websites, unifiedbrands.net, for the most updated product
information and specifications. © 2022 Unified Brands. All Rights Reserved.
This manual provides information for:
SMARTSTEAM® PRO
BOILERLESS STEAMER, DOMESTIC
GSSP-BL-3E/3ES/5E/5ES/10ES &
(2)GSSP-BL-3ES/5ES/10ES
REFERENCES
UNDERWRITERS LABORATORIES, INC.
333 Pfingsten Road
Northbrook, Illinois 60062-2096
NATIONAL FIRE PROTECTION ASSOCIATION
1 Batterymarch Park
Quincy, Massachusetts 02169-7471
NFPA/70 National Electrical Code
NSF INTERNATIONAL
789 N. Dixboro Rd.
P.O. Box 130140
Ann Arbor, Michigan 48105-9723
WEIGHT
KGS
12 x 20 x 2-1/2
100
136
227
125
211
247
10
213
10
347
20
The GSSP-BL steamers are equipped with electronic controls. Steamer function
is controlled by touch screen display and LED lighted on/off push button.
The drain system on all models includes condensate spray, which cools drain
water.
PANS PER CAPACITY PER TYPE
12 x 20 x 4
3
2
3
2
6
4
5
3
5
3
6
6
12
PART NUMBER 178960, REV. B (04/22)
13 x 18
18 x 26
0
0
0
0
0
0
0
0
0
0
0
0
20
10
40
20
