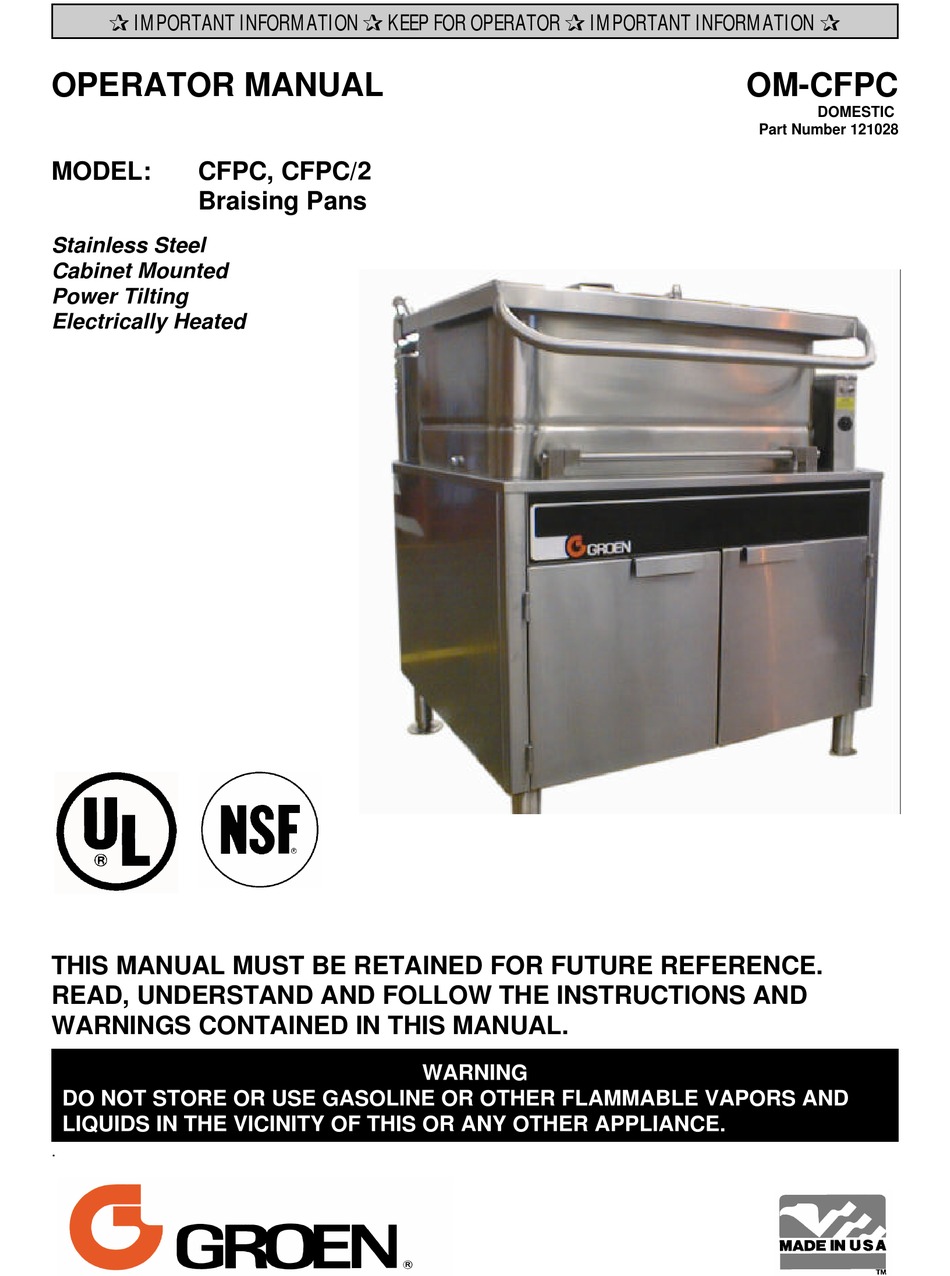

P IMPORTANT INFORMATION P KEEP FOR OPERATOR P IMPORTANT INFORMATION P

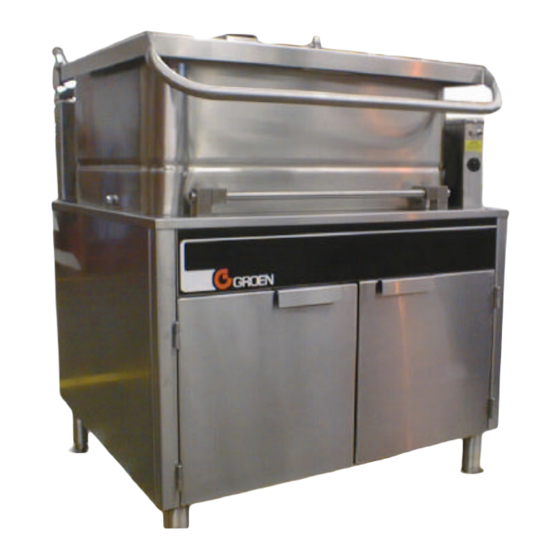

OPERATOR MANUAL
MODEL:
CFPC, CFPC/2
Braising Pans
Stainless Steel
Cabinet Mounted
Power Tilting
Electrically Heated
THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE.
READ, UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND
WARNINGS CONTAINED IN THIS MANUAL.
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND
LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE.
.
WARNING
OM-CFPC
DOMESTIC
Part Number 121028

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CFPC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Groen CFPC

Summary of Contents for Groen CFPC

  • Page 1 P IMPORTANT INFORMATION P KEEP FOR OPERATOR P IMPORTANT INFORMATION P OPERATOR MANUAL OM-CFPC DOMESTIC Part Number 121028 MODEL: CFPC, CFPC/2 Braising Pans Stainless Steel Cabinet Mounted Power Tilting Electrically Heated THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE. READ, UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND WARNINGS CONTAINED IN THIS MANUAL.
  • Page 2 SLIDE FORWARD SUDDENLY DURING TILTING AND CAUSE THE HOT LIQUID TO SPLASH OUT. WARNING: USE OF ANY REPLACEMENT PARTS OTHER THAN THOSE SUPPLIED BY GROEN OR ITS AUTHORIZED DISTRIBUTORS VOIDS ALL WARRANTIES AND MAY CAUSE BODILY INJURY AND/OR EQUIPMENT DAMAGE. NOTE: SERVICE PERFORMED BY OTHER THAN FACTORY AUTHORIZED PERSONNEL WILL VOID ALL WARRANTIES.

  • Page 3: Table Of Contents

    OM-CFPC Table of Contents IMPORTANT OPERATOR WARNINGS (READ FIRST) ..... . . 2 EQUIPMENT DESCRIPTION ..........4 INSTALLATION .

  • Page 4: Equipment Description

    OM-CFPC Equipment Description The Groen CFPC and CFPC/2 are stainless thermostat, heating indicator light, and tilting steel, electrically heated Braising Pans. They switch are contained in a compact control are equipped with integrated heating elements, a console which is mounted beside the pan body.

  • Page 5: Installation

    OM-CFPC Inspection and Unpacking Cut the straps holding the unit on the skid, and The unit will arrive completely assembled, lift the unit straight up off the skid. wrapped in protective plastic on a heavy skid, in a heavy cardboard carton. Immediately upon receipt, inspect the carton for damage.

  • Page 6: Initial Start-Up

    The unit must be level to avoid uneven cooking across the pan. 5. Any mechanical or electrical change must be approved by the Groen Food Service 2. Bolt the rear legs to the floor. Engineering Department.

  • Page 7: Operation

    OFF cook exactly as you wish. (middle) position when released. 3. Model CFPC/2 only: 2. Leave the cover vent open to allow excess steam to escape. For longer simmering, If the power tilt mechanism stops working you may wish to close the vent.

  • Page 8: Sequence Of Operation

    OM-CFPC Trouble Shooting Section of this manual do D. To Shut Down Pan not correct the problem, you can tilt the body manually. Turn the thermostat to “OFF” to stop heating element operation. For prolonged shutdown, a. Fit the provided hand crank onto the...

  • Page 9: Cleaning

    OM-CFPC Cleaning 1. Suggested Tools a. Cleaner, such as Klenzade HC-10 b. Brushes in good condition c. Cloth for cleaning controls d. Chlorine sanitizer such as Klenzade XY-12 e. Heavy Duty Cleaner, such as Klenzade LC-30 2. Procedure Use a sponge, cloth or plastic brush to clean the pan.

  • Page 10: Maintenance

    WARNING USE OF REPLACEMENT PARTS OTHER THAN THOSE SUPPLIED BY GROEN OR THEIR AUTHORIZED DISTRIBUTORS CAN ........

  • Page 11: Troubleshooting

    If the actions suggested do not solve the problem, call your qualified Groen Service Representative. For the phone number of the nearest agency, call your area Groen representative or the Groen Parts and Service Department. If an item on the list is followed by , the work should only be performed by a qualified service representative.

  • Page 12: Parts Lists

    OM-CFPC Parts List Model CFPC...
  • Page 13 Indicator Light Assembly 016028 Actuator, Vertical Tilting, for CFPC-4 Thermostat, Adjustable 012838 Actuator Horizontal Tilt for CFPC-4 Grommet, Rubber 001518 Spring, booster for 9" deep CFPC-4 003267 Knob, Thermostat 003908 Contactor (See Note) Switch, Momentary Toggle 002664 Transformer (Not Shown)
  • Page 14 OM-CFPC Parts List Model CFPC/2...
  • Page 15 OM-CFPC Parts List Model CFPC/2 Description Part No. Description Part No. Actuator, Tilting 045880 Tube, Sealtite ¾ O.D. ½ I.D. 012606 Thermostat, Adjustable 012838 Hanger, Conduit 012852 Vent Assembly, Cover 050359 Indicator Lamp, 115 Volt Red 002986 Body, Actuator 002440...

  • Page 16: Wiring Diagrams

    OM-CFPC Wiring Diagrams For certain models of CFPC/2, all units manufactured after January 1, 1985, have been wired for three phase power supply. The models affected are: Size 3, 208 Volt Size 3, 240 Volt Size 4, 208 Volt Size 4, 240 Volt If one of these braising pans will be used with single phase supply, it must be field converted as shown in the Phase Conversion Diagram, below.
  • Page 17 OM-CFPC Wiring Diagrams...
  • Page 18 OM-CFPC Wiring Diagrams...
  • Page 19 OM-CFPC Wiring Diagrams...
  • Page 20 OM-CFPC Wiring Diagrams...
  • Page 21 OM-CFPC Wiring Diagrams...
  • Page 22 OM-CFPC Wiring Diagrams...
  • Page 23 OM-CFPC Wiring Diagrams...

  • Page 24: References

    OM-CFPC Wiring Diagrams References KLENZADE SALES CENTER NATIONAL SANITATION FOUNDATION ECOLAB, Inc. 3475 Plymouth Rd. 370 Wabasha Ann Arbor, Michigan 48106 St. Paul, Minnesota 55102 800 328-3663 or 612 293-2233 UNDERWRITERS LABORATORIES, INC. 333 Pfingsten Rd. NATIONAL FIRE PROTECTION ASSOCIATION...
  • Page 25 OM-CFPC Service Log Model No. ______________________________ Purchased From _________________________ Serial No. ______________________________ Location ________________________________ Date Purchased _________________________ Date Installed ___________________________ Purchase Order No. ______________________ For Service Call _________________________ Date Maintenance Performed Performed by...

  • Page 26: Warranty

    Groen Foodservice Equipment ("Groen Equipment") has been skillfully manufactured, carefully inspected and packaged to meet rigid standards of excellence. Groen warrants its Equipment to be free from defects in material and workmanship for (12) twelve months with the following conditions and subject to the following limitations.
  • Page 27 OM-CFPC NOTES...
  • Page 28 1055 Mendell Davis Drive Jackson, MS 39212 OM-CFPC (Revised 10/98) Telephone 601 372-3903 FAX 601 373-9587 Part Number 121028...

This manual is also suitable for:
