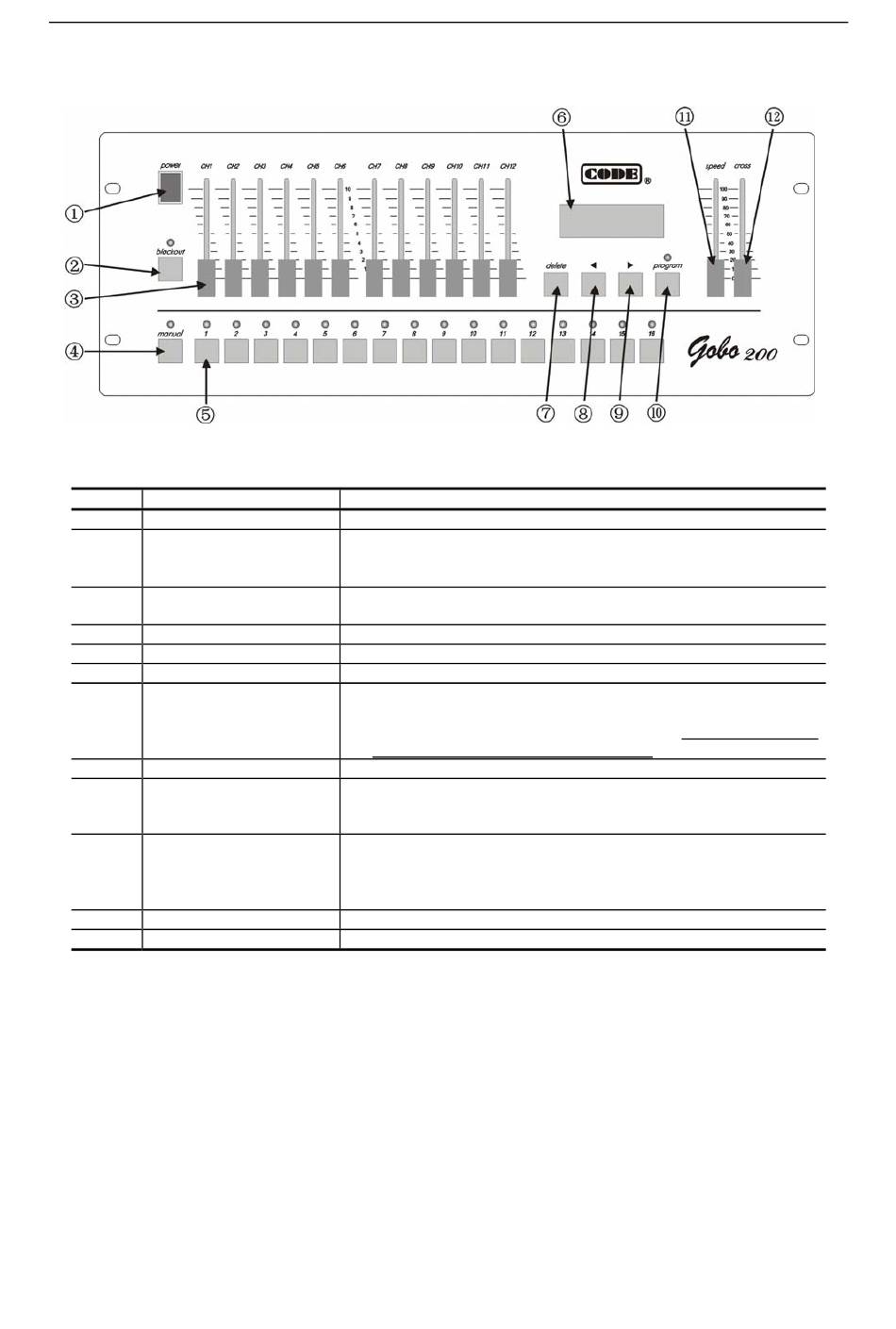

Panel of GOBO 200
No.
1 power switch
2 blackout key
3 CH1~CH12 channel slider
4 manual operation key
5 Number key 1~16
6 LCD display
7 delete key
8 ◄ Direction key
9 ► Direction key
10 program key
11 speed slider
12 cross slider
Name
Switch of AC power of the controller.
The key state is indicated by LED as following:
♦ When its LED is on, the controller is in blackout state;
♦ When its LED is off, the controller is in running state;
In program edit, move the slider can change the channel control
value of a specified scanner.
When its LED is on, the controller is in manual state;
These keys are used to choose chase program and scanner.
Display the current state of the controller and various setting values.
Be used in program edit state:
♦ Press the key quickly to delete the current chase step.
♦ Press the key for more than 1 second to delete chase steps
quickly until the chase program is empty.
In program edit, use it to check chase steps backwards.
In program edit, use it to check chase steps forwards.
If the current step is the last one (with *), press the key to add a step
and copy the contents of the current step to the new one.
♦ Press the key for more than 1 second, its LED is on and the
controller is in chase program edit state;
♦ Press the key for more than 1 second again, its LED is off and
the controller is in running state;
Adjust chase speed, 0=slowest, 100%=fastest.
Adjust cross time between steps, 0=slowest, 100%=fastest.
Functions and purposes
