Code Gobo 200 Manual page 12

Connecting to scanner
According to DMX512 protocol, DMX signal cable must be screened twist cable with impedance of 120Ω. In
practical engineering installation, if the whole length of the cable is short, the cable may be replaced by high
quality screened two-core microphone cable.
User joins each end of the cable to a XLR plug. Foot 1of the XLR plug is connected to the screen net of the
cable. Twist lines (distinguished by different colors) are connected to foot 2 and 3. Foot 3 is signal + and foot 2
is signal -. Foot 2 and foot 3 of the plug cannot be confused.
To ensure correct DMX signal transmission, an 120Ω terminal matching resistance must be connected to the
last equipment to absorb terminal signal reflection. The operation is as following: connect a 120Ω resistance
to foot 2 and foot 3 of a plug then plug it to the output of the last scanner (or other equipment).

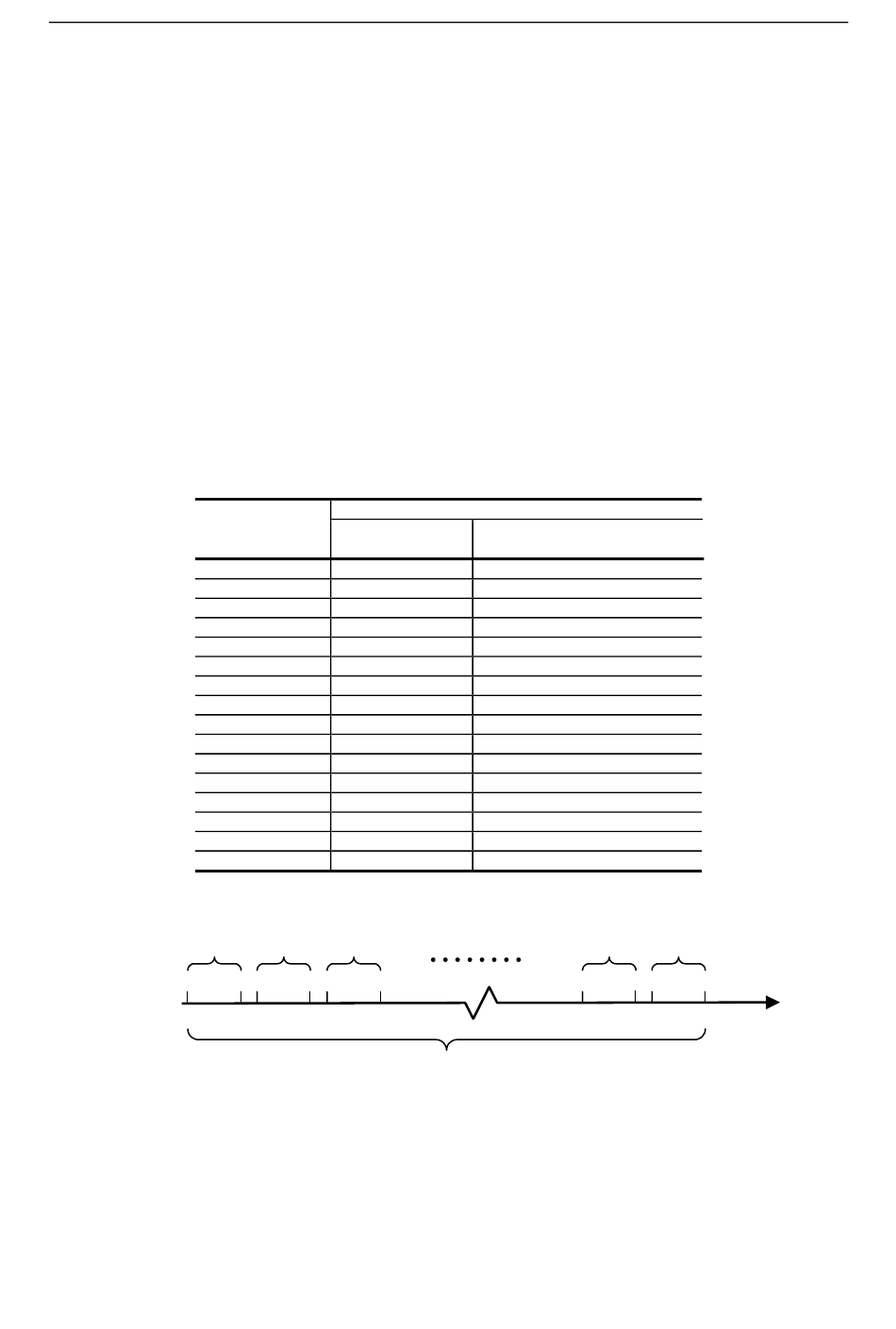

Address distribution of DMX512
GOBO 200 scanner controller utilizes channel 1-96 of DMX512 to transmit the control signals to various
scanners. Each scanner is fixed with 8 control channels.
Scanner No.
1#scanner
1
DMX ch.
Decimal Code
1 1
2 13
3 25
4 37
5 49
6 61
7 73
8 85
9 97
10 109
11 121
12 133
13 145
14 157
15 169
16 181
2#scanner 3#scanner
12 13 24 25 36
12 ch.scanner x 16
First DMX address of scanner
Switch bit of scanner address
123456789
100000000
101100000
100110000
101001000
100011000
101111000
101100100
101010100
100001100
101101100
100111100
101000010
100010010
101110010
100101010
101011010
15#scanner
169
- 2 -
English Manual
16#scanner
180 181 192
