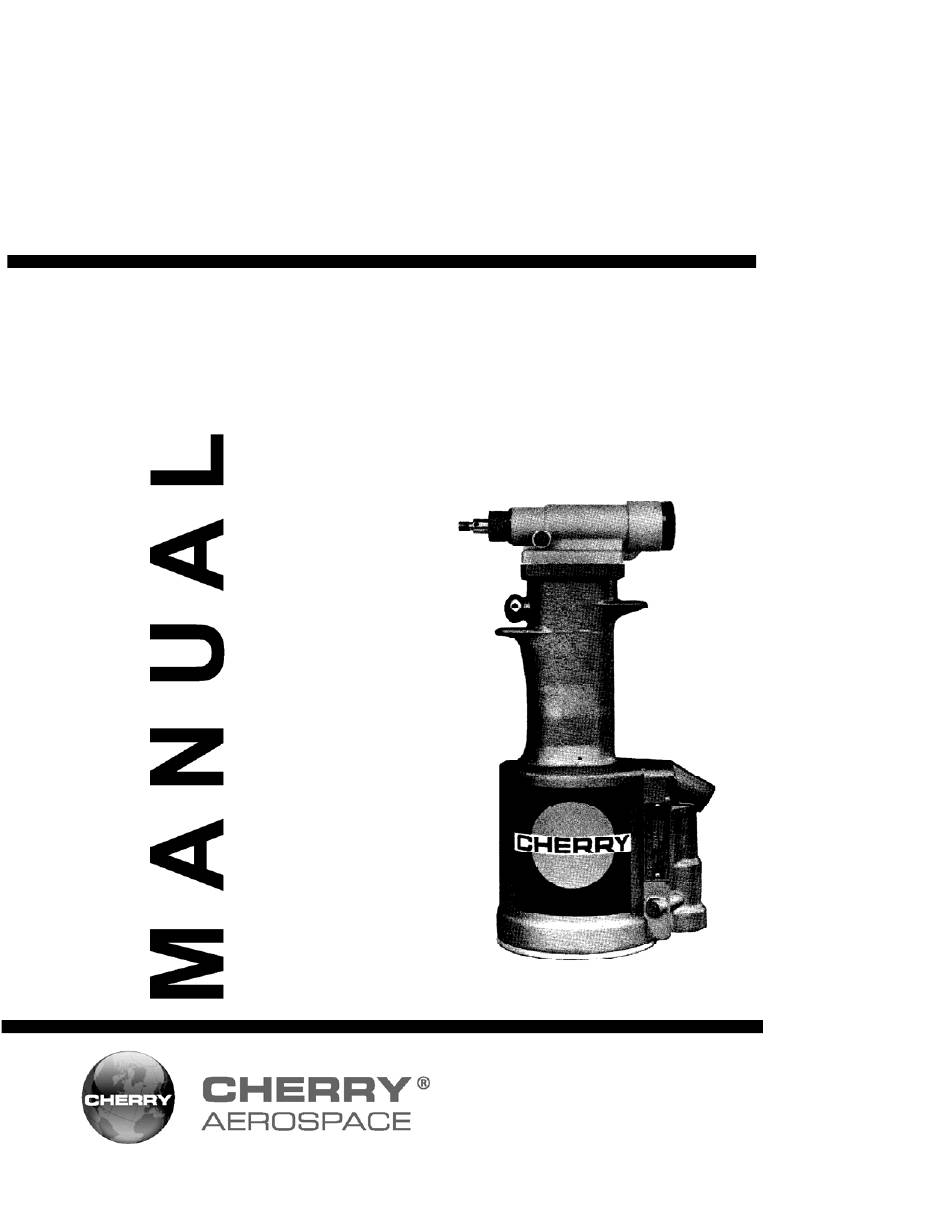

- Page 1 ORIGINAL INSTRUCTIONS G715A Pneumatic-hydraulic Riveter 1224 E. Warner Ave Santa Ana, CA 92705 www.cherryaerospace.com...
-
Page 2: Pulling Heads
In ordering heads be sure to specify the shank diameter and head style (universal or countersunk) of the rivets to be installed. The following pulling heads will fit directly on the G715A Riveter: G6H Series ..For installing 100, 200, 300 and 500 Series Knob Stem Cherry Rivets. -
Page 3: Maintenance And Repair
MAINTENANCE AND REPAIR Using a pressure oil can filled with DEXRON III Automatic Transmission Fluid, Type A (no The G715A Riveter has been manufactured substitute), force the fluid into the head until to give maximum service with minimum care. filled. It may be necessary to turn tool upside In order that this may be accomplished, the down to insure head is filled with fluid. - Page 4 S A F E T Y W A R N I N G S • Approved eye protection should be worn when operating, repairing, or overhauling this tool. • Do not use beyond the design intent. • Do not use substitute components for repair. •...
- Page 5 PARTS LIST FOR THE G715A RIVETER QTY. PART DESCRIPTION NUMBER REQ. 1. 715B34 Nose Fitting 2. P838 O-Ring, 6865-110 (No subs.) 3. P721 0-Ring, 1/16 x 5/8 x 3/4 4. 715D12 Head Cylinder 5. P573 Button Hd. Cap Screw 6. P572 Stat-O-Seal, 600-001-10 7.
-
Page 6: Troubleshooting
Henkel Corporation ® DEXRON is a registered trademark of GM corporation. ® PARKER is a trademark of Parker Hannifin Corporation TM-G715A Rev.: C DCR# 10-1064 © 2007 CHERRY® AEROSPACE Supplier’s Federal Identification Code: 11815 Date: 09-29-10...
