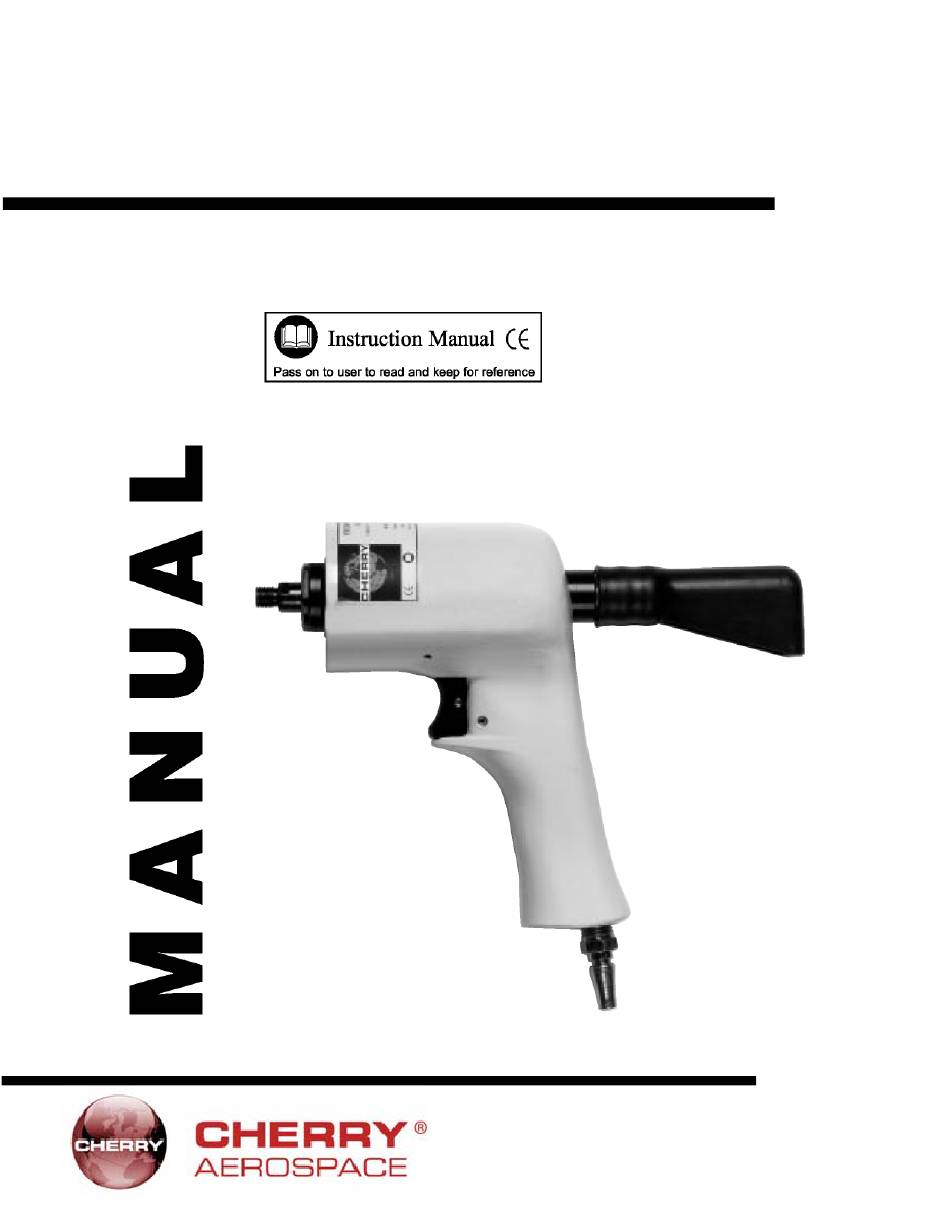

- Page 1 Original Instructions G902 Cherry Lightweight Nut-Plate Riveter 1224 East Warner Ave, Santa Ana, Ca 92705 Tel: 1-714-545-5511 Fax: 1-714-850-6093 www.cherryaerospace.com...
-
Page 2: Table Of Contents
This tool utilizes a straight pulling head which can install 3/32", 1/8’’ pull through type Nut-Plate and 3/32" CherryLock “A” rivets. Extensions are available for the G902 to allow the pulling heads to reach limited access areas. See the section on pulling heads for the correct pulling head part number. -
Page 3: Safety Warnings
HOW TO USE THE G902 / G902-15 After selecting the proper pulling head and attaching it securely to the G902 or G902-15, connect the air line to the tool. Insert the rivet stem into the pulling head until the head of the rivet is in contact with the pulling head nosepiece; this will ensure full engagement between the jaws and the rivet stem and will prevent slippage. -
Page 4: Overhaul
• With hex wrench in place, locate the flats on the front piston rod (11). Use a 7/16 wrench, (for G902-15 model insert a pin in the crossed drill hole of front piston rod (11)), to unscrew the front piston rod (11) by turning it counterclockwise. - Page 5 C R O S S S E C T I O N O F G 9 0 2...
- Page 6 PART NO. DESCRIPTION QTY. 902-022 FITTING, NOSE P-701 O-RING 902-024 SUB-ASSEMBLY, FRONT CAP 902-023** CAP, FRONT 902-011** BUMPER, RUBBER 902-021 ROD, PISTON P-112 O-RING NOTE: ITEMS 29 TO 32 (P-880, 703A13, 530A16 AND 670A20) ARE NOT USED IN G902- 15 TOOL.
- Page 7 E X P L O D E D V I E W O F G 9 0 2 / G 9 0 2 - 1 5...
-
Page 8: Declaration Of Conformity
Parker Hannifin Corporation ® LUBRRIPLATE is a trademark of Fiske Brothers Refining Co. 1224 East Warner Ave, Santa Ana, Ca 92705 Tel: 1-714-545-5511 Fax: 1-714-850-6093 www.cherryaerospace.com © 2007 Cherry Aerospace TM-G902 Rev.: B DCR# 08-0240 Supplier’s Federal Identification Code: 11815 Date: 06/13/08...
