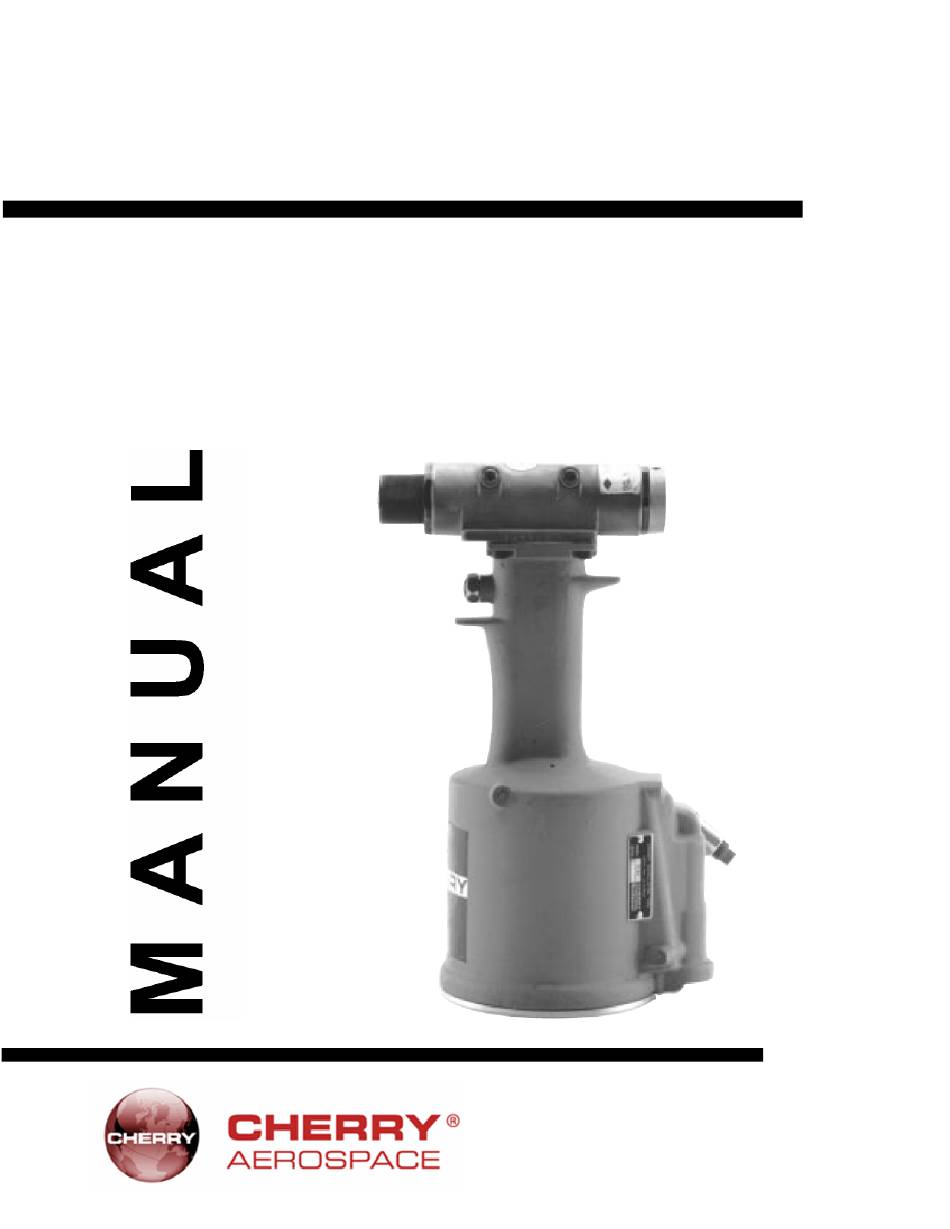

- Page 1 ORIGINAL INSTRUCTIONS G700 HY DRO - S HI FT CHE RR YL O CK ® RI V E TE R 1224 East Warner Ave, Santa Ana, Ca 92705 Tel: 1-714-545-5511 Fax: 1-714-850-6093 www.cherryaerospace.com...
-
Page 2: Table Of Contents
T AB L E O F C O N T E N T S Description ..................Tool Capacity Chart ................Safety Warnings ................G700 Exploded View................G700 Component List ................. Fill and Bleed Instructions ..............Adjustment Instructions ................ Shift Point Setting ..............Shift Piston Check .............. -
Page 3: Description

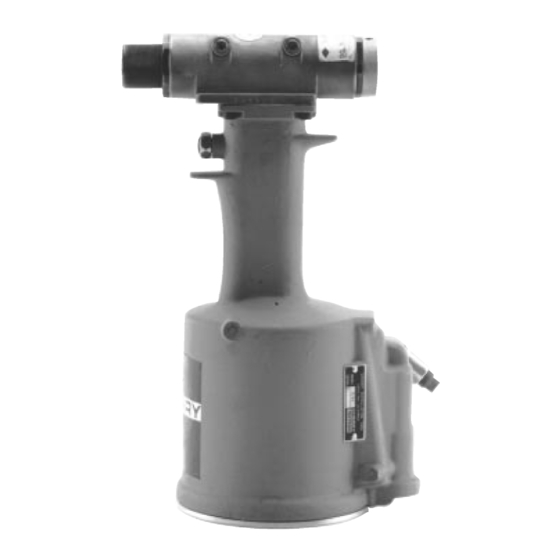

D E S C R I P T I O N The Cherry G-700 Hydro-Shift Riveter is a pneumatic-hydraulic tool designed specifically for the most efficient installation of Cherry-lock Rivets. It weighs only 5 3/4 lbs. and can be operated in any position with one hand. -
Page 4: Safety Warnings
S AF E T Y W AR N I N G S Approved eye protection should be worn when operating, repairing, or overhauling this tool. Do not use beyond the design intent. Do not use substitute components for repair. ... -
Page 5: G700 Exploded View
G 7 0 0 – E X P L O D E D V I E W... -
Page 6: G700 Component List
PARTS LIST FOR THE G-700 RIVETER PART PART DESCRIPTION DESCRIPTION NUMBER NUMBER P572 Stat-O-Seal 680A103 Sleeve Cap P573 Button Head Screw 680A105 Spring P838 O-Ring, Disogrin (No Subs.) 700B32 Front Cap P115 Back-Up Ring P652 Back-Up Ring P727 O-Ring P826 O-Ring, Disogrin (No Subs.) 700B93 Packing Plug... -
Page 7: Adjustment Instructions
OPERATING INSTRUCTIONS INSTALLING H681 PULLING HEAD ON RIVETER Remove knurled cap (A) from front of riveter head. Note: To remove the collet, push the lock back Place jaw assembly (D) inside collet (C). into collet (using a blunt pointed tool) while turning Insert spring end of jaw assembly into hole in the collet counterclockwise. -
Page 8: Operating Instructions
SHIFT PISTON CHECK The shift piston check is made to ascertain that the movement of the piston is not restricted in any manner. It must be free to move the amount indicated below in order to obtain proper installation. Connect tool to air hose with a minimum of 90 psi and remove pulling head and sleeve cap. -
Page 9: Warranty And Contact Information
Parker Hannifin Corporation 1224 East Warner Ave, ® LUBRRIPLATE is a trademark of Fiske Brothers Refining Co. Santa Ana, Ca 92705 Tel: 1-714-545-5511 Fax: 1-714-850-6093 www.cherryaerospace.com Supplier’s Federal Identification Code: 11815 © 2007 Cherry Aerospace TM-G700 Rev.: A Date: 05/09/07 CR# 07-0097...
