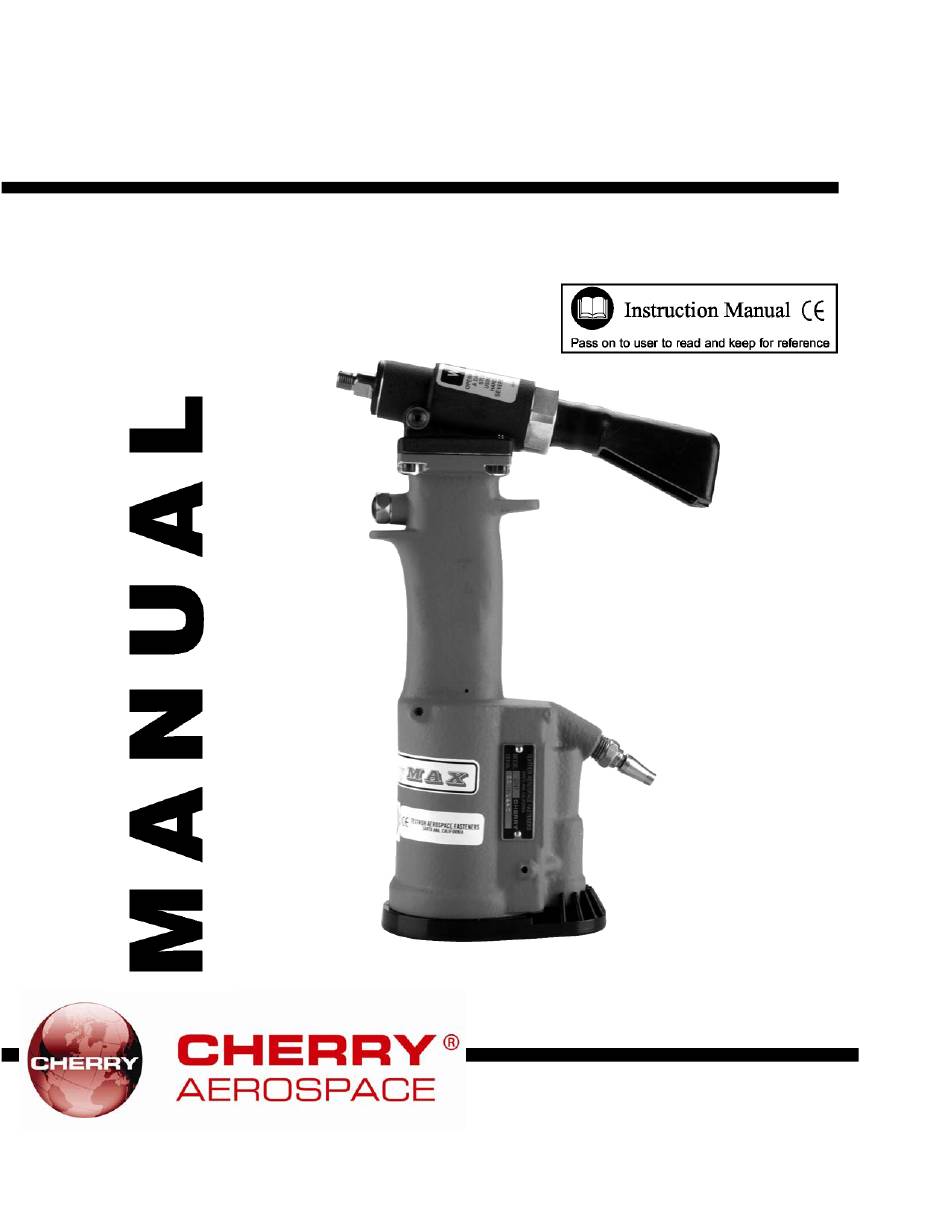

- Page 1 Original Instructions G702A Lightweight Nut-Plate Power Tool 1224 East Warner Ave, Santa Ana, CA 92705 Tel: 1-714-545-5511 Fax: 1-714-850-6093 www.cherryaerospace.com...
-
Page 2: Table Of Contents
Specifications for G702A ..................................2 Safety Warnings ..................................... 2 Putting the tool in service ..................................3 How to Use the G702A ..................................3 Maintenance and Repair ..................................4 Dexron® III ATF Safety Instructions ............................4 Fill and Bleed Instructions ..................................5 Trouble-Shooting Guide .................................. -
Page 3: Description
The H702-3NPR pulling head fits directly on the G702A tool to install -3, -4, 2.5mm and 3mm Nut-plate rivets. See the section on pulling heads for installation instructions and nosepiece selection. -
Page 4: Putting The Tool In Service
HOW TO USE THE G702A After selecting the proper pulling head and attaching it securely to the G702A, connect the air line to the tool. Insert the rivet stem into the pulling head until the head of the rivet is in contact with the pulling head sleeve. This will ensure full engagement between the jaws and the rivet stem and will prevent slippage. -
Page 5: Maintenance And Repair
Rev.: D, 4-30-15, DCR# 15-0423 MAINTENANCE AND REPAIR The G702A has been manufactured to give maximum service with minimum care. In order that this may be accomplished, the following recommendations should be followed: The hydraulic system should be full of oil and free from air at all times. -
Page 6: Fill And Bleed Instructions
Federal Identification Code: 11815 TM-G702A © 2015 Cherry Aerospace Rev.: D, 4-30-15, DCR# 15-0423 FILL AND BLEED INSTRUCTIONS To replace a small amount of oil in the tool, remove cap screw (15), attach the Cherry air bleeder (700A77), connect the tool to the air line and cycle several times. -
Page 7: Overhaul Guide
Federal Identification Code: 11815 TM-G702A © 2015 Cherry Aerospace Rev.: D, 4-30-15, DCR# 15-0423 G701/G704KT TOOL KIT OVERHAUL The disassembly and re-assembly proce- dures can be accomplished by following the instructions below and the drawings on 836B700 Valve Spring Installation Tool pages 8 &... -
Page 8: Handle Sub-Assembly
(37) and tighten between 50 in.-lb (5.65 N-m) and 59 in.-lb (6.67 N-m). NOSEPIECE SELECTION H702-3NPR PULLING HEAD - The G702A requires only one pulling head to install four diameters of nut-plate rivets. Nosepiece Rivet Diameter Maximum Grip 728A9-3 2.5mm... -
Page 9: Cross Section Drawing Of G702A
Federal Identification Code: 11815 TM-G702A © 2015 Cherry Aerospace Rev.: D, 4-30-15, DCR# 15-0423 CROSS SECTION OF G-702A Page 8... -
Page 10: Parts List For G702A Riveter
Federal Identification Code: 11815 TM-G702A © 2015 Cherry Aerospace Rev.: D, 4-30-15, DCR# 15-0423 PART LIST FOR G702A ITEM PART No DESCRIPTION 702-054 (G702A RIVER ASSEMBLY) 702B15 SUB-ASSEMBLY, HEAD 702C2 SUB -ASSEMBLY, HEAD CYCLINDER P-653 O-RING (.691, .551, .070) P-883 RING, BACK-UP (.686, .580, .053) -
Page 11: Exploded View Of G702A
Federal Identification Code: 11815 TM-G702A © 2015 Cherry Aerospace Rev.: D, 4-30-15, DCR# 15-0423 EXPLODED VIEW OF G702A Page 10... -
Page 12: Declaration Of Conformity
Declaration of Conformity We, Cherry Aerospace Located at 1224 East Warner Avenue, Santa Ana, CA 92705-0157, USA, In accordance with the provisions of Machine Directive 2006/42/EC Hereby declare under our sole responsibility that: Equipment: Pneumatic Hydraulic Hand Riveter Model Number: G-702A...
