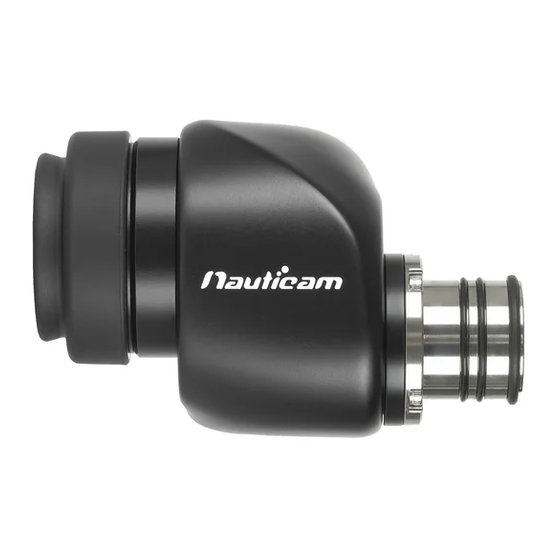

Nauticam Full Frame Viewfi nders Straight Viewfi nder 320 / 1:1 PN 32211 User Manual Underwater Optics Introduction Package Contents Important Instructions Part Names Installing the Viewfi nder Viewfi nder Collar Adaptor Care/Storage Warranty Specifi cation Dec, 2021... -
Page 2: Introduction
PACKAGE CONTENTS Make sure that you have all the included items listed below before using this product. If some items are missing or damaged, contact your local Nauticam dealer. Straight Viewfi nder 320 / 1:1 Spare O-rings x 3... -
Page 3: Important Instructions
Use only Nauticam lubricant on silicone Do not expose the housing setup in direct rubber O-ring. Do not stretch any O-rings sunlight for a prolonged period. -
Page 4: Part Names
PART NAMES AND FUNCTIONS Dioptric adjustment knob Retainer O-ring Sealing O-ring Alignment pins Eyepiece... -
Page 5: Installing The Viewfinder
INSTALLING THE VIEWFINDER fi rstly remove the pre-installed 0.66x viewfi nder gently push the 0.66x viewfi nder from the inside of from the housing by removing the retainer o-ring the housing inside rear housing remove the retainer o-ring from the viewfi nder align the viewfi... -
Page 6: Viewfinder Collar Adaptor
- fi rstly take away the screw cap cover - then take out the collar as you screw in one screw into the hole replace with #32215 Viewfi nder collar adaptor for 32211/2/3/4/ to use with MIL housings screw back the four screws onto the... -
Page 7: Care/Storage
CARE/STORAGE Soak the housing system along with the Operate all controls and buttons at viewfi nder in fresh water after salt water least 3 times while immersed in fresh usage water We recommand cleaning and inspecting Protect the housing and lenses with the main O-ring each time after diving for robust and shock-proof travel case any damage and every time the housing... -
Page 8: Warranty
NAUTICAM accepts no liability for any damage to and defects in the housing caused by improper use and/or poor maintenance; it is the responsibility of the own- er to carefully follow the instructions in our manuals. -
Page 9: Specifi Cation
SPECIFICATIONS Construction Body Hard Anodized Aluminium Alloy Lens 12 Elements in 9 groups with enhanced multi-layer anti-relective coating Dimensions Width 90 mm Height 75 mm Depth 110 mm Weight In air 0.62 kg Buoyancy in water negative 0.33 kg Depth Rating 150 m Magnifi... - Page 10 Nauticam Internationl Ltd. Rm 2203, CCT Telecom Bldg, 11 Wo Shing St, Fo Tan, Hong Kong Tel. +852 - 26902711 Fax. +852 - 26909778 URL. www.nauticam.com Gallery. www.nauticam.smugmug.com...
