5. Shift key
This key is used in conjunction with other keys. When held down, it gives an additional
function to another key.
Shift + Play/Pause key:Playback from the beginning of the pattern.
Shift + Rec key:During playback, erase triggers from the pattern.
Shift + Step keys:Execute the function shown below each step key.
Shift + dial: If the Shift key is held down as you rotate the dial, the value in the dis
play will change in steps of ten.
Shift + Select key:In Pattern mode, the target step will be advanced by one.
For other Shift key combinations, refer to the explanation of each parameter.

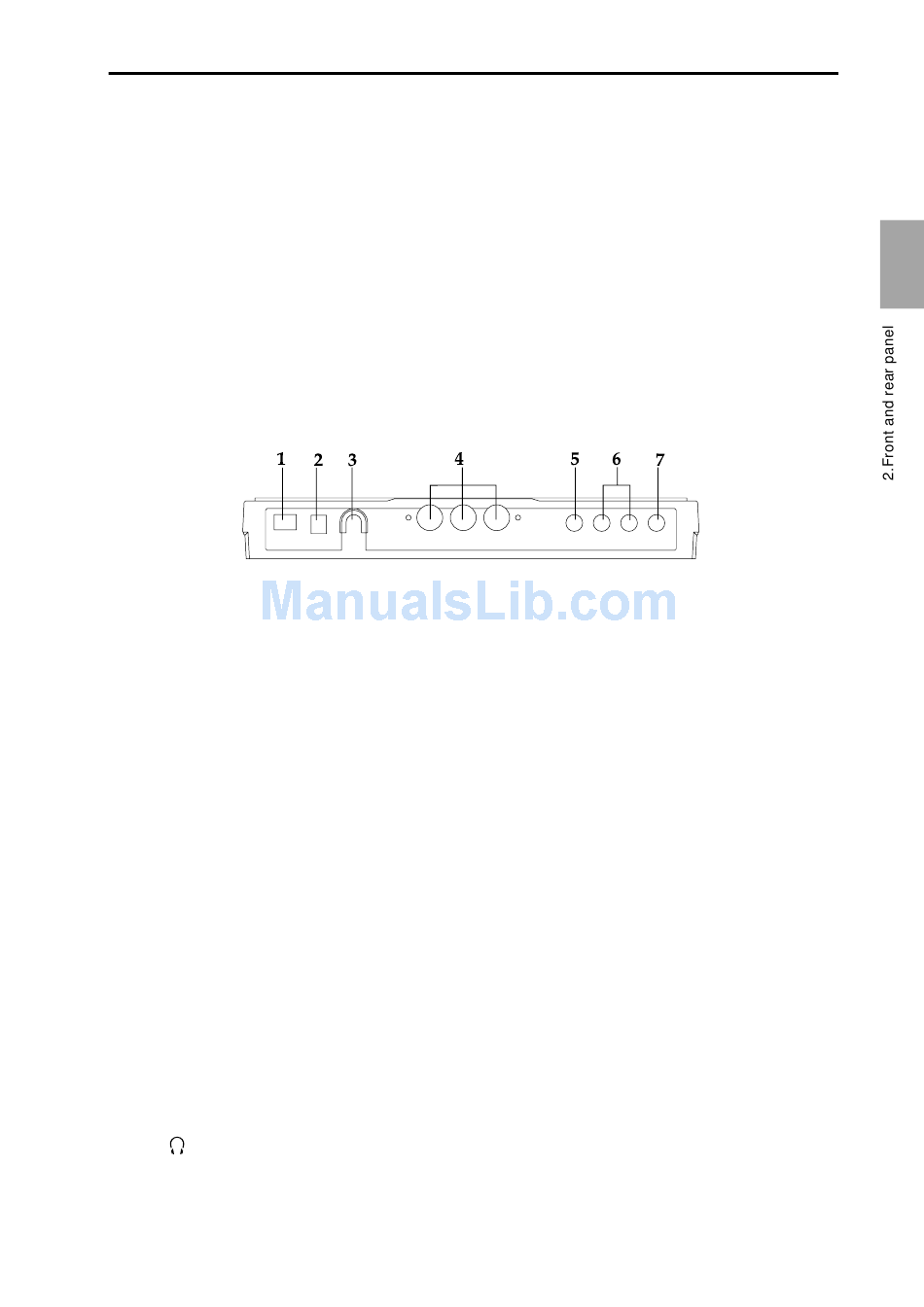

Connector section

1. Power switch
This switch turns the power on/off. Each time you press it, the power will alternate on
or off.
2. DC 9V
Connect the included AC adapter here.
3. Adapter cable holder
Hook the adapter cable around this so that it will not be disconnected accidentally.
4. MIDI connectors
MIDI data is received at this connector to control the EA-1 from an external
IN
MIDI device or to receive a data dump.
OUT
MIDI data is transmitted from this connector to control an external MIDI de
vice or to transmit a data dump.
THRU
MIDI data received at the MIDI IN connector is re-transmitted without change
from this connector. This is used to "daisy-chain" multiple MIDI devices.
5. AUDIO IN jack
This jack receives the signal that will be used for Audio In of OSC1. The sound that is
input here will be used as the sound of OSC1.
6. PART1/MIX, PART2 (part output jacks)
Connect your audio cables from these jacks to send the sound of Parts 1 and 2 separately
to your mixer or powered monitor system (powered speakers) etc. If you wish to output
the sound of Parts 1 and 2 together, make connections to the PART1/MIX jack.
7.
(headphone jack)
A set of stereo headphones fitted with a stereo jack plug can be connected here.
The output is monaural.
2.Front and rear panel
11
