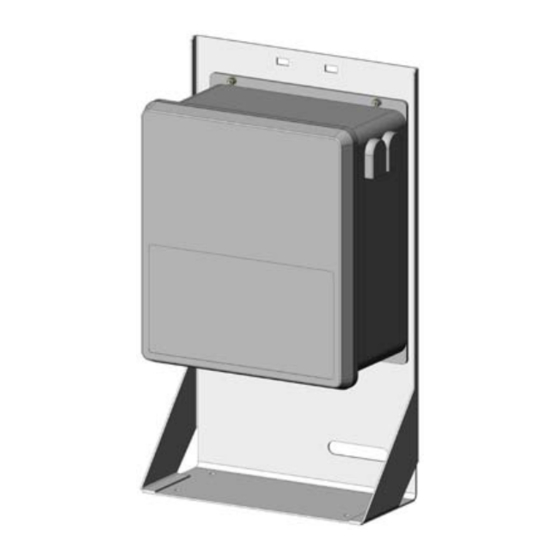

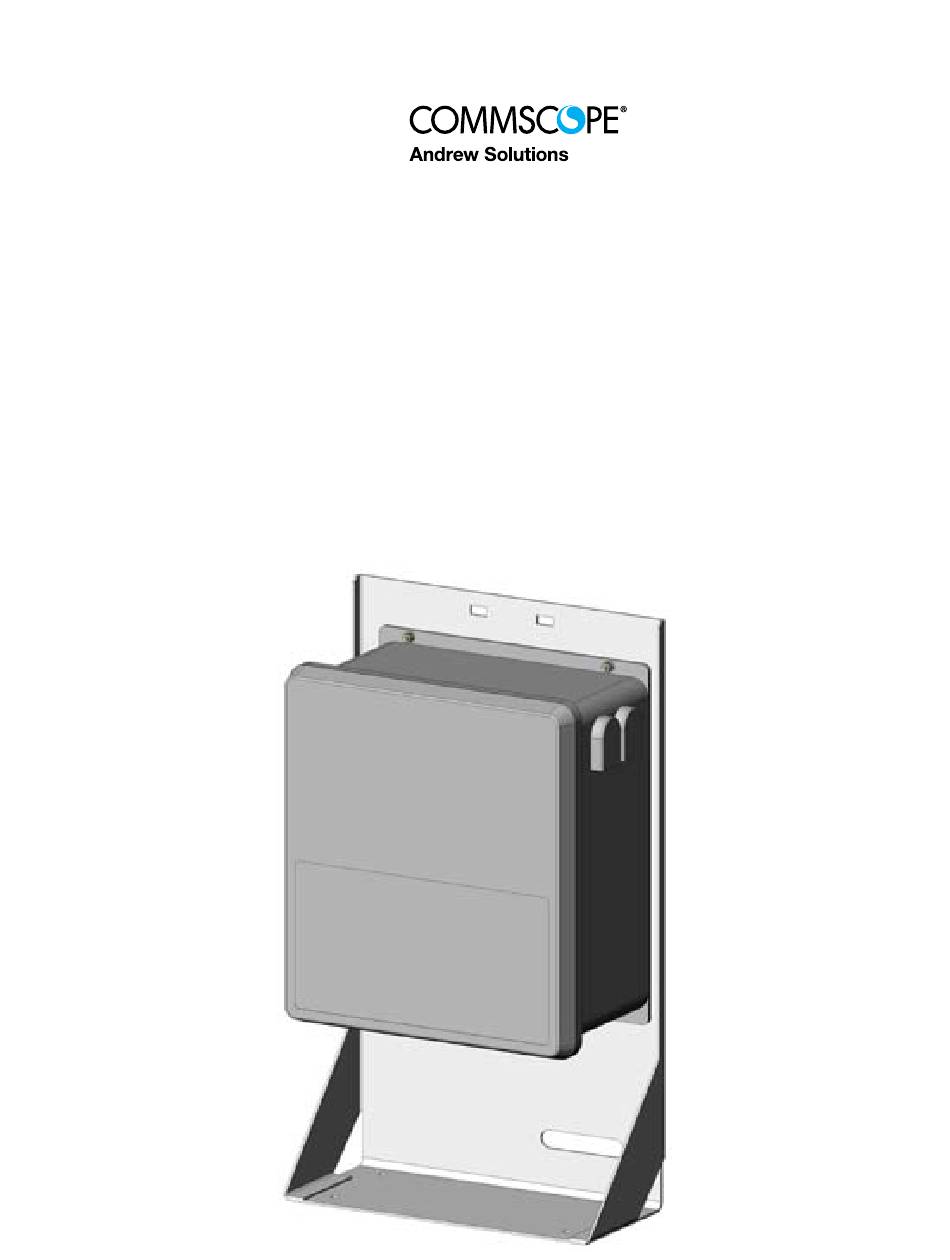

- Page 1 ® ODPMT200 SERIES DryLine DEHYDRATOR USER MANUAL Bulletin AE01B-A0467-001 Rev: E © 2007 - 2013 CommScope, Inc. All rights reserved (01/13)
-
Page 2: Table Of Contents
Initial Steps by CommScope ........ -
Page 3: General Information
ODPMT200 Series DryLine ® Dehydrator User Manual They are designed to mount to a slab floor. Section 1 Optional brackets are available for pole General Information mounting capability. Their front panels feature Introduction a pressure gauge, an indicating on/off switch, a resettable circuit breaker, and a run time meter. This manual contains the information you need For easy serviceability, power connections, to install, operate and maintain your ODPMT200... -
Page 4: Triple Alarm Option
This optional assembly is designed to provide system leak or a dehydrator failure. the additional Excess Run, High Humidity and Power Fail alarms to CommScope Dehydrators. Excess Run: All alarms are Form C dry contacts and are User settable run time to be set in accordance factory set for continuity at alarm. -
Page 5: Specifications
ODPMT200 Series DryLine ® Dehydrator User Manual Specifications Output Pressure Constant 5.0 psig Output capacity 12.0 SCFH (80Iiters/h) (total, approx.) 0.2 SCFH (1.5 liters/m) Output Dew Point, -49°F (-45°C) or better Operating Temperature -30° to +130° F Range (-34° to +54° C) Figure 2 - Changing Alarm Outputs: Low Pressure Alarm 1.0 lb/in2 (6.9 kPa) -
Page 6: Installation
ODPMT200 Series DryLine ® Dehydrator User Manual Section 2 Installation Inspection Open carton. Remove the top piece of corrugated packing. Carefully remove the installation accessories and manual and dehydrator. Check the dehydrator for shipping damage such as dents or loose parts. Pressure Gauge - indicates dehydrator output pressure in psig and kPa. -
Page 7: Installing The Dehydrator
ODPMT200 Series DryLine ® Dehydrator User Manual completed, tie-wrap power-cable in place and tighten the liquid-tite fitting around power cable. See schematic on page 21 for input connections. Un-Time Meter - provides a visual indication of the number of hours of compressor operation and provides validation for the 3000 hour Proper electrical connection is warranty. -
Page 8: Connecting Dehydrator To The Transmission Line
ODPMT200 Series DryLine ® Dehydrator User Manual Route the wires from the alarm control through the liquid-tite fitting at bottom of unit into the chassis and up to the terminal block Tighten the screws on the terminal block, tie Note: wrap the alarm cable, and tighten the liquid-tite If the transmission lines have not been fitting. -
Page 9: Maintenance
ODPMT200 Series DryLine ® Dehydrator User Manual The dehydrator overhaul kit includes parts Section 3 to overhaul the compressor and critical Maintenance components in the dehydrator that often become Maintenance worn over time. The ODPMT200 Dehydrator requires relatively little maintenance to ensure satisfactory operation over long periods of time. -
Page 10: Annual Maintenance
6000-hour overhaul. Parts Replacement and Dehydrator Overhaul CommScope ODPMT200 Dehydrators are designed to give may years of trouble-free service and require very minimal maintenance. The dehydrator contains, as a standard feature, a run-time meter that records compressor run hours. -
Page 11: Dehydrator Filter Element Replacement
ODPMT200 Series DryLine ® Dehydrator User Manual every 6000 hours of compressor operation. The Dehydrator Filter Element Replacement kit listed below, contains all of the necessary parts to perform this overhaul. Clean/replace the air intake filter Maintenance Parts The air intake filter protects the compressor from contamination and dust. Periodic cleaning/ 1. -
Page 12: Service Restoration
ODPMT200 Series DryLine ® Dehydrator User Manual Squeeze and shake out any excess water and return the element to the filter housing. Do not apply oil or other chemicals to the filter element. make sure the element is seated completely in the housing and then replace the cover. If a new element is used, discard the old element. Service Restoration RECOMMENDATION: If the dehydrator overhaul process has taken more than a few... -
Page 13: Troubleshooting
If pressure drops, use a leak detector solution to locate leaks in the transmission line. Repair leaks if possible. (See section 6) If the problem persists contact CommScope Customer Service. Check the breaker adjacent to the on/off switch. If the breaker is tripped, (white indicator exposed) then reset the breaker. - Page 14 ODPMT200 Series DryLine ® Dehydrator User Manual...
- Page 15 ODPMT200 Series DryLine ® Dehydrator User Manual...
-
Page 16: Replacement Parts
If the steps in the manual do not identify and remedy the problem, then contact an CommScope Customer Service Center for 24– hour telephone assistance. Record the Model Number (e.g. ODPMT200) and Serial Number from the product label, as you will be asked for these when you call. -
Page 17: Initial Steps By Commscope
When your call or fax communication is account. Damages to loaner will be deducted received, the CommScope staff will work with from the P.O. you to pinpoint the possible cause of trouble. If the pressurization equipment is suspect, they... - Page 18 ODPMT200 Series DryLine ® Dehydrator User Manual This page was left blank...
- Page 19 ODPMT200 Series DryLine ® Dehydrator User Manual...
- Page 20 ODPMT200 Series DryLine ® Dehydrator User Manual This page was left blank...
