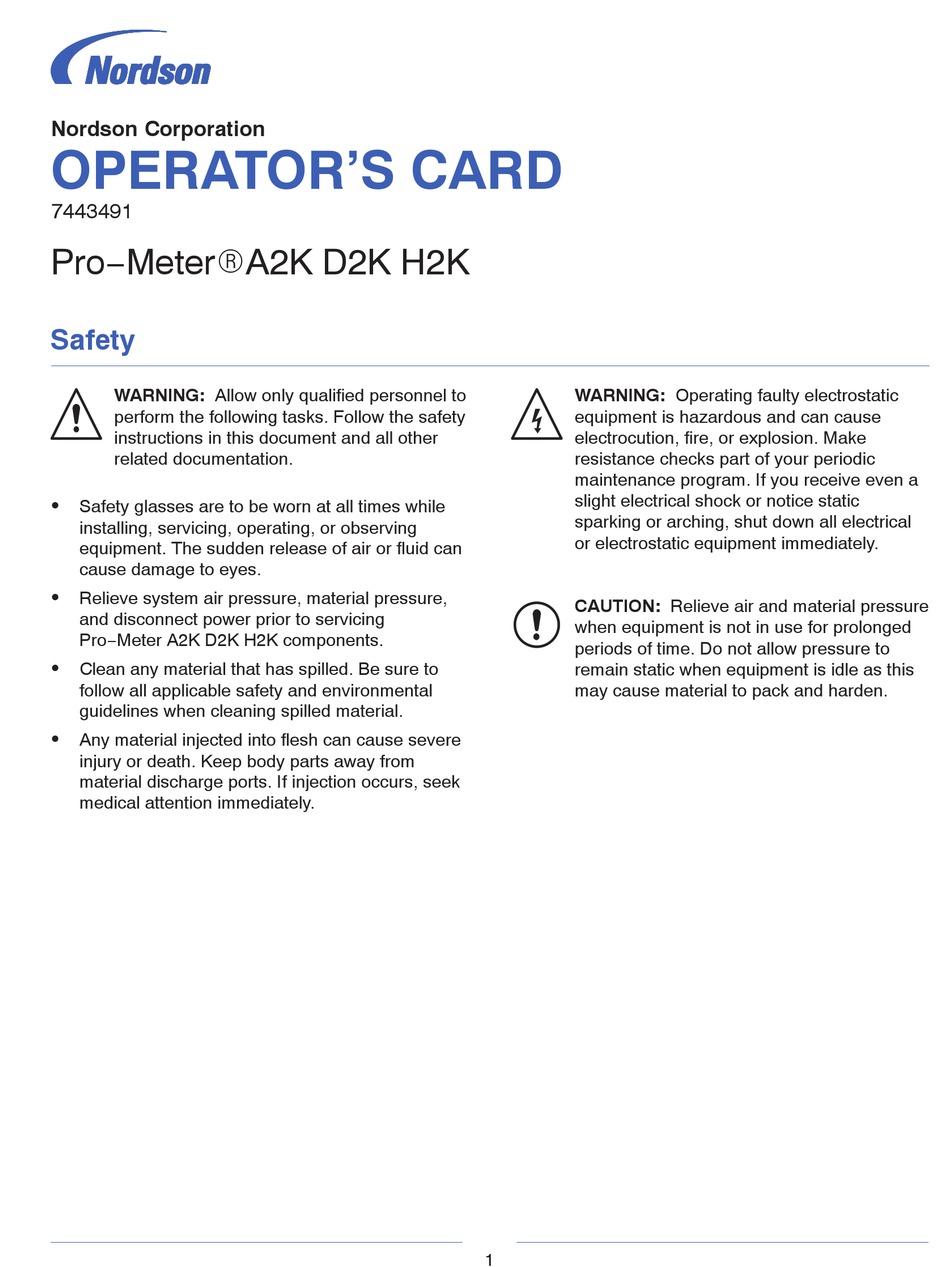

Nordson Corporation
OPERATOR'S CARD
7443491
Pro−MeterRA2K D2K H2K
Safety
WARNING: Allow only qualified personnel to
perform the following tasks. Follow the safety
instructions in this document and all other
related documentation.
S
Safety glasses are to be worn at all times while
installing, servicing, operating, or observing
equipment. The sudden release of air or fluid can
cause damage to eyes.
S
Relieve system air pressure, material pressure,
and disconnect power prior to servicing
Pro−Meter A2K D2K H2K components.
S
Clean any material that has spilled. Be sure to
follow all applicable safety and environmental
guidelines when cleaning spilled material.
S
Any material injected into flesh can cause severe
injury or death. Keep body parts away from
material discharge ports. If injection occurs, seek
medical attention immediately.
WARNING: Operating faulty electrostatic
equipment is hazardous and can cause
electrocution, fire, or explosion. Make
resistance checks part of your periodic
maintenance program. If you receive even a
slight electrical shock or notice static
sparking or arching, shut down all electrical
or electrostatic equipment immediately.
CAUTION: Relieve air and material pressure
when equipment is not in use for prolonged
periods of time. Do not allow pressure to
remain static when equipment is idle as this
may cause material to pack and harden.
