Magnetic dry film thickness gauge

Advertisement

Magnetic Dry Film Thickness Gauge

1. Description

2. Operation

Smooth Steel
1995 Nordson Corporation
All rights reserved
See Figure 1.

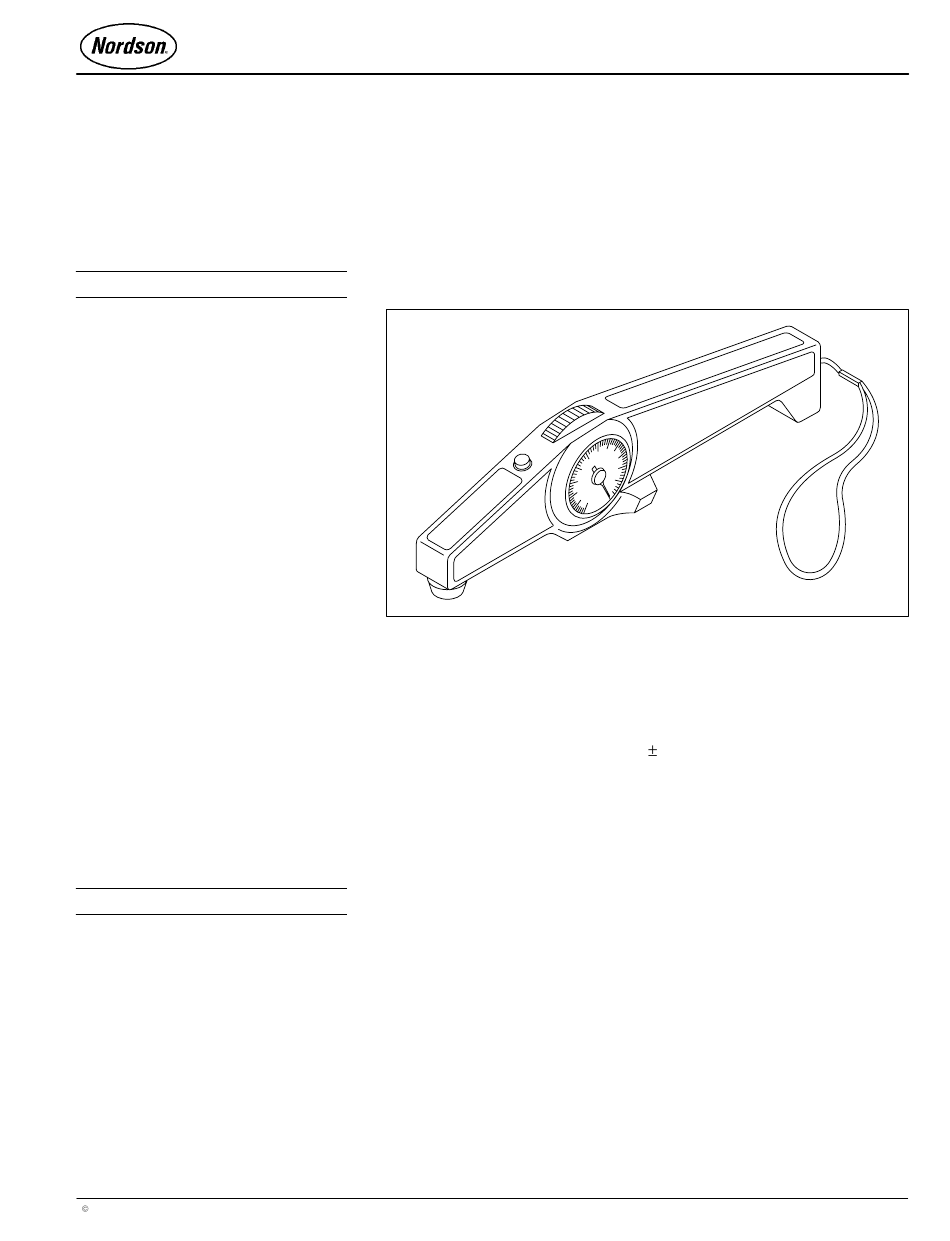

Fig. 1 Magnetic dry film thickness gauge
The Nordson Magnetic Dry Film Thickness Gauge measures film
thickness by indicating the relative attractive force exerted on a
permanent magnet acting through non-magnetic dry coatings on a steel
substrate. The gauge is accurate to 5 % within ranges of 0–80 mils or
0–500 microns.
The gauge is equipped with a carrying strap and is shipped with a
protective leather carrying case.
NOTE: Make sure the film is dry. A slightly sticky film will give a
false reading.
NOTE: Surface to be measured must be free from dirt, oil, or grease.
1. Turn the gauge scale wheel to its maximum setting.
2. Place the gauge on a dry film so that the nose grommet and (if
possible) the enlarged area of the gauge body rest firmly against the
film to be measured.
108 627B
Issued 5/95
Instruction Sheet
P/N 108 627B
1503001A
Manual 15-3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 108 627B and is the answer not in the manual?

Questions and answers

Summary of Contents for Nordson 108 627B

  • Page 1 1. Description 1503001A Fig. 1 Magnetic dry film thickness gauge The Nordson Magnetic Dry Film Thickness Gauge measures film thickness by indicating the relative attractive force exerted on a permanent magnet acting through non-magnetic dry coatings on a steel substrate. The gauge is accurate to 5 % within ranges of 0–80 mils or 0–500 microns.
  • Page 2 NOTE: Do not attempt to calibrate your film thickness gauge. Consult a qualified Nordson representative for calibration assistance. The Nordson Magnetic Dry Film Thickness Gauge requires no calibration under normal circumstances. If you require calibration instructions, please contact your Nordson Corporation Representative.
  • Page 3: Specifications

    2 in (5.08 cm) 5. Specifications Length: in (21.59 cm) Weight: 6 oz (171.6 g) Original copyright date 1991. Nordson and the Nordson logo registered trademarks of Nordson Corporation. 1995 Nordson Corporation 108 627B Manual 15-3 All rights reserved Issued 5/95...
  • Page 4 Magnetic Dry Film Thickness Gauge Manual 15-3 108 627B 1995 Nordson Corporation All rights reserved Issued 5/95...
