Global Industrial 293118 Owner's Manual

High capacity air conditioner
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Owner's Manual
Please read and save these instructions. Read carefully before attempting to assemble, install, oper-
ate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions
could result in personal injury and / or property damage! Retain instructions for future reference.
Descripti on
Global industrial Portable Air Conditi oners are specialized for
"SPOT COOLING" where central cooling is impracti cal.
Global industrial air conditi oners can also be used in enclosed
areas just like conventi onal air conditi oners. Simple digital con-
troller and self-diagnosti c functi ons allow users to easily operate
the unit. Built-in Caster wheels enable users to move the
unit without any hassle. The unit can be installed in 5 minutes
and does not require any extra materials or certi fi ed technician
for installati on.
Global industrial Portable Air Conditi oner, anywhere, every-
where. Plug-and-Go!
Unpacking
Aft er unpacking the unit, carefully inspect unit for any damage that may have occurred during transit.
Check for any loose, missing, or damaged parts.
Specifi cati ons
Power Supply
Model No.
(Phase-V-Hz)
293118
1Phases - 220V - 60Hz
Weight (Net / Gross)
Model No.
293118
(305/330kg)
TM
Owner's Manual
Lbs(kg)
672/728lbs.
64~113
High Capacity
TM
Air Conditioner
(For Indoor & Outdoor)
Cooling Capacity
(Btu/h)
60000
Operati ng Ambient
Temperature Range
(18~45
)
°F
°C
1
293118

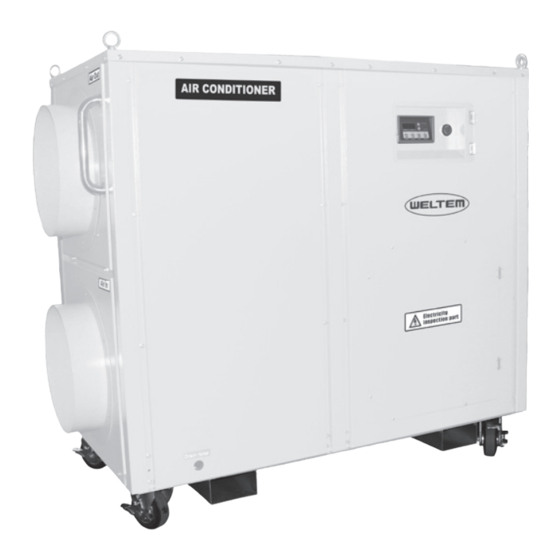

Figure 1
Power Consumpti on
Rated Current
(Watt s)
6.5kW
Dimensions
W x D x H - in. (mm)
29.5 x 62.1 x 58.1
(750 x 1578 x 1478 )
293118
293118
(Amps)
30.2A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 293118 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Global Industrial 293118

Summary of Contents for Global Industrial 293118

  • Page 1 Global industrial Portable Air Conditi oners are specialized for “SPOT COOLING” where central cooling is impracti cal. Global industrial air conditi oners can also be used in enclosed areas just like conventi onal air conditi oners. Simple digital con- troller and self-diagnosti c functi ons allow users to easily operate the unit.

  • Page 2: General Safety Information

    Owner’s Manual 293118 Specifications (Continued) Evaporator(Cool) Air Flow Model No. Refrigerant Type / oz(g) (CFM) For a compressor: 293118 1998 R-410, 56.4oz (1600g) Total: 102.8oz (3200g) Compressor overload protector, Anti-freezing thermister, Automatic restart (Power interruption), Safety Devices Compressor time delay program, High pressure...
  • Page 3 Owner’s Manual 293118 DO NOT operate the unit in explosive or flammable environments. 14. DO NOT unplug to turn off the unit. Always use the power switch to start and to stop the unit. 15. Always turn off the unit and unplug it before cleaning, moving or performing maintenance.
  • Page 4 Owner’s Manual 293118 Assembly (WPC-18000) COMPONENT PARTS Controls Hot Air Exhaust Emergency Stop Figure 3 Handle Controls Electrical Panel Top Cover I BOLT Cold Air Exhaust Filter Cold Air Inlet Filter Condensate outlet Cold Air Inlet Air Inlet Figure 2...

  • Page 5: Duct Connections

    Owner’s Manual 293118 DUCT CONNECTIONS Cool Air Duct (OUT) connection The Cool Air Ducts (OUT) are labeled "AIR OUT". The diameter of the duct is 400Ø. Connect the flexible air duct as following 1. Attach a flexible duct to the duct collar. Use a clamp or any appropriate apparatus around the collar to prevent any air leakage.

  • Page 6: Installation

    Owner’s Manual 293118 Installation WARNINGS REGARDING PROPER LOCATION FOR INSTALLATION Do not use the unit in explosive environments or in areas where flammable gas leakage may occur. Do not use the unit in areas where it will be exposed to rain or water.

  • Page 7: Operation

    Owner’s Manual 293118 Operation CONTROL PANEL Figure 10 1. POWER BUTTON : Turns on/off the unit when the button is pressed for 1 second. 2. BLOWER BUTTON : Adjusts the fan speed from (Low) to (High) when the button is pressed for 1 second.
  • Page 8 Owner’s Manual 293118 Operation CONTROL PANEL 7. CURRENT TEMP : Displays Current temperature NOTE: Canadian version shows the temperature in Celsius. 8. TARGET TEMP : Displays target temperature OFF-TIMER : Press BLOWER Button and SPOT/COOL Button simultaneously for 2 seconds to set off-timer.

  • Page 9: Maintenance

    Owner’s Manual 293118 Maintenance FILTER CLEANING (See Figures 11 and 12) 1. Unscrew 6 bolts on the front filter guard. 2. Slide filter up and use a vacuum cleaner to remove the dust from the filter. 3. If the filter is heavily covered with dust and dirt, use warm water and mild soap or neutral detergent to wash the filter.

  • Page 10: Self Diagnostic Codes

    Owner’s Manual 293118 Maintenance (Continued) – To ensure your product is covered by warranty, the complete faulty product along with your original purchase receipt must be provided at the place of purchase. Product Portable Air Conditioner Customer: Please read and keep this Model No.
  • Page 11 Owner’s Manual 293118 NOTE: The alarm code will be displayed on CURRENT TEMP display SELF-DIAGNOSTIC ALARM CODES Alarm Display Problem Cause Solutions • Ambient • Do not use the air temperature is conditioner if ambient Abnormal too low temperature is below temperature •...

  • Page 12: Wiring Diagram

    Owner’s Manual 293118 Wiring Diagram PS (HP) Figure 14 - Circuit Wiring Diagram (WPC-18000)

  • Page 13: Troubleshooting

    Owner’s Manual 293118 TROUBLESHOOTING Symptom Possible Cause(s) Solutions 1. Check the power supply 1. Reset the circuit breaker and restart the unit Unit does not start. 2. Check whether the 2. Connect power cord power cord is connected 1. The filter is dirty and air 1.
  • Page 14 Owner’s Manual 293118...
  • Page 15 Owner’s Manual 293118...
  • Page 16 While attempts are made to assure that Global industrial products comply with such codes, Global industrial cannot guarantee compliance, and cannot be responsible for how the product is installed or used. Before purchase and use of a product, review the product applications, and all applicable national and local codes and regulations, and be sure that the product, installation, and use will comply with them.
