Global Industrial 604151 Owner's Manual

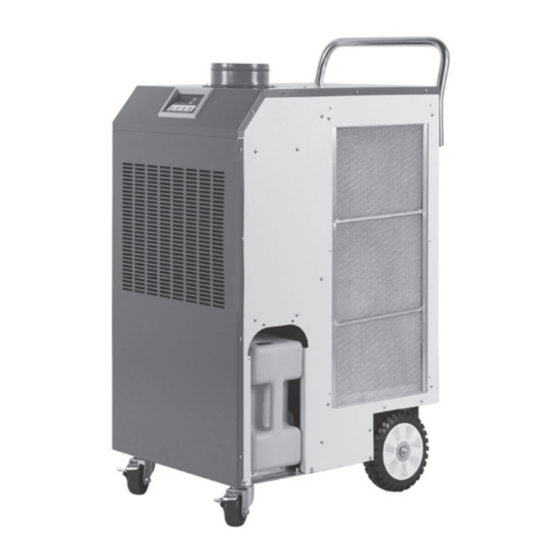

Outdoor rated portable air conditioner, 1.2 tons, 13,700 btu, with ducting
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Owner's Manual
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or
maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions could
result in personal injury and / or property damage! Retain instructions for future reference.
Descripi on
The Global Industrial Portable Air Conditi oner features spot cooling for
large areas where cooling of the enti re area is not practi cal. A
dedicated spot cooling thermostat controls the unit in this applicati on.
These air conditi oners can also be used in smaller areas for room
cooling.
A control panel provides ease of use and contains a self-diagnosti c
functi on and display, showing operati ng modes, room and set
temperatures, and faults.
If an abnormal operati on occurs, a visual display of the fault is shown.
Caster wheels are included for easy portability. Suitable applicati ons
include: a factory or work place, industrial kitchen, computer room,
emergency cooling, outdoor event, etc.
Unpacking
Aft er unpacking the unit, carefully inspect unit for any damage that may have occurred during
transit. Check for any loose, missing, or damaged parts.
Specifi cati ons
Model No.
Power Supply Ph-V-Hz
604151
Single Phase, 115V, 60Hz
Model No.
604151
Model No.
604151
TM
Nema Plug
5-20P
Weight (Net /
Gross) Lbs
202/253
Outdoor Rated Portable
TM
Air Conditioner, 1.2 Tons,
13,700 BTU, with Ducting
Cooling Capacity
Power Con-
Btu/h
sumpti on W
12,200
Power Cord
Power Cord
Gauge AWG
12
Condensate tank
No. of Cool Air
Gallons(Liters)
3.96 (15)
1
Model 604151
604151
Figure 1
Rated Cur-
rent Amps
1700
15
Dimensions
Length ft
W x H x D - in.
10
20.4 x 40.9x 26.3
Ambient temperature
Outlets Pcs
range °F( °C)
2
41~113 (5~45)
EER Btu/
Wh
7.17

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 604151 and is the answer not in the manual?

Questions and answers

Related Manuals for Global Industrial 604151

Summary of Contents for Global Industrial 604151

  • Page 1 / or property damage! Retain instructions for future reference. Descripi on The Global Industrial Portable Air Conditi oner features spot cooling for large areas where cooling of the enti re area is not practi cal. A dedicated spot cooling thermostat controls the unit in this applicati on.

  • Page 2: General Safety Information

    Owner’s Manual 604151 Specifications (Continued) Setting temperature Setting temperature Model No. (Room cool mode) °F( °C) (Spot cool mode) °F( °C) 604151 64~86 (18~30) 32~86 (0~30) Application Area Refrigerant Design Pressure - Model No. (Room cool mode) ft²(m²) Type / oz(g)
  • Page 3 Owner’s Manual 604151 DO NOT use the unit in wet environments, such as a laundry room, to avoid the risk of electrical shock. 10. DO NOT place any foreign objects on the unit. 11. DO NOT operate the unit with wet or damp hands.

  • Page 4: Component Parts

    Owner’s Manual 604151 Assembly (604151) COMPONENT PARTS Handle Cool air outlet Display / Control board Exhaust flange Condenser / filter Evaporator / filter Electrical access panel Guide bar for condensate water tank Power cord holder Condensate water tank (Water level is Caster sensed, and the unit opera�on is stopped...

  • Page 5: Installation

    NOTE: Make sure the AC outlet is free of dirt, dust, oil, water, or any other foreign material. The unit is equipped with an approved NEMA plug configuration (604151: 5-20P) . The appro- priate outlet must be used for each plug type.

  • Page 6: Operation

    Owner’s Manual 604151 Operation CONTROL PANEL Figure 8 1. POWER BUTTON: Activates unit when POWER BUTTON is pressed (Fan starts on high speed). If power button is pressed during operation, unit stops. 2. BLOWER BUTTON: Changes fan speed from (Low) to (High) when pressed.

  • Page 7: Maintenance

    Owner’s Manual 604151 Maintenance FILTER CLEANING (See Figures 9 and 10) There are two filters in the unit. The evaporator filter is located at the front of the unit. The condenser filter is located at the side of the unit.

  • Page 8: Spring Replacement

    Owner’s Manual 604151 Maintenance (Continued) SPRING REPLACEMENT (See Figure 11) There are two springs on the rear of condensate water tank guide. 1. Release the screw on the spring hook. 2. Take off the spring hook, and then pull out the opposite spring hook from hole in the condensate water tank guide.
  • Page 9 Owner’s Manual 604151 SELF-DIAGNOSTIC ALARM CODES Alarm Problem Cause Correc ve Ac on Display Indoor heat exchanger Do not use the air condi oner Frost preven on temperature too low if ambient temperature is sensor and TH3 temperature sensor lower than 18°C (64°F)

  • Page 10: Wiring Diagram

    Cond Hotgas Sol Valve Comp Relay COMP' Figure 12 - Circuit Wiring Diagram (604151) 1. 재질 : 은무데드롱 25미크론 2. 인쇄방법: 씨링인쇄 3. 인쇄색상: 흑색 1도 4. 표면처리: 라미네이팅(OPP코팅) 5. 인쇄기준 : 도면 및 설계 제공 필름 6 외곽의 치수선(붉은선)은 인쇄후 절단선임.

  • Page 11: Troubleshooting Chart

    Owner’s Manual 604151 Troubleshooting chart Symptom Possible Cause(s) Corrective Action High water level in Water leakage Remove blockage from drain hose condensate tank The unit doesn’t work 1. Check the power supply 1. Reset the circuit breaker and to verify that power is...
  • Page 12 While attempts are made to assure that Global industrial products comply with such codes, Global industrial cannot guarantee compliance, and cannot be responsible for how the product is installed or used. Before purchase and use of a product, review the product applications, and all applicable national and local codes and regulations, and be sure that the product, installation, and use will comply with them.
