the MSA Fire Service utility package.
The Fire Service utility package is required to access the options on the EVOLUTION 6000 TIC (which does not have an on-
screen menu). Refer to the operating instructions that come with the Fire Service utility package for information on available
options and how to use the package. The Fire Service utility package is available as a free download from
www.MSASafety.com and with the product CD included with the camera.
The on-screen configuration menu provides a means to change the following:
• Digital temperature target (°F or °C) (Spotmeter)
• Compass configuration and calibration (EVOLUTION 6000+ TIC and EVOLUTION 6000X TIC)
• Display brightness
• Range finder units (feet or meters) if optional range finder is installed
• Video Record ON / OFF (EVOLUTION 6000X TIC only).
5.2

Accessing On-screen Configuration Menu

1. Turn the camera ON and ensure it is in the NFPA Basic mode.
2. Turn the camera upside down.
3. Simultaneously push and hold the ZOOM and PALETTE buttons for three seconds until the On-screen Setup menu
appears.
4. Release the ZOOM and PALETTE buttons.
5. Return camera to the upright position.
The Config menu displays.

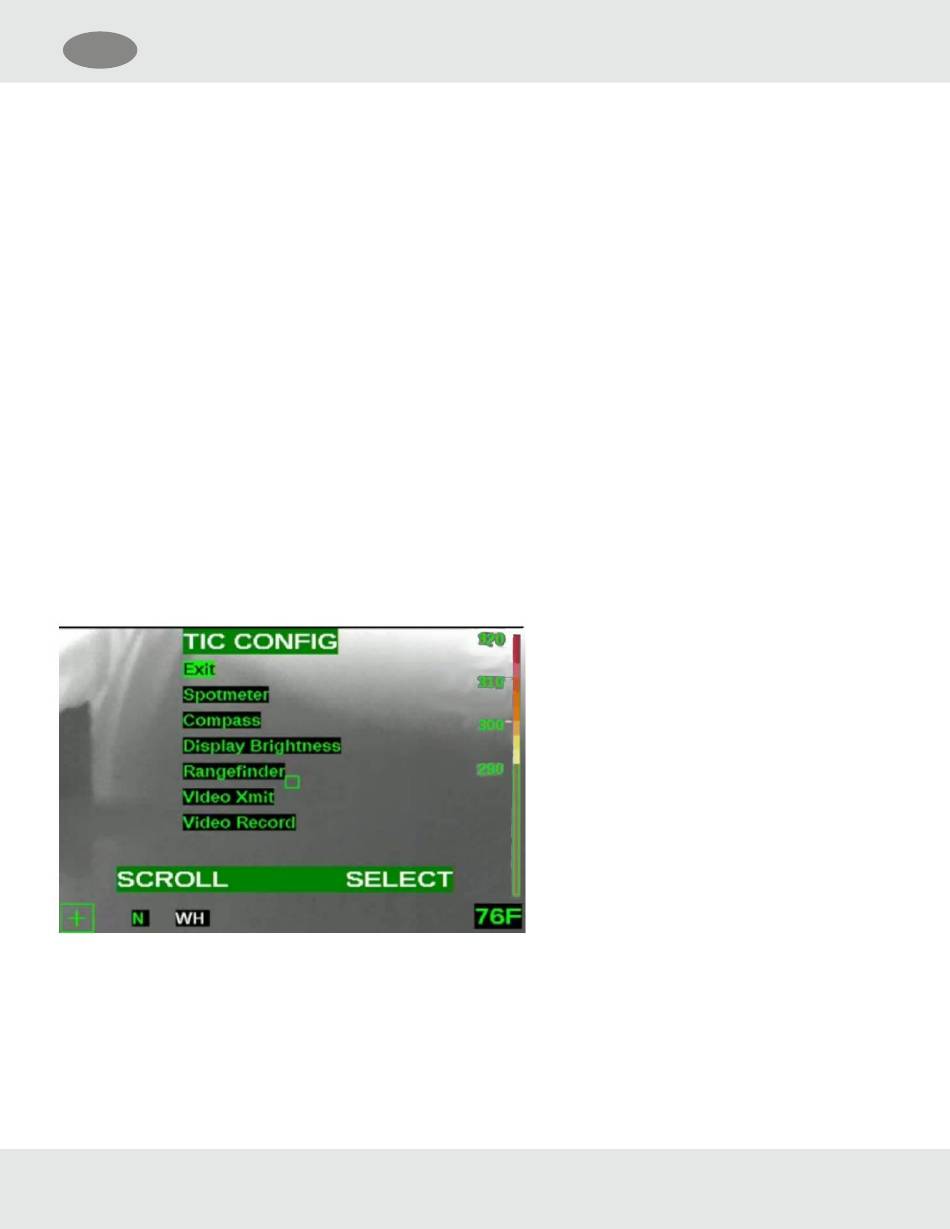

Figure 15 Configuration menu (EVOLUTION 6000+ TIC and 6000X TIC only)
25 Evolution 6000 Thermal Imaging Camera
5 Camera Setup
