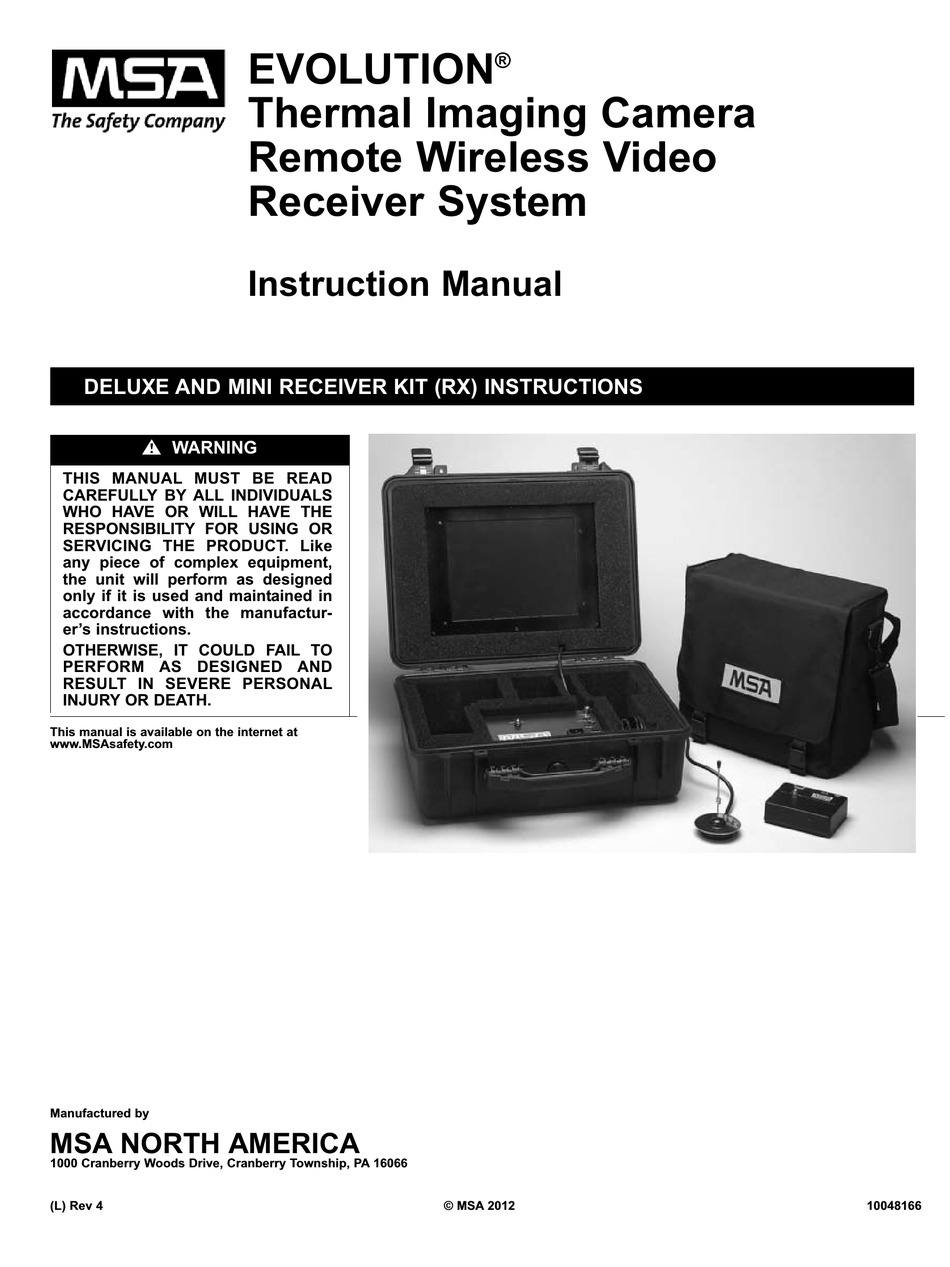

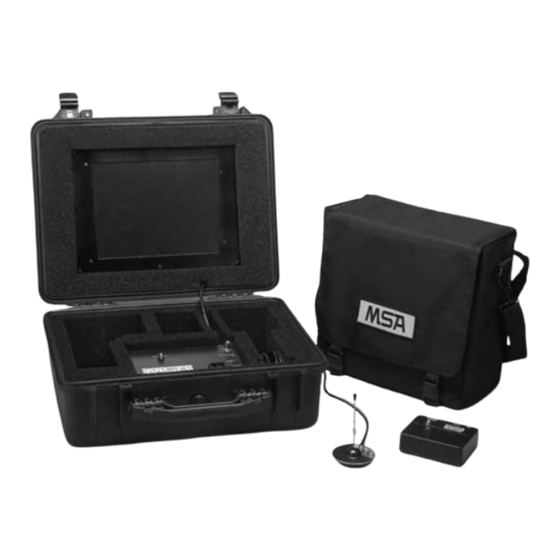

DELUXE AND MINI RECEIVER KIT (RX) INSTRUCTIONS
" WARNING
THIS MANUAL MUST BE READ
CAREFULLY BY ALL INDIVIDUALS
WHO HAVE OR WILL HAVE THE
RESPONSIBILITY FOR USING OR
SERVICING THE PRODUCT. Like
any piece of complex equipment,
the unit will perform as designed
only if it is used and maintained in
accordance with the manufactur-
er's instructions.
OTHERWISE, IT COULD FAIL TO
PERFORM AS DESIGNED AND
RESULT IN SEVERE PERSONAL
INJURY OR DEATH.
This manual is available on the internet at
www.MSAsafety.com
Manufactured by
MSA NORTH AMERICA
1000 Cranberry Woods Drive, Cranberry Township, PA 16066
(L) Rev 4
EVOLUTION
Thermal Imaging Camera
Remote Wireless Video
Receiver System
Instruction Manual
®
© MSA 2012
10048166

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVOLUTION and is the answer not in the manual?

Questions and answers

Related Manuals for MSA EVOLUTION

Summary of Contents for MSA EVOLUTION

  • Page 1 PERFORM AS DESIGNED AND RESULT IN SEVERE PERSONAL INJURY OR DEATH. This manual is available on the internet at www.MSAsafety.com Manufactured by MSA NORTH AMERICA 1000 Cranberry Woods Drive, Cranberry Township, PA 16066 (L) Rev 4 © MSA 2012 10048166...

  • Page 2: Table Of Contents

    Table of Contents INTRODUCTION ..........1 "...

  • Page 3: Introduction

    BACKGROUND AND OVERVIEW " CAUTION This equipment has been tested and MSA’s Remote Wireless Video Receiver Kit is the found to comply with the limits for a complement to the transmitter unit for Evolution Class A digital device, pursuant to Part Thermal Imaging Cameras (TICs).

  • Page 4: Applications

    Evolution 5000 Thermal Imaging Cameras (TICs) to remotely display the images generated The channel settings on this receiver have been by the Evolution TIC. Many applications exist for a set to correspond with the Evolution 5000 external remote transmission and reception system, transmitter.

  • Page 5: Deluxe Receiver Kit

    Verify the same image appears on the TIC performance. Turn the receiver kit “ON” and the LCD of the receiver unit. • Turn ON any of the Evolution 3000, 4000 or • When the unit is turned ON, a green LED 5000 series transmitters mentioned previously.

  • Page 6: External Output Connections

    EXTERNAL OUTPUT CONNECTIONS DISPLAY The receiver unit features a video output jack. The The 15.4 inch display is an LCD type unit which jack is a BNC-style connector that can be used to includes brightness and contrast controls in the connect the receiver output to video monitors or panel at the bottom of the screen.

  • Page 7: Mini Receiver Kit

    Figure 5. synchronized to the same transmitting frequency. Also, verify that the Evolution TIC Transmitter has fully charged batteries. Low battery power can result in transmission power loss, and degrade the resulting image seen with the receiver kit.

  • Page 8: Maintenance And Troubleshooting

    12 VDC vehicle power supply. 2. Before returning the product, decontaminate and clean your receiver kit to remove any If the Evolution TIC unit is not transmitting, the hazardous materials that may have settled on normal image on the display should be solid blue.
