Summary of Contents for Techalogic XV-1

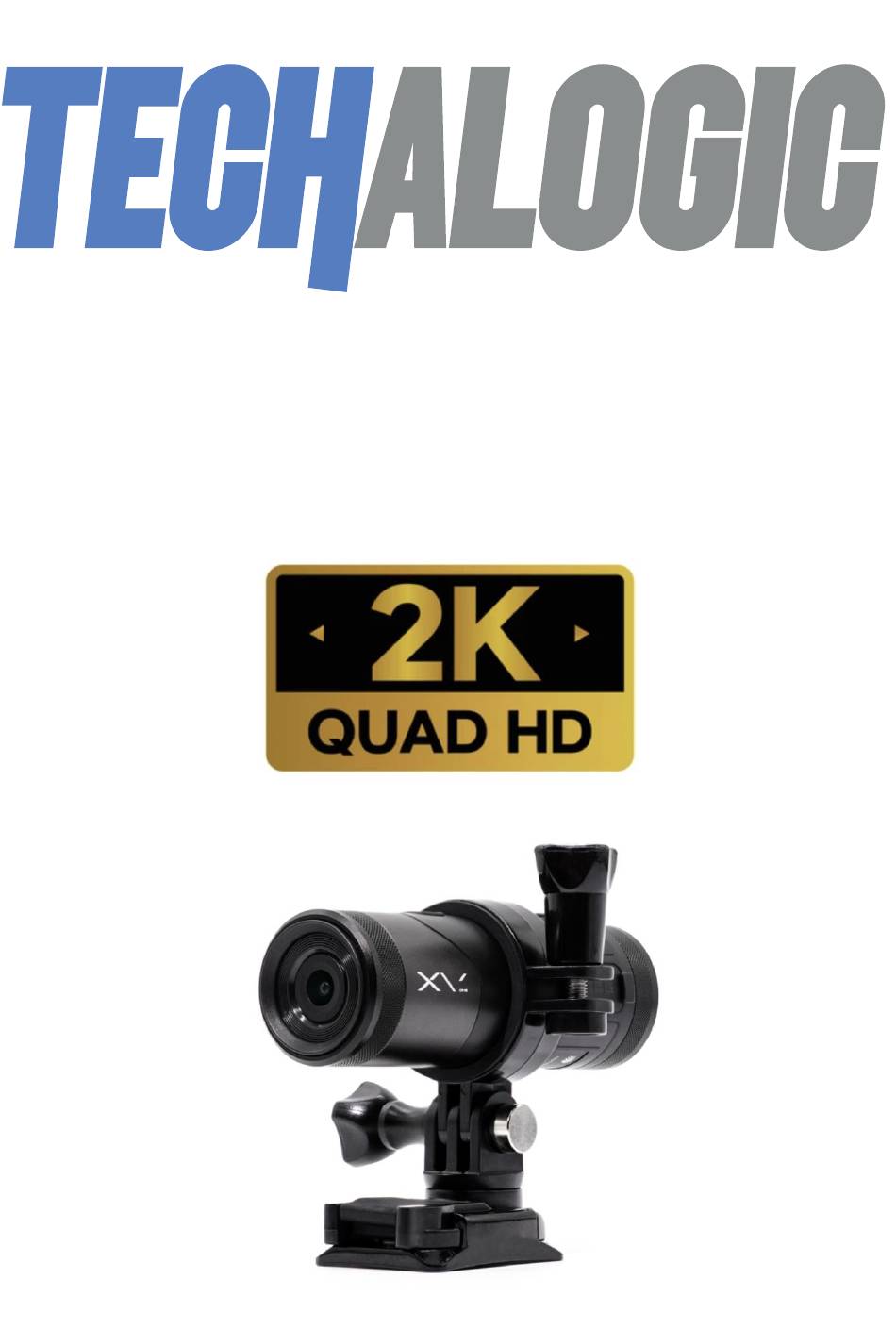

- Page 1 XV-1 User’s Manual Helmet Camera...
-
Page 2: Product Specification
V1.0 Product Specification Sensor SONY IMX307 Aperture F1.8 Lens Angle Front: 140° Photo JPEG Video Resolution QHD 2560 X 1440P 30fps FHD 1920 X 1080P 60fps Waterproof IP66 Battery 1500 mAh Note：3-4 hours working time at full charge. Size / Weight D32.8 x 100mm / 98.5g Memory card Micro Sd Card Max. -
Page 3: Product Overview
* Optional wireless remote to lock the critical file and take photos Product Overview ❶ Power button ❷ WIFI indicator (blue light) ❸ Recording button ❹ WIFI button ❺ Reset ❻ TF card slot ❼ USB charging port ❽ Internal MIC... -
Page 4: Operation
Key buttons commands 1. To power on / off: Press and hold the ❶power button for 3 seconds, and the camera will vibrate. 2. To start / stop recording: Short press the ❸recording button ONCE. 3. To turn the WIFI on / off: (First, stop recording.) Short press the ❹WIFI button TWICE. 4. - Page 5 Note: If the battery reaches 0%, the camera will automatically turn off. Intelligent Energy-Saving System 1. When the camera does not detect any motion for 3 minutes, it will automatically turn off. 2. When an external power supply is connected, the energy-saving system will be disabled. 3.
- Page 6 IMPORTANT: For 64GB / 128GB TF cards only format it by pressing the key button 5 times. Step 1 Step 2 Step 3 Step 4...
- Page 7 2. Using the APP: install the ‘Viidure’ and connect your phone's WIFI to XV-1's WIFI, then go to the APP's setting page and format the SD card. Step 1 Step 2...
- Page 8 Step 3 Using the Camera 1. Before use, make sure that the camera is fully charged, and the SD card is inserted. Note: The SD card must be formatted when using it with the camera for the first time. 2. Long press and hold the ❶power button 3 seconds to turn on the camera, and it will vibrate once.
- Page 9 4. Turn on the camera's WIFI by pressing the ❹WIFI button TWICE. The blue WIFI light will flash indicating that the camera's WIFI is turned on. If it is not connected to the phone's WIFI within 1 minute, the camera's WIFI will automatically turn off. If the camera is connected to the phone's WIFI, the blue light will remain solid (it will not be flashing).
- Page 10 3. Go to your phone’s setting page , click the camera's WIFI and enter the password to connect to it. The camera's WIFI name is XV-1+SSID NO. and the password is 12345678 Note. Please DON’T change the WIFI name nor the password to avoid connection errors.
-
Page 11: Common Questions
Extend Your Camera’s Battery Life The camera has a 3 to 4 hour battery life. This can easily be extended by attaching one of our Techalogic Power Bank(optional extra) via the micro USB lead(provided).. Common Questions Q1: I can’t use 64G or 128G on my camera. - Page 12 A: When you connect to WIFI, this will auto update, so you don’t need to set it manually. Thank you for choosing Techalogic If you have any questions regarding the operation of your camera, please don’t hesitate to contact us and...
