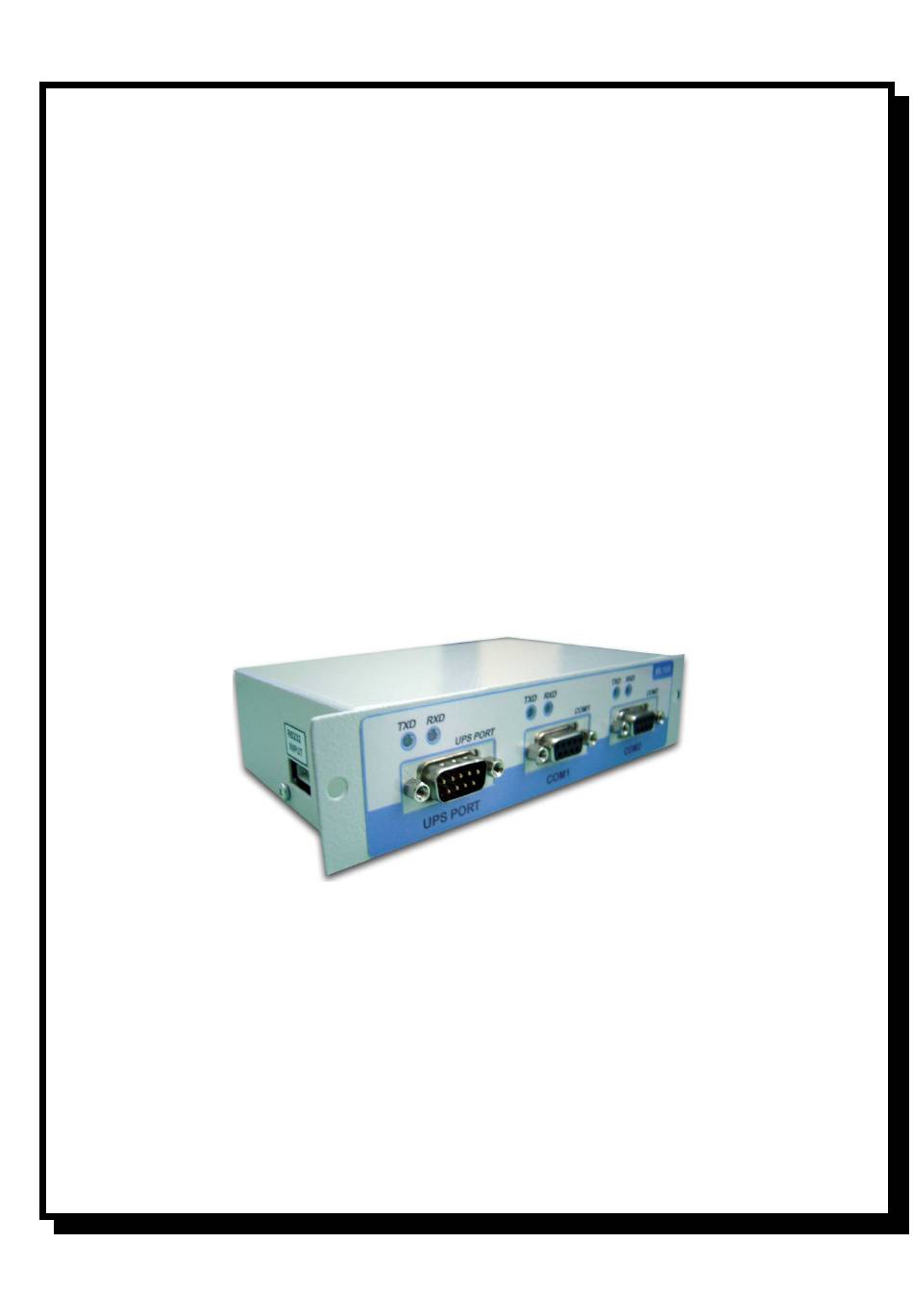

- Page 1 EXTERNAL UPS RS232 PORT MULTIPLEXER ML100EX USER MANUAL...

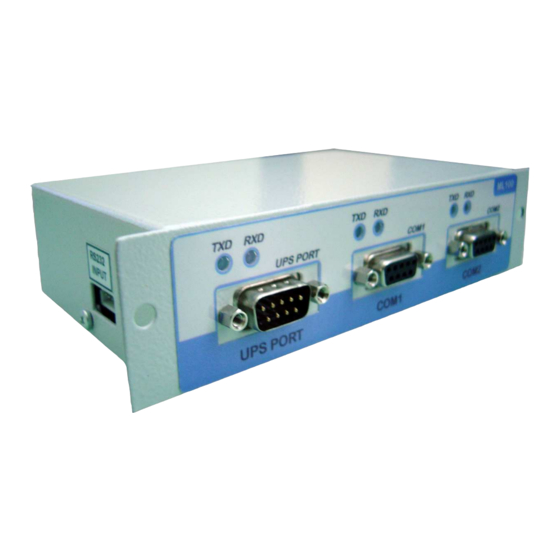

- Page 3 1. GENERAL Usually UPS devices has 1 serial communication port at some applications two serial connections to UPS needed at these case ,ML100 multiplexer unit duplicates the UPS RS232 port from 1 serial port to 2 serial ports. So the connection from remote panel to UPS and connection from PC to UPS is possible at the same time.
- Page 4 On each serial port socket 2 indicator lamps are located .These lamps shows the port status if port is receiving data from any device or UPS the RED lamp lits ,if port is transmitting data to UPS or any device the green lamp lits.
- Page 5 6. COMPATIBILITY TO DIFFERENT UPS MODELS ML100EX device supports all our UPS models there is no compatibility problem. 7. CONNECTOR PIN LAYOUT The UPS port connector This connector is a standart PC side RS232 connector . To connect UPS port to UPS device please use CC05 cable.
