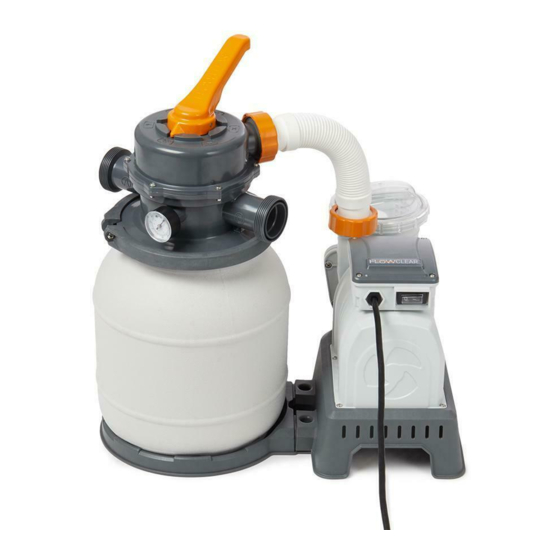

Bestway 58498E Owner's Manual

Sand filter
Hide thumbs Also See for 58498E:

Advertisement

Quick Links

Download this manual
58498E
Hmax 1.5 m
SAND FILTER
OWNER'S MANUAL
bestwaycorp.com/support
Visit Bestway YouTube channel
303021216266_58498E_14x21cm_1500gal 美国规砂滤器说明书-封面
TO THE STORE
QUESTIONS? PROBLEMS?
MISSING PARTS?
For FAQ, Manuals, Videos Or
Spare Parts, Please Visit
bestwaycorp.com/support
303021216266

Advertisement

loading
Need help?

Need help?

Do you have a question about the 58498E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bestway 58498E

Summary of Contents for Bestway 58498E

  • Page 1 58498E Hmax 1.5 m TO THE STORE QUESTIONS? PROBLEMS? MISSING PARTS? For FAQ, Manuals, Videos Or Spare Parts, Please Visit bestwaycorp.com/support SAND FILTER OWNER’S MANUAL bestwaycorp.com/support Visit Bestway YouTube channel 303021216266 303021216266_58498E_14x21cm_1500gal 美国规砂滤器说明书-封面...
  • Page 2 SAFETY INSTRUCTIONS WARNING IMPORTANT SAFETY INSTRUCTIONS When installing and using this electrical equipment, basic safety precautions should always be followed, including the following: READ AND FOLLOW ALL INSTRUCTIONS WARNING TO REDUCE THE RISK OF INJURY - do not permit children to use this product unless they are closely supervised at all times. WARNING RISK OF ELECTRIC SHOCK - Connect only to a grounding type receptacle.

  • Page 3: Risk Of Electrocution

    Please examine and verify all sand filter components are present before use. Notify Bestway at the customer service address listed on this manual for any damaged or missing parts at the time of purchase.
  • Page 4 WARNING: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

  • Page 5: Specifications

    SPECIFICATIONS Filter Diameter: 254 mm Effective Fiter Area: 0.05 m (0.54 ft Max. Operating Pressure: 0.83 Bar(12 PSI) Working sand filter pressure: <0.45 Bar(6.5 PSI) Max. Water Temperature: 35°C 254 mm Sand: Not included Sand Size: #20 silica sand,0.45-0.85 mm 480 mm Sand Capacity: Approximately 9 kg...
  • Page 6 Assembly (You will need a screwdriver.) 1. Carefully remove all components from 86 mm the package and check to ensure nothing is damaged. If equipment is damaged, immediately notify the retailer from where the equipment was purchased. 2. The sand filter should be placed on solid, level ground, preferably a concrete slab.
  • Page 7 MAX. MIN . Connect to the pool 303021216266_58498E_14x21cm_1500gal 美国规砂滤器说明书-英...
  • Page 8 Garden hose (not included) For Drain, Backwash, Rinse function P6680 303021216266_58498E_14x21cm_1500gal 美国规砂滤器说明书-英...
  • Page 9 WARNING: RISK OF ELECTRIC SHOCK. THE GFCI MUST BE TESTED BEFORE EACH USE. WARNING: DO NOT USE THE PUMP IF THE ABOVE TEST FAILS. Please contact your local Bestway Aftersales Service. OPERATION CONTROL VALVE OVERVIEW WARNING: To prevent equipment damage and possible injury, always switch off sand filter before changing the Control Valve function.
  • Page 10 pump is running can damage the Control Valve, which may cause personal injury or property damage. How to Use the Control Valve: Press down on the Control Valve handle and rotate to desired function. CONTROL VALVE FUNCTIONS The Control valve is used to select 6 different filter functions: Filter, Rinse, Circulate, Backwash, Closed and Drain.

  • Page 11: First Time Use Instructions

    NOTE: • Be sure all provisions for wastewater disposal meet applicable local, state or national codes. Do not discharge water where it will cause flooding or damage. • When the Control Valve is set to the Backwash, Rinse, or Drain position, water will discharge from Port D on the Control Valve.
  • Page 12 1. Now the sand filter is ready for use. Set the Control Valve to the Filter function. NOTE: To prevent the risk of electrical shock dry any excess water from yourself and the sand filter. 2. Switch on the sand filter to run it. NOTE: The sand filter has now started its filtering cycle.
  • Page 13 Cleaning the Strainer 1. Switch off the sand filter and set the Control Valve to the Closed function. 2. Close the connection valves. 3. Remove the Strainer Cover by unscrewing it. 4. Take out the Strainer, remove any debris. 5. Put the Strainer back into position. Ensure the hole in the strainer is aligned.

  • Page 14: Troubleshooting

    TROUBLESHOOTING Problems Probable Causes Solutions - Contact your local Bestway Aftersales Service point to Sand Filter does - GFCI broken get instructions not operate - Sand is too small - Recommend 0.45 mm to 0.85 mm #20 silica sand - Move the control valve from the...
  • Page 15 303021216266_58498E_14x21cm_1500gal 美国规砂滤器说明书-英...
  • Page 16 Bestway Central & South America Ltda, Salar Ascotan 1282, Parque Enea, Pudahuel, Santiago, Chile Distributed in Australia & New Zealand by Bestway Australia Pty Ltd, 98-104 Carnarvon Street, Silverwater, NSW 2128, Australia Tel: Australia: (+61) 29 0371 388; New Zealand: 0800 142 101 Exported by/Exporté...
