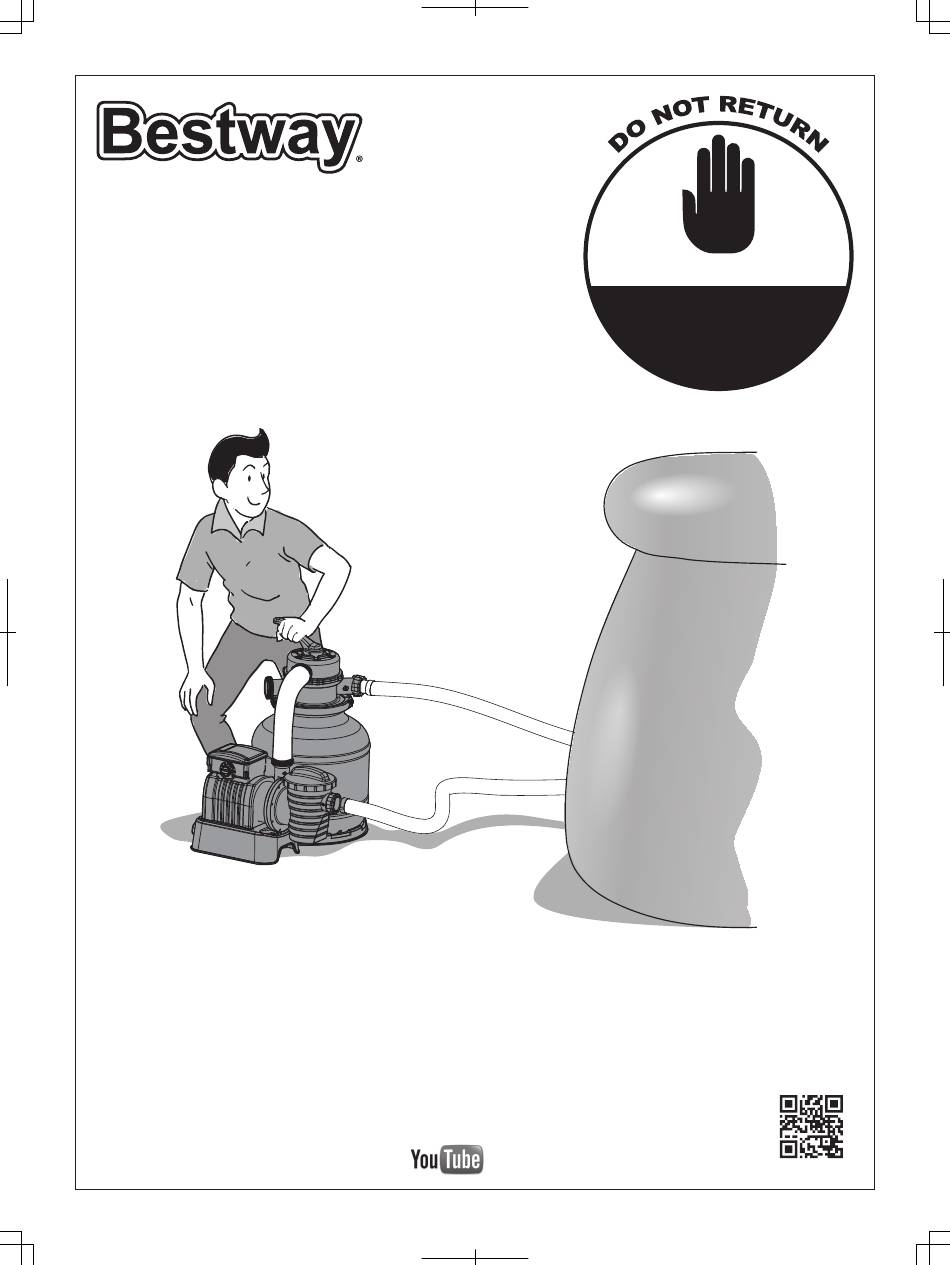

#58495
Hmax 1.5m
TO THE STORE
QUESTIONS? PROBLEMS?
MISSING PARTS?
For FAQ, Manuals Or
Spare Parts, Please Visit
www.bestwaycorp.com

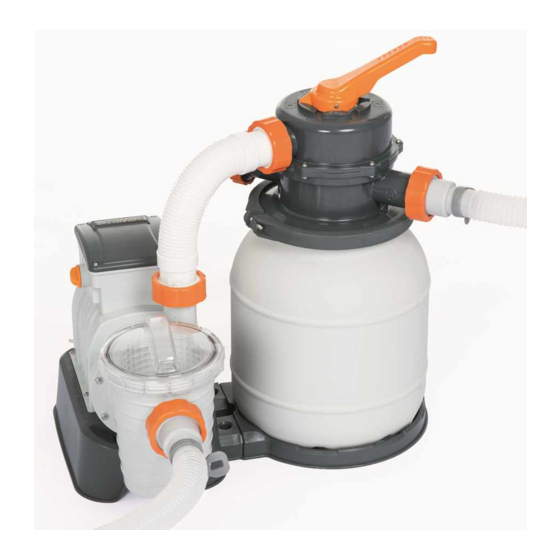

SAND FILTER
OWNER'S MANUAL
www.bestwaycorp.com
Visit Bestway YouTube channel
S-S-006165
S-S-006165/21.0x28.5cm (#58495AU 1000gal 澳规砂滤器说明书) JS-YF-2017-B-03642/英/封面

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 58495 and is the answer not in the manual?

Questions and answers

Summary of Contents for Bestway 58495

  • Page 1 #58495 Hmax 1.5m TO THE STORE QUESTIONS? PROBLEMS? MISSING PARTS? For FAQ, Manuals Or Spare Parts, Please Visit www.bestwaycorp.com SAND FILTER OWNER’S MANUAL www.bestwaycorp.com Visit Bestway YouTube channel S-S-006165 S-S-006165/21.0x28.5cm (#58495AU 1000gal 澳规砂滤器说明书) JS-YF-2017-B-03642/英/封面...
  • Page 2: Safety Instructions

    • Leave it unattended on holidays • Safekeeping the instruction. For reconstruction the pool set every time, please always refer to the instructions. • If instruction is missed, please contact with Bestway or search it in website: www.bestwaycorp.com S-S-006165/21.0x28.5cm (#58495AU 1000gal 澳规砂滤器说明书) JS-YF-2017-B-03642/英...
  • Page 3 • Please examine and verify all sand filter components are present before use. Notify Bestway at the customer service address listed on this manual for any damaged or missing parts at the time of purchase.
  • Page 4: Specifications

    SPECIFICATIONS Filter Diameter: 254mm Effective Fiter Area: 0.05m (0.54ft Max. Operating Pressure: 0.84Bar(12PSI) Working sand filter pressure: <0.45Bar(6.5PSI) Max. Water Temperature: 35°C 254mm Sand: Not included Sand Size: #20 silica sand,0.45-0.85mm 480mm Sand Capacity: Approximately 9kg PARTS REFERENCE OVERVIEW Before assembling the sand filter, take a few minutes to become familiar with all the sand filter parts. REF.NO SPARE PART NO.
  • Page 5 Assembly (You will need a screwdriver). 86mm 1. Carefully remove all components from the package and check to ensure nothing is damaged. If equipmentis damaged, immediately notify the retailer from where the equipment was purchased. 2. The sand filter should be placed on solid, level ground, preferably a concrete slab. Position the sand filterso the Ports and Control Valve are accessible for operation, servicing and winterizing.
  • Page 6 Garden hose (not included) For Drain, Backwash, Rinse function P6680 S-S-006165/21.0x28.5cm (#58495AU 1000gal 澳规砂滤器说明书) JS-YF-2017-B-03642/英...
  • Page 7: Operation

    STOP Before switching on, please read the manual carefully. OPERATION Timer 1. Plug into power source, adjust power switch to “ON” (-) position. The sand filter will begin working immediately. 2. Adjust power switch to “OFF” (0) position. The sand filter will stop working immediately. 3.
  • Page 8 Filter: Closed: This function is used to filter pool water This function stops water flowing and should be positioned here 99% of the time. between the sand filter and the pool. Water is pumped through the sand filter, where it is cleaned and returned to the pool.
  • Page 9: First Time Use Instructions

    NOTE: • Be sure all provisions for wastewater disposal meet applicable local, state or national codes. Do not discharge water where it will cause flooding or damage. • When the Control Valve is set to the Backwash, Rinse, or Drain position, water will discharge from Port D on the Control Valve. •...
  • Page 10: Troubleshooting

    Cleaning the Strainer 1. Switch off the sand filter and set the Control Valve to the Closed function. 2. Replace the Debris Screens with Stopper Plugs to prevent water from escaping. 3. Remove the Strainer Cover by unscrewing it. 4. Take out the Strainer, remove any debris. 5.
  • Page 11 S-S-006165/21.0x28.5cm (#58495AU 1000gal 澳规砂滤器说明书) JS-YF-2017-B-03642/英...
  • Page 12 Distributed in Latin America by/Distribué en Amérique latine par/Distribuido en Latinoamérica por/Distribuído na América Latina por Bestway Central & South America Ltda, Salar Ascotan 1282, Parque Enea, Pudahuel, Santiago, Chile Distributed in Australia & New Zealand by Bestway Australia Pty Ltd, 98-104 Carnarvon Street, Silverwater, NSW 2128, Australia www.bestwaycorp.com Made in China / Fabriqué...
